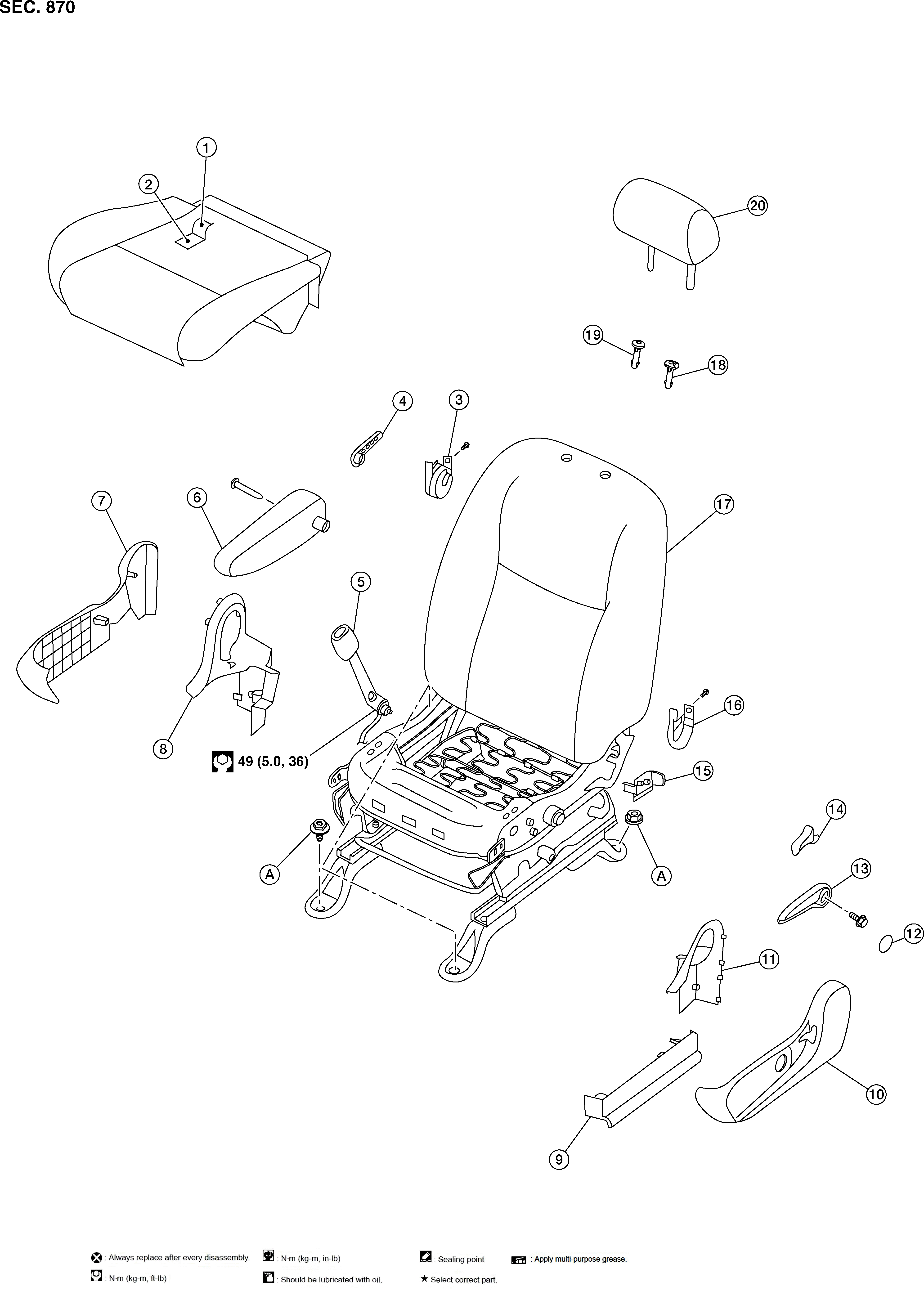

Exploded View
DRIVER SEAT
|
1. |
Seat cushion trim |
2. |
Seat cushion pad |
3. |
Recline mechanism inner cover (RH) |
|
4. |
Lumbar lever |
5. |
Seat belt buckle |
6. |
Armrest |
|
7. |
Seat cushion outer finisher (RH) |
8. |
Seat cushion inner finisher (RH) |
9. |
Slide finisher outer (LH) |
|
10. |
Seat cushion outer finisher (LH) |
11. |
Seat cushion inner finisher (LH) |
12. |
Lift lever finisher |
|
13. |
Lift lever |
14. |
Recline lever finisher |
15. |
Slide finisher inner (LH) |
|
16. |
Recline mechanism inner cover (LH) |
17. |
Seat frame assembly |
18. |
Headrest holder (locked) |
|
19. |
Headrest holder (free) |
20. |
Headrest |
A. |
Refer to INSTALLATION |
