Disassembly and Assembly: Disassembly

  1. Remove the EVAP canister control pressure sensor and O-ring.
    1. Release the pawls from the EVAP canister control pressure sensor.
    2. Pull the EVAP canister control pressure sensor and O-ring straight out from the EVAP canister.
  2. Remove the EVAP canister vent control valve and O-ring.

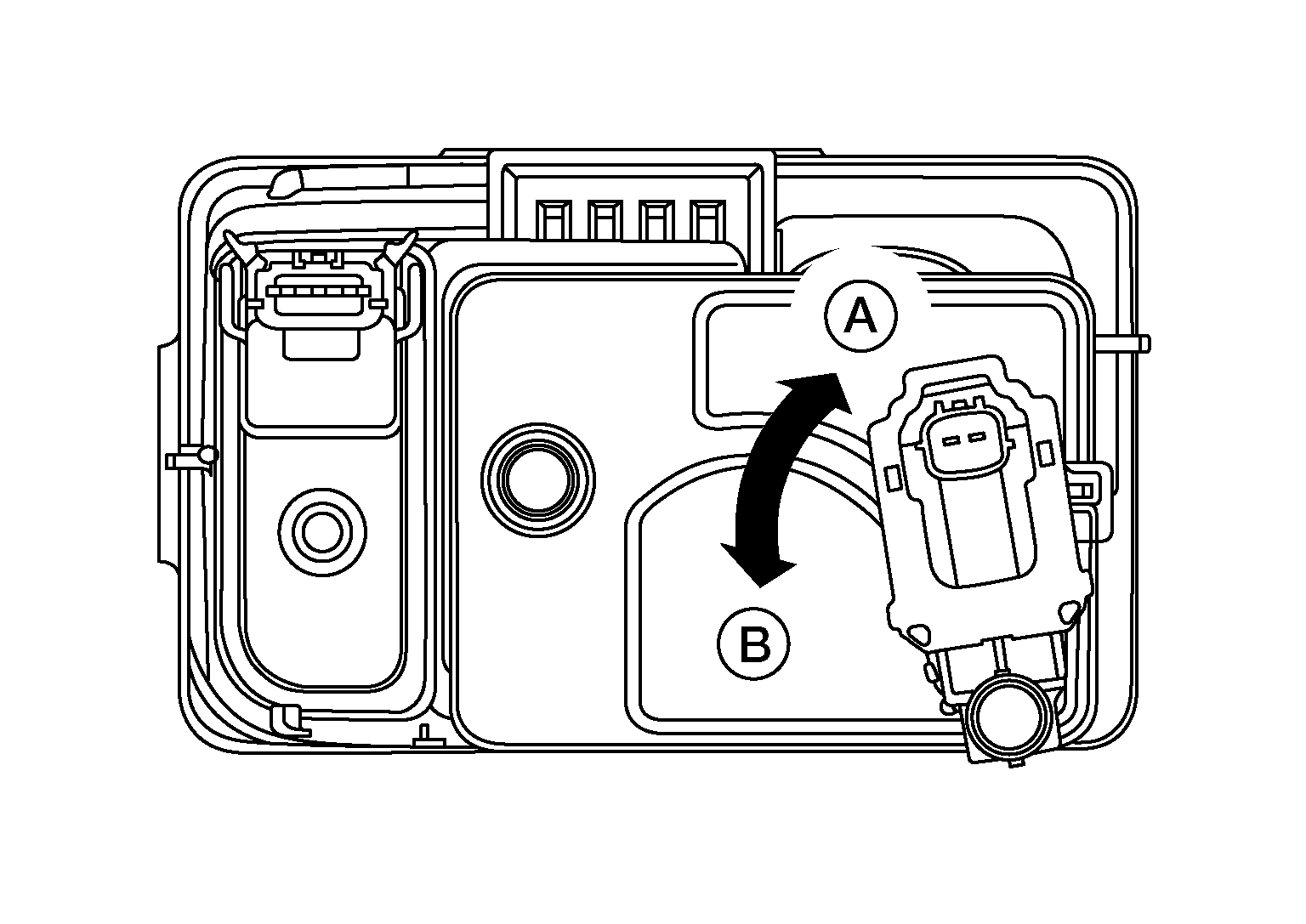

    1. Turn the EVAP canister vent control valve counterclockwise to unlock.
      GNSALBIA0040Z-040Courtesy of NISSAN NORTH AMERICA, INC.

      (A)

      : Lock

      (B)

      : Unlock
    2. Pull the EVAP canister vent control valve and O-ring straight out from the EVAP canister.
