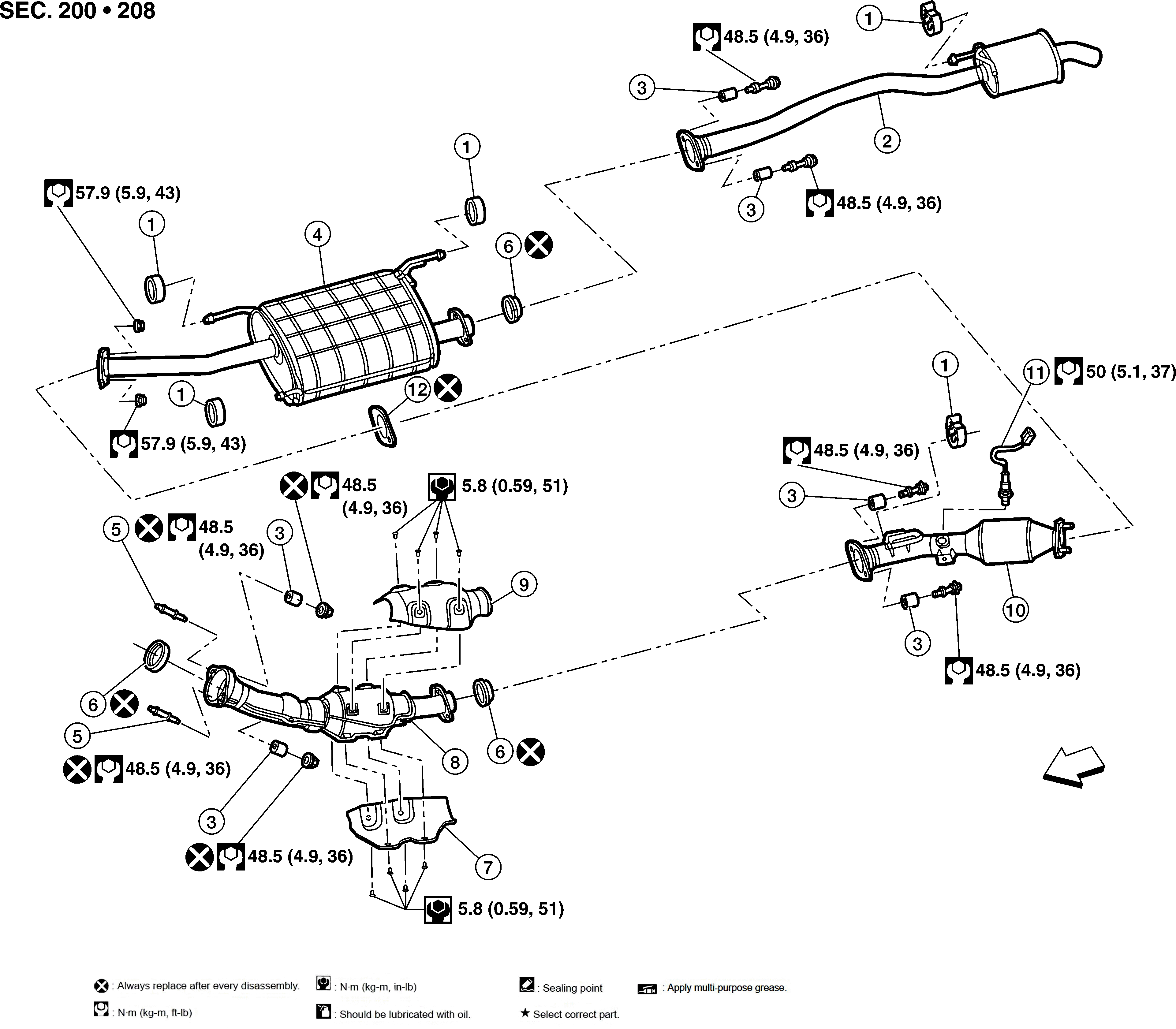

1.
Mounting rubber
2.
Rear muffler
3.
Spring
4.
Center muffler
5.
Stud bolt
6.
Seal bearing
7.
Catalyst shroud (lower)
8.
Front exhaust tube
9.
Catalyst shroud (upper)
10.
Intermediate exhaust tube
11.
Heated oxygen sensor 2
12.
Gasket
Front
