WASHER FLUID LEVEL SWITCH Connector End View (E68)

Connector Types: HS02FW

Connector Color: WHITE

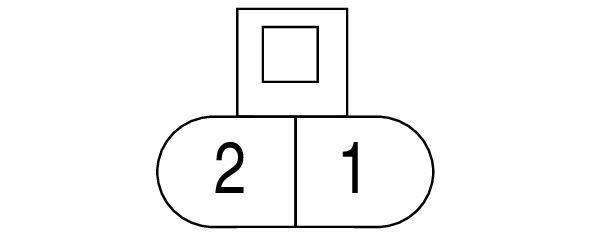

Fig 1: Terminal-side

GNSW95075

Courtesy of NISSAN NORTH AMERICA, INC.

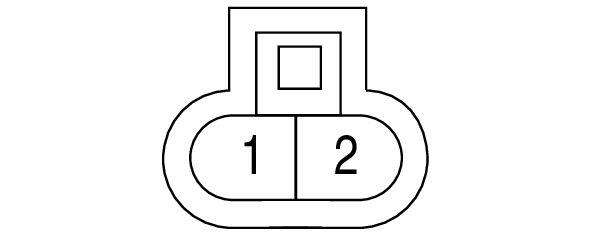

Fig 2: Harness-side

GNSW95074

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	GR	WASHER SW
2	B	GROUND

Circuit Diagram

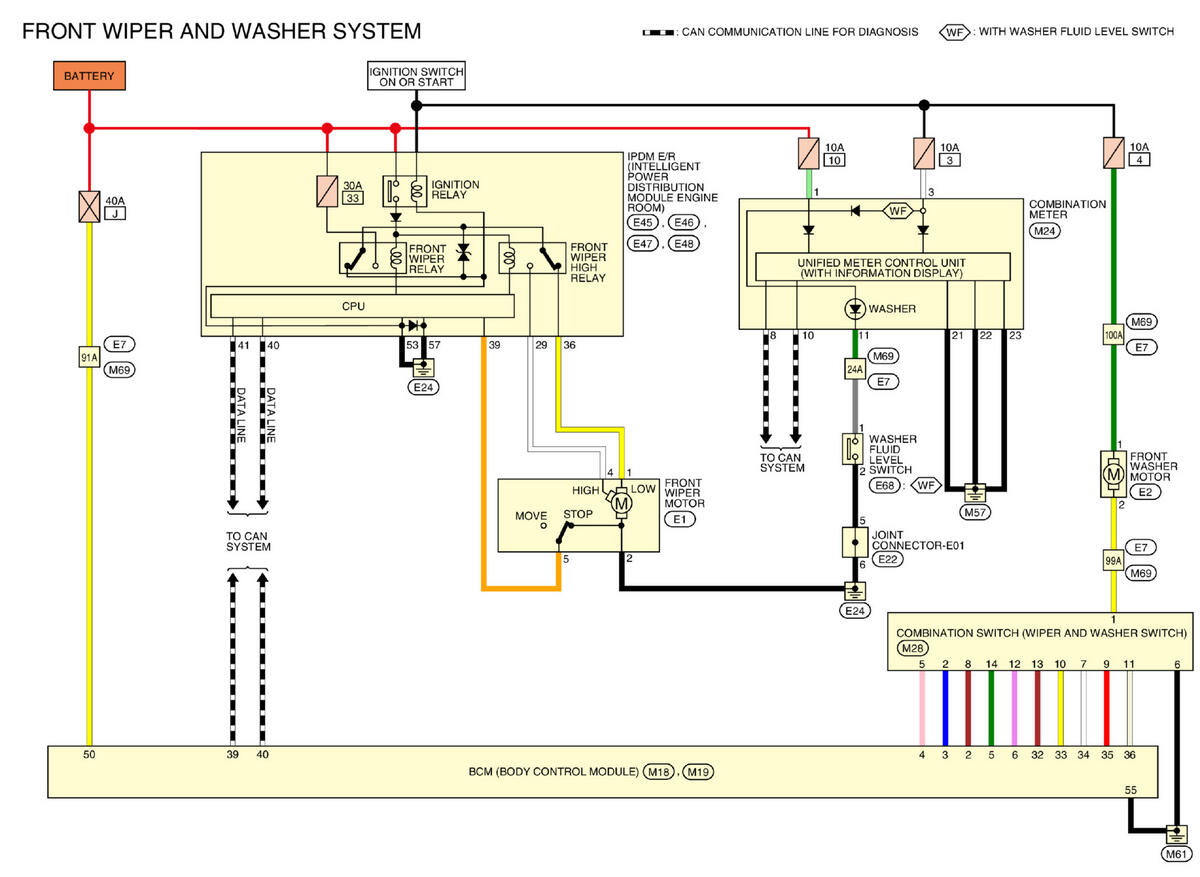

Fig 3: FRONT WIPER AND WASHER SYSTEM

GNSW94999

Courtesy of NISSAN NORTH AMERICA, INC.

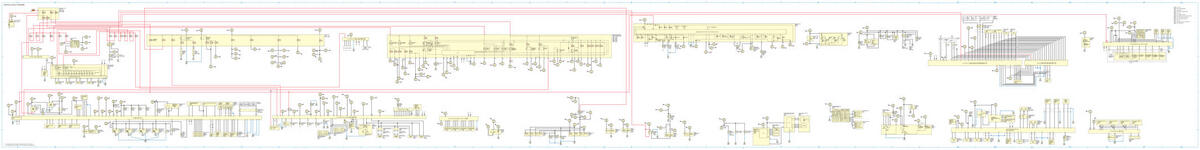

Fig 4: OVERALL CIRCUIT DIAGRAM

GNSW95012

Courtesy of NISSAN NORTH AMERICA, INC.

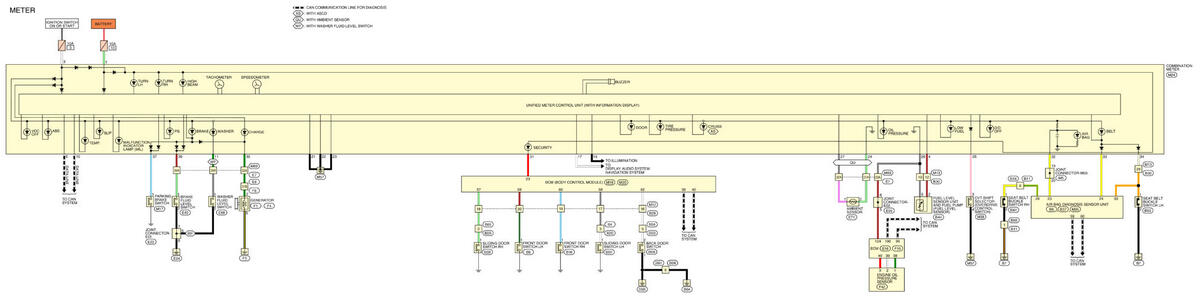

Fig 5: METER

GNSW95019

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

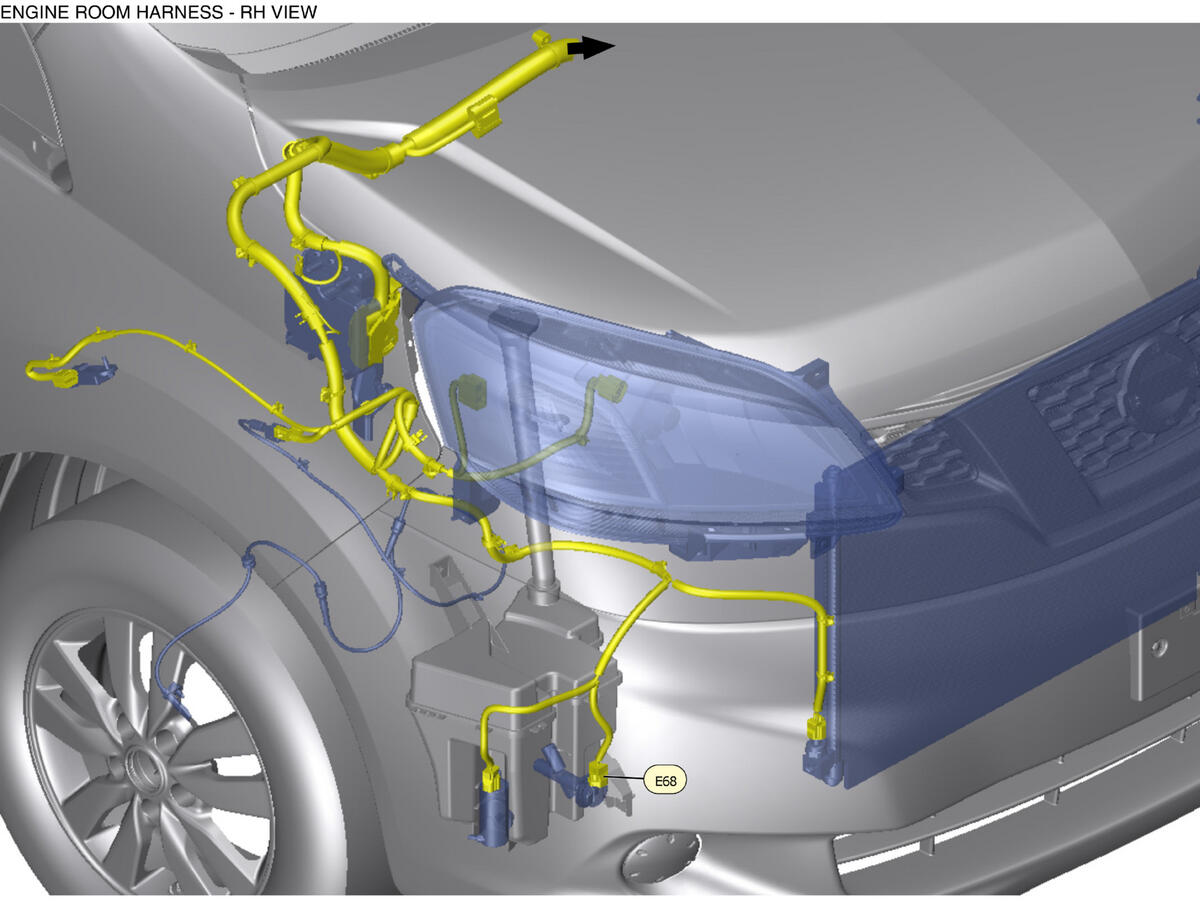

Fig 6: ENGINE ROOM HARNESS - RH VIEW

GNSW95379_LK_E068

Courtesy of NISSAN NORTH AMERICA, INC.
