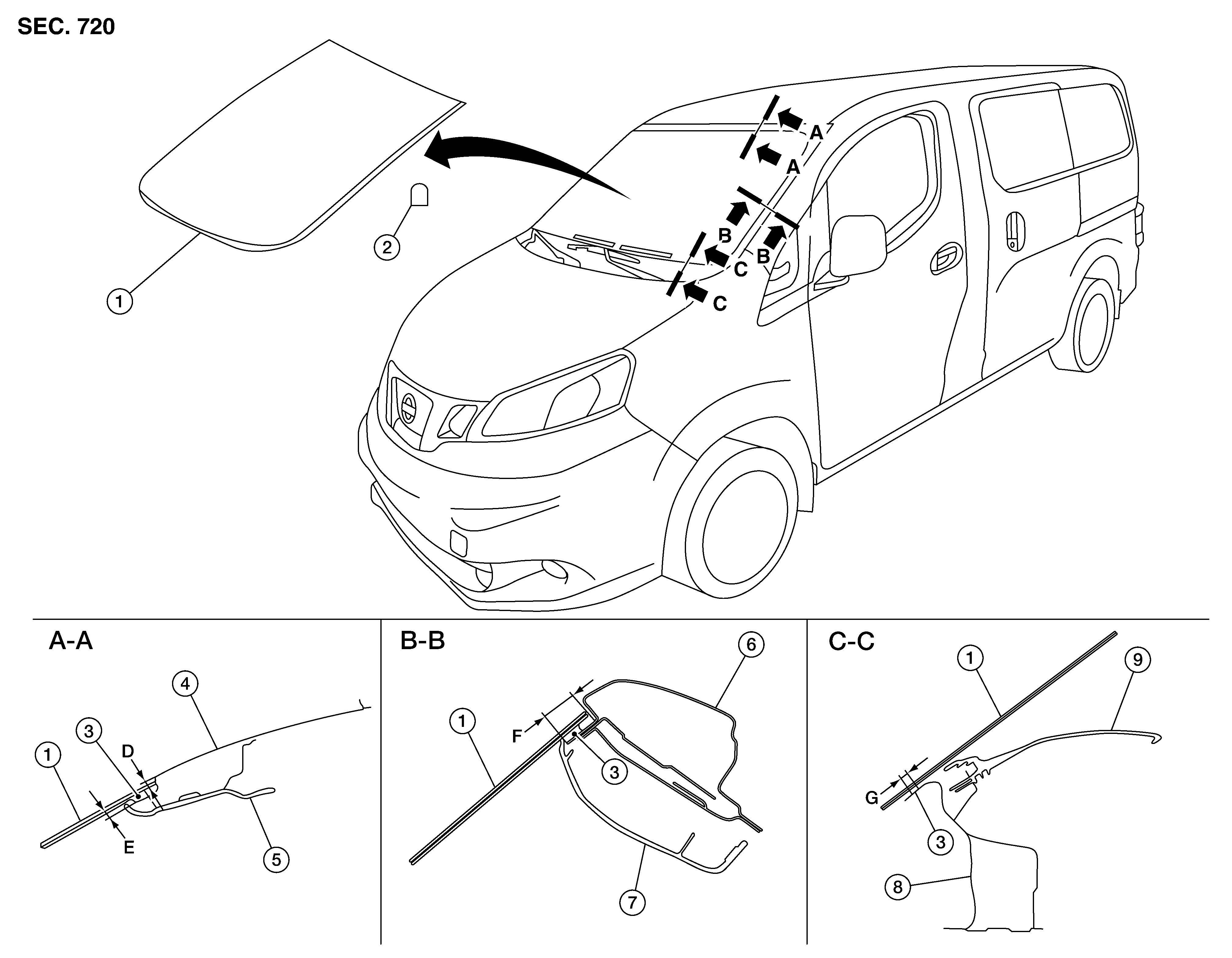

1.
Windshield glass
2.
Inside mirror base (if equipped)
3.
Adhesive
4.
Roof panel
5.
Headlining
6.
Body side outer panel
7.
Front pillar finisher
8.
Cowl top cover
9.
Instrument panel
D.
4.0 mm (0.16 in)
E.
5.7 mm (0.22 in)
F.
23.5 mm (0.93 in)
G.
9.0 mm (0.35 in)
