Unit Disassembly And Assembly: Seatback: Disassembly

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
  • Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least three minutes.
  • Handle the side air bag module carefully. During disassembly, always hold the side air bag module, do not let it hang by the wire harness.
  • Always work from the side or back of the seatback, do not work in front of seat.
  • Do not use air tools or electric tools for servicing the seat assembly.
  • Replace the side air bag module if it has been dropped or sustained an impact.
  • Do not insert any objects into the side air bag module.
  • Do not attempt to disassemble the side air bag module.
  • Do not expose the side air bag module to temperatures exceeding 90°C (194°F).
  • Do not expose the side air bag module to any oil, grease, detergent or water.
  • During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module harness or the side air bag module.
NOTE: If the vehicle has been involved in a collision and the side air bag module has deployed, the seatback pad and seatback trim must be replaced.
  1. Remove the front seat assembly. Refer to Removal and Installation .
  2. Remove the headrest.

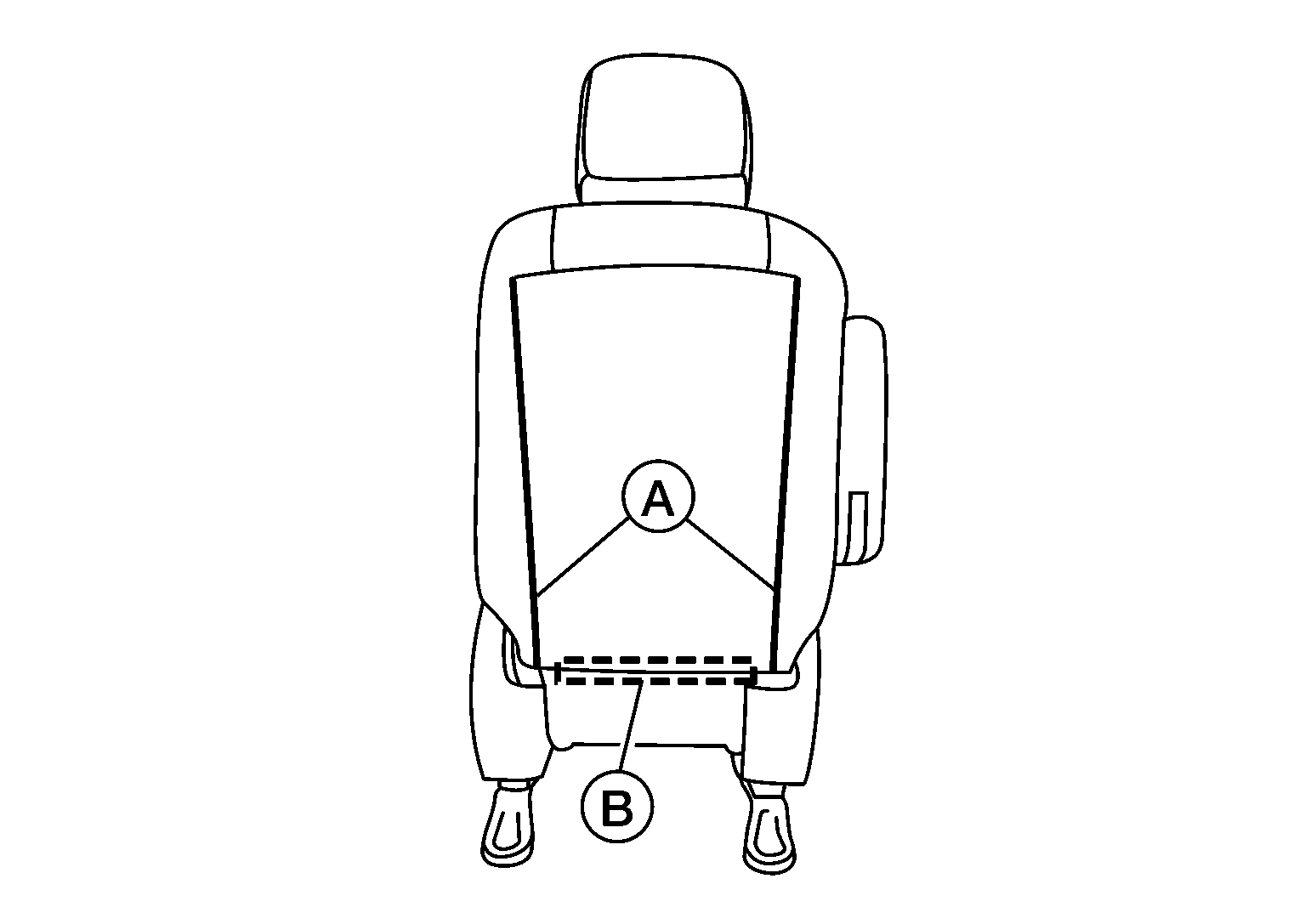

  3. Release J-clip retainer (B) and unzip the seatback zippers (A).
    GNSALJIA1176Z-176Courtesy of NISSAN NORTH AMERICA, INC.

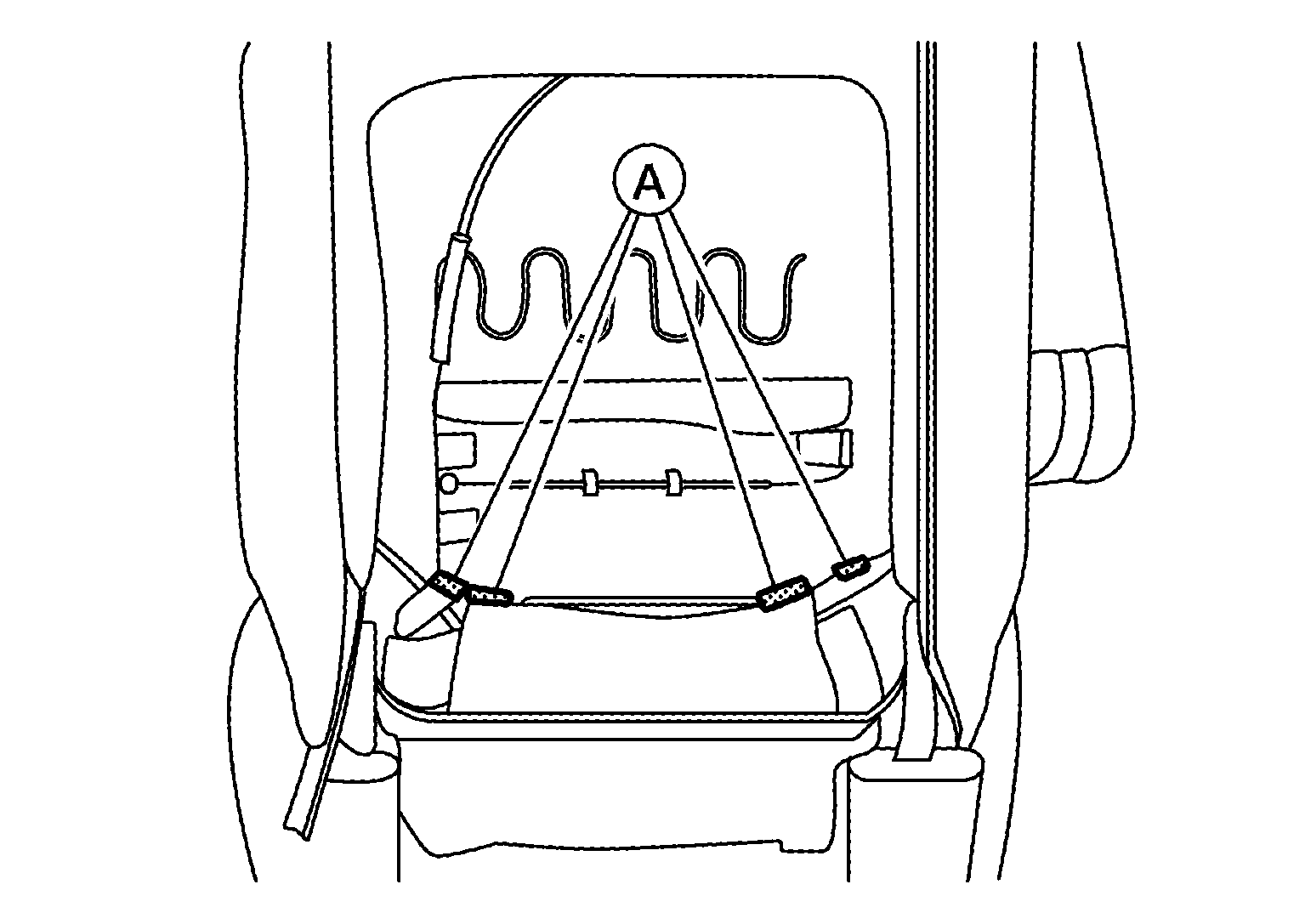

  4. Release J-hook retainers (A) from the seat frame assembly.
    GNSALJIA1168Z-168Courtesy of NISSAN NORTH AMERICA, INC.

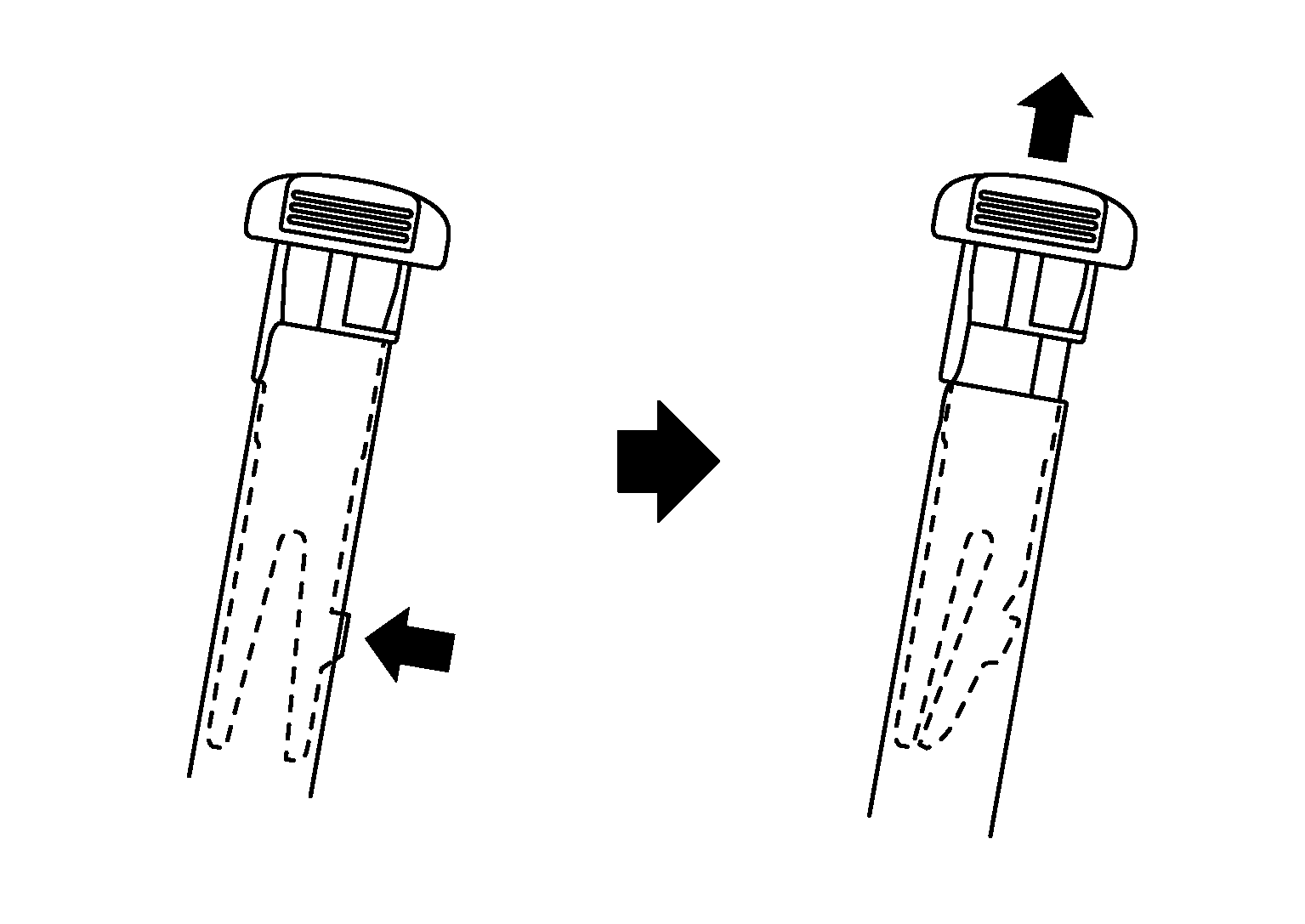

  5. Release the headrest holder locks as shown below and remove the headrest holders.
    GNSJMJIA4073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Before removing/installing the headrest holder, check its orientation (front/rear and right/left).

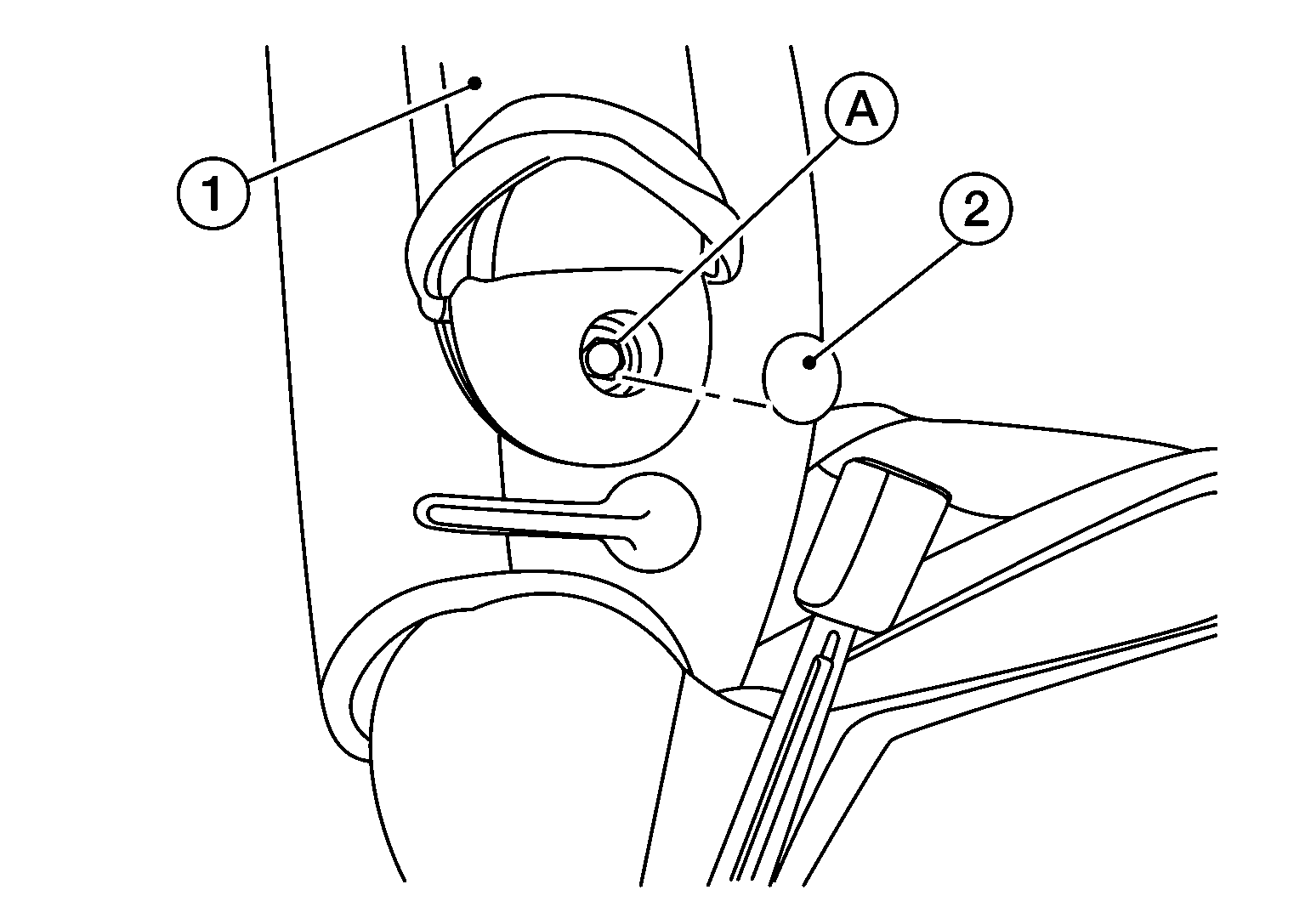

  6. Remove the armrest (1).
    GNSDB122564Courtesy of NISSAN NORTH AMERICA, INC.
    1. Unzip the armrest trim and remove armrest bolt cover (2).
    2. Remove the armrest bolt (A) and the armrest.
  7. Remove the snap ring (2) as shown below, then the lumbar lever (1).
    GNSALJIA1178Z-178Courtesy of NISSAN NORTH AMERICA, INC.
  8. The rest of the seatback is serviced as part of the front seat assembly.
