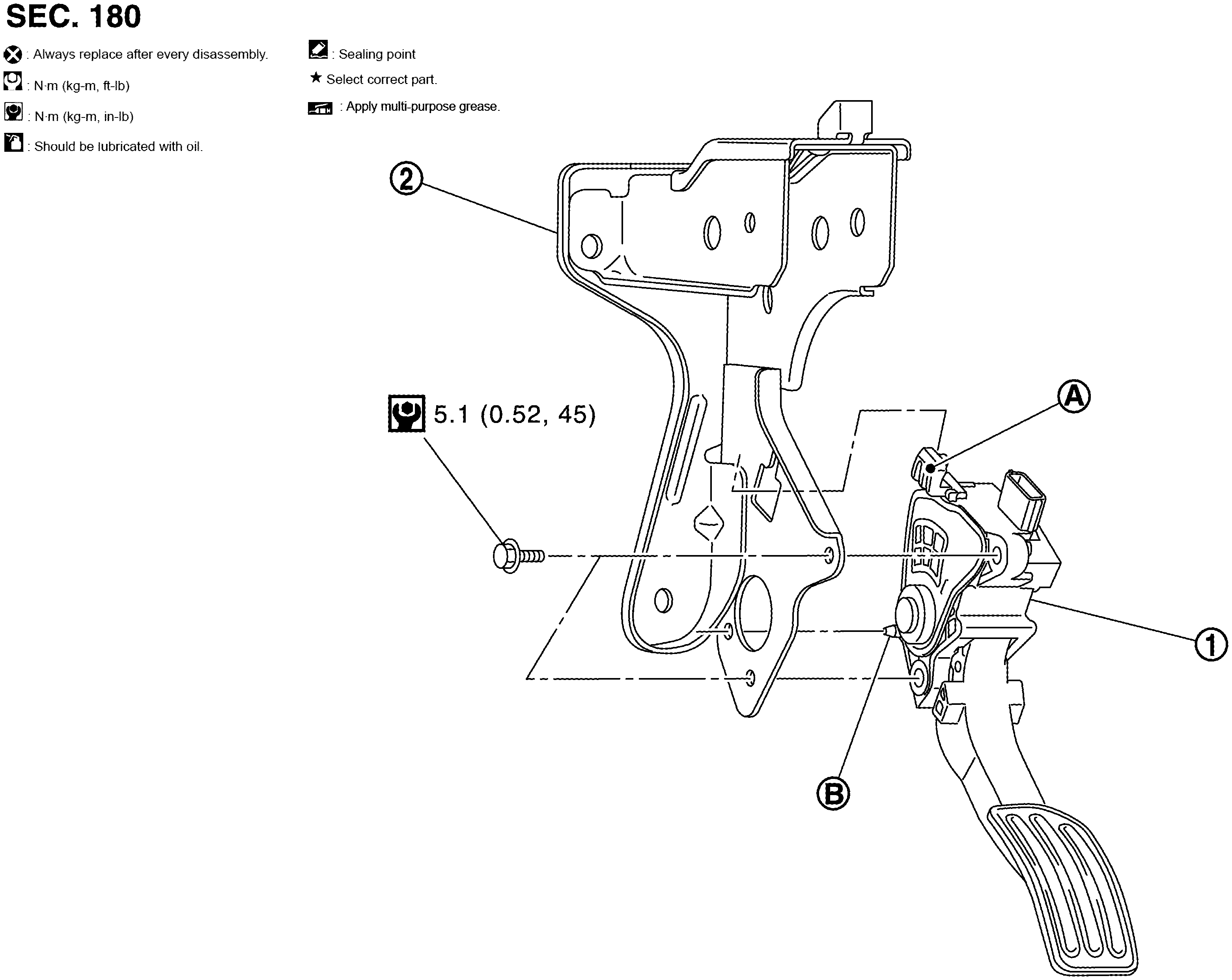

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Accelerator pedal assembly	2.	Brake pedal bracket	A.	Locating hook
B.	Locating pin
