Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before replacing ADAS control unit, perform "Before Replace ECU" of "Read / Write Configuration" to save or print current vehicle specification. Refer to Description .

Remove instrument lower panel LH. Refer to Removal and Installation .

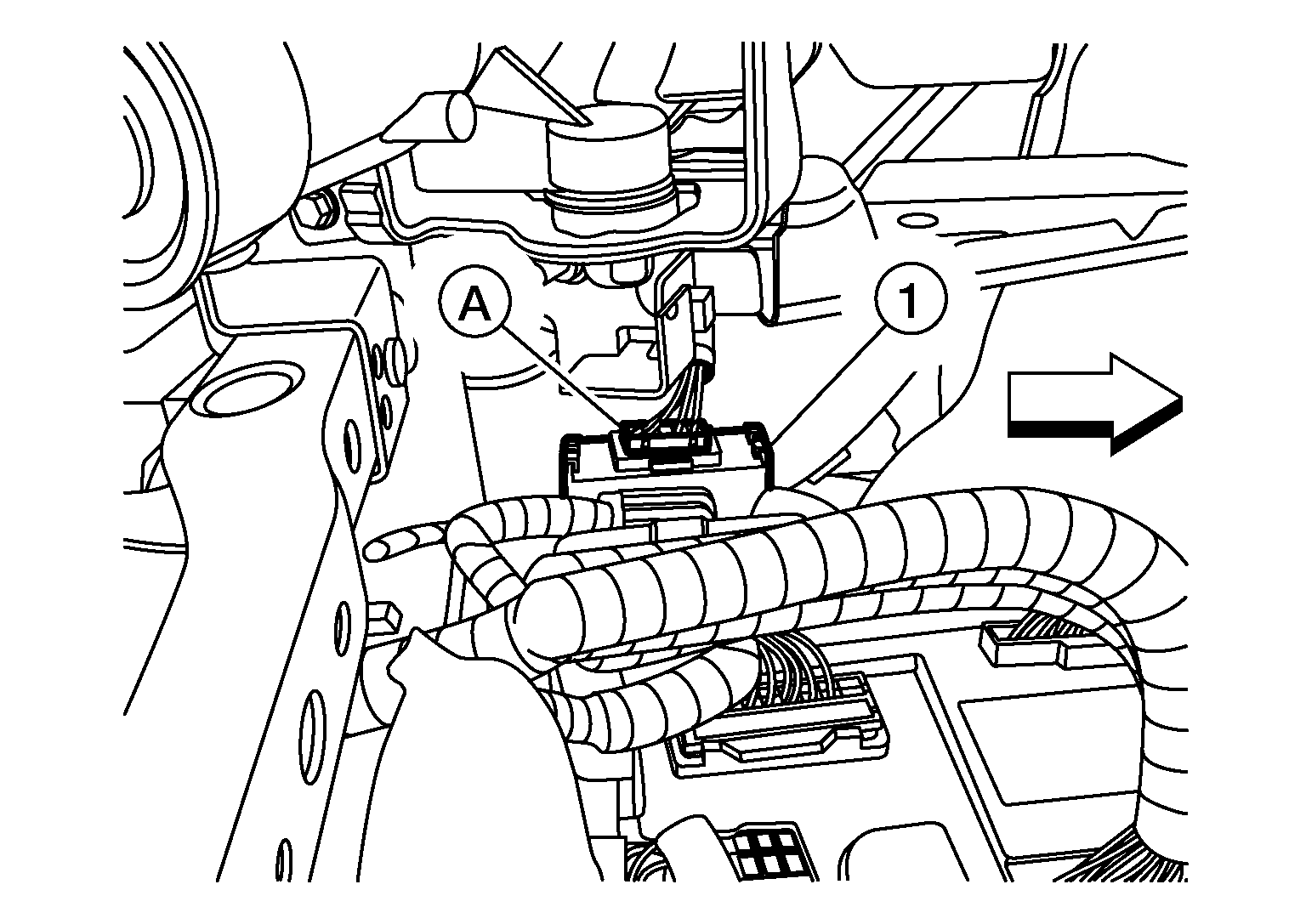

Disconnect harness connector (A) from ADAS control unit (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Release tab on bottom of ADAS control unit and slide forward to remove.
