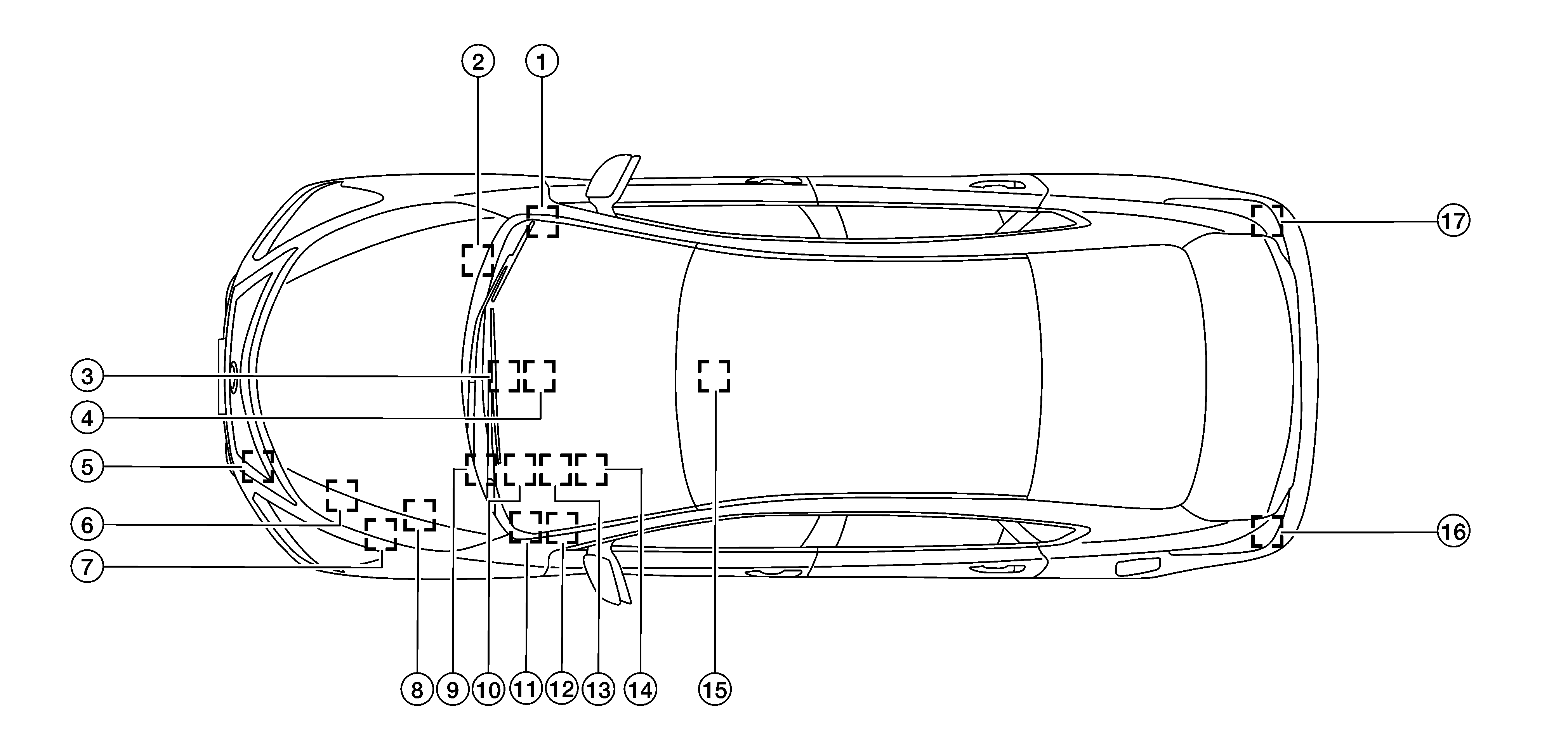

Components Location
WARNING: This page is about a different car, the 2018 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
TCU |
2. |
ABS actuator and electric unit (control unit) |
3. |
AV control unit |
|
4. |
A/C auto amp. |
5. |
Distance sensor (ICC sensor) |
6. |
ECM |
|
7. |
IPDM E/R |
8. |
TCM |
9. |
Data link connector |
|
10. |
EPS control unit |
11. |
ADAS control unit |
12. |
BCM |
|
13. |
Combination meter |
14. |
Steering angle sensor |
15. |
Air bag diagnosis sensor unit |
|
16. |
Side radar LH |
17. |
Side radar RH |
