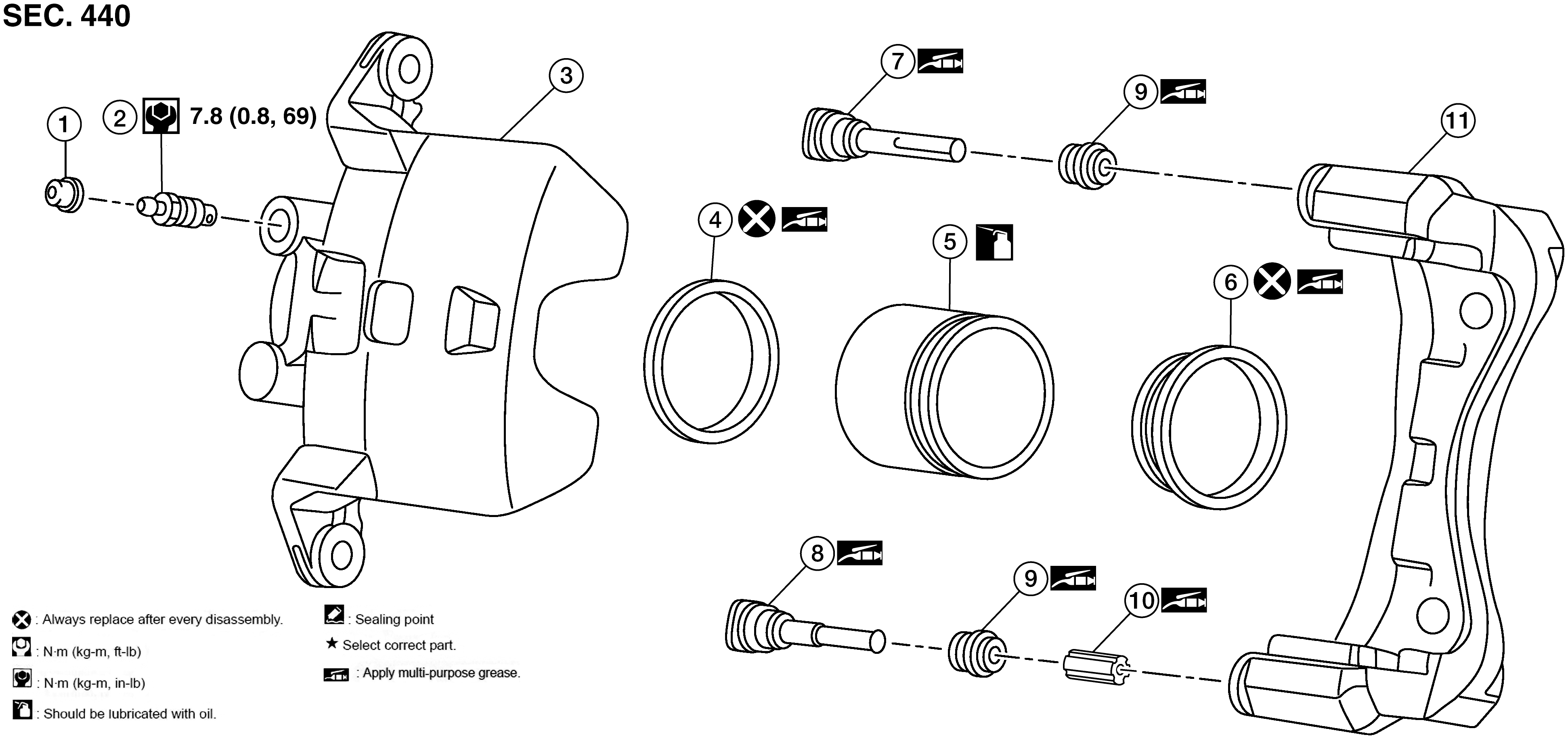

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cap
|
2.
|
Bleeder valve
|
3.
|
Cylinder body
|
|
4.
|
Piston seal
|
5.
|
Piston
|
6.
|
Piston boot
|
|
7.
|
Upper sliding pin
|
8.
|
Lower sliding pin
|
9.
|
Sliding pin boot
|
|
10.
|
Bushing
|
11.
|
Torque member
|
|
Apply brake fluid
|
|
|
Apply rubber grease
|
