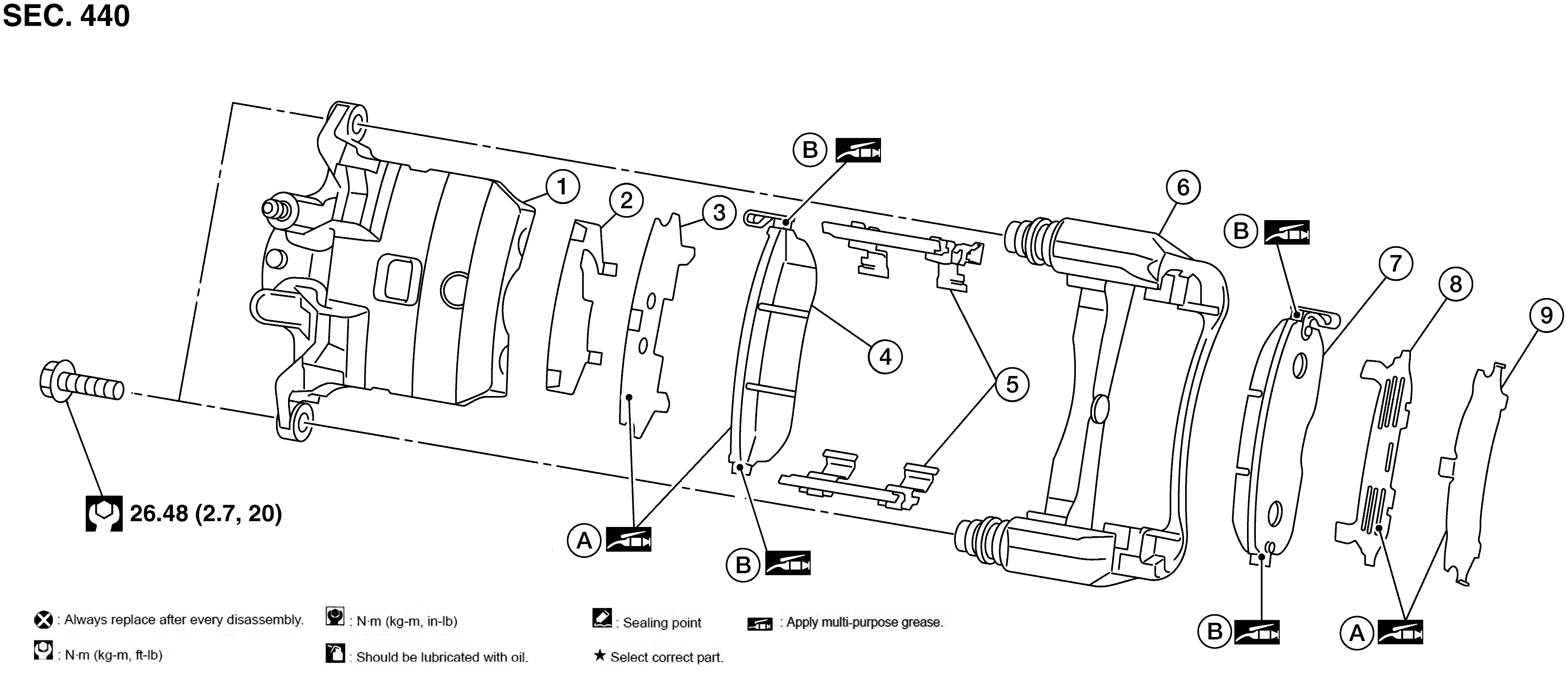

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Cylinder body
|
2.
|
Inner shim cover
|
3.
|
Inner shim
|
|
4.
|
Inner pad (with pad wear sensor)
|
5.
|
Pad retainer
|
6.
|
Torque member
|
|
7.
|
Outer pad
|
8.
|
Outer shim
|
9.
|
Outer shim cover
|
|
A.
|
Molykote AS880N
|
B.
|
Molykote 7439
|
