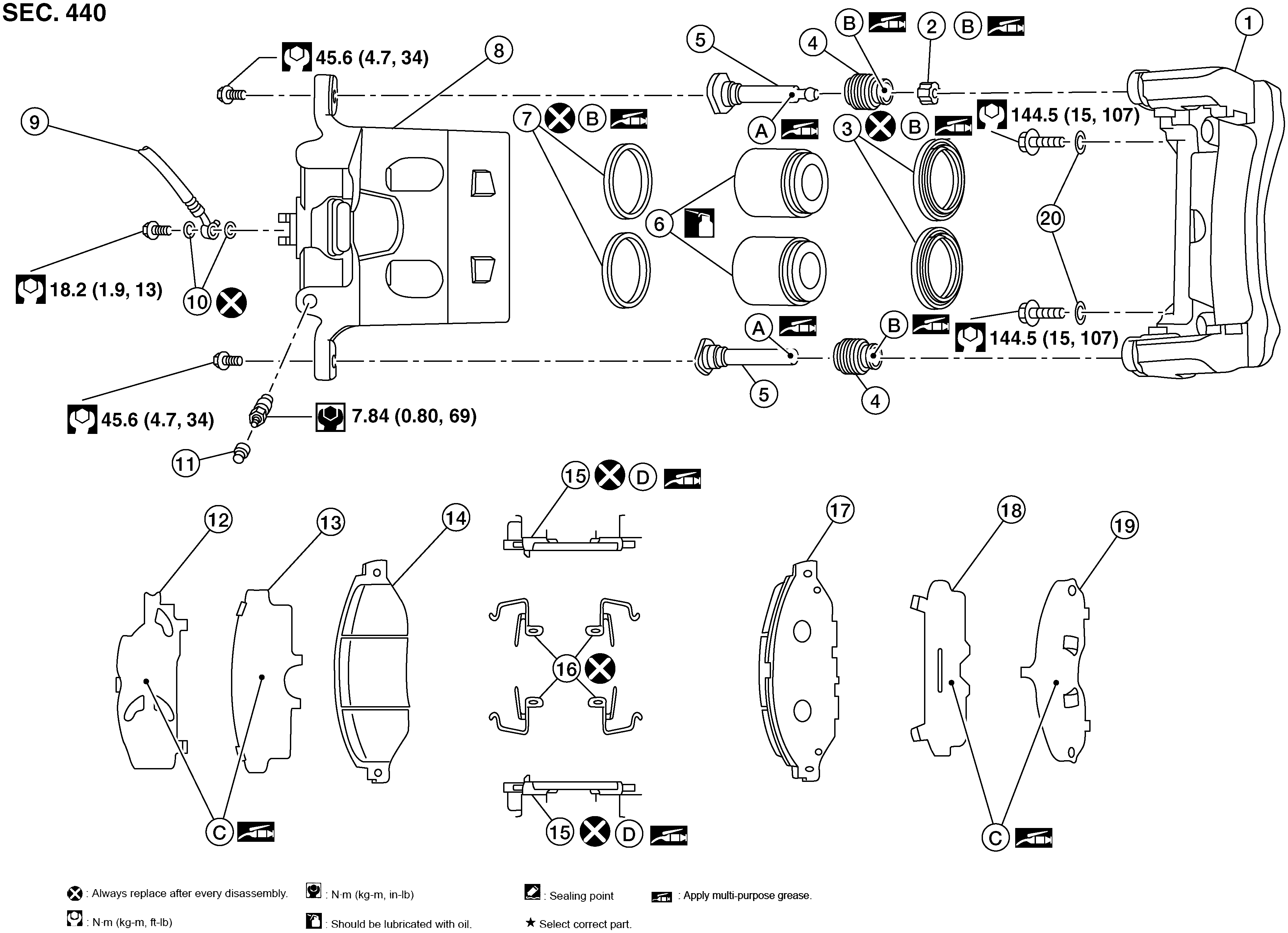

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Torque member |
2. |
Bushing |
3. |
Piston boot |
|
4. |
Slide pin boot |
5. |
Slide pin |
6. |
Piston |
|
7. |
Piston seal |
8. |
Brake caliper body |
9. |
Brake hose |
|
10. |
Copper sealing washers |
11. |
Bleeder cap |
12. |
Inner shim cover |
|
13. |
Inner shim |
14. |
Inner pad |
15. |
Pad retainer |
|
16. |
Anti-rattle clip |
17. |
Outer pad |
18. |
Outer shim |
|
19. |
Outer shim cover |
20. |
Washers |
A. |
Nigrove Rx-2 |
|
B. |
Rubber grease |
C. |
Molykote AS-880N |
D. |
Molykote 7439 |
|
|
|||||
