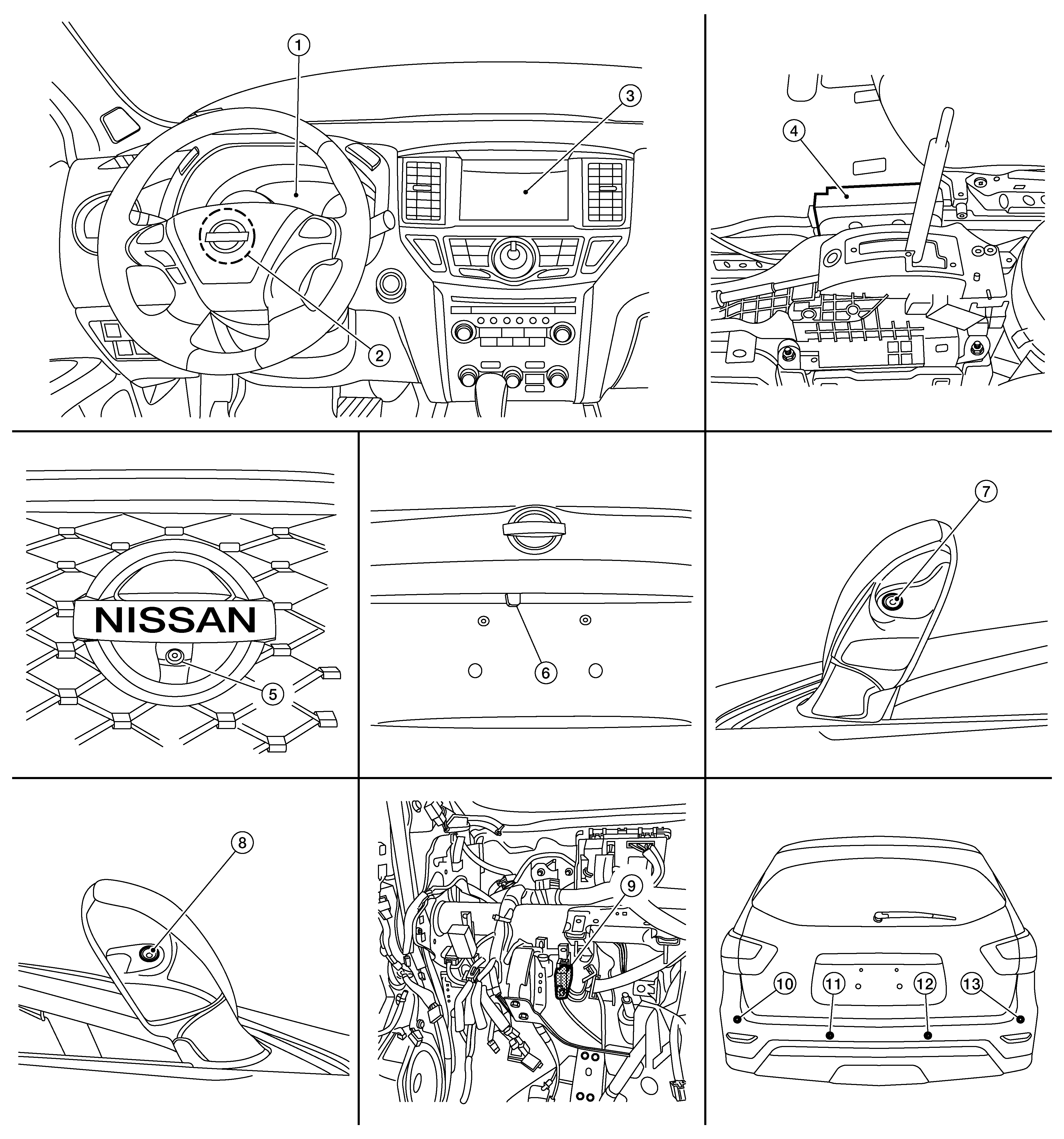

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component |
Function |
|
1. |
Combination meter |
Refer to Combination Meter . |
|
2. |
Steering angle sensor |
Refer to Steering Angle Sensor . |
|
3. |
Display control unit |
Refer to Display Control Unit . |
|
4. |
Around view monitor control unit |
Refer to Around View Monitor Control Unit . |
|
5. |
Front camera |
Refer to Front Camera . |
|
6. |
Rear camera |
Refer to Rear Camera . |
|
7. |
Side camera LH |
Refer to Side Camera . |
|
8. |
Side camera RH |
|
|
9. |
Sonar control unit |
Refer to Sonar Control Unit . |
|
10. |
Rear sonar sensor LH outer |
Refer to Sonar Sensor . |
|
11. |
Rear sonar sensor LH inner |
|
|
12. |
Rear sonar sensor RH outer |
|
|
13. |
Rear sonar sensor RH inner |
