Method Of Starting

A/C and AV Switch Assembly and Multifunction Switch Self Diagnosis

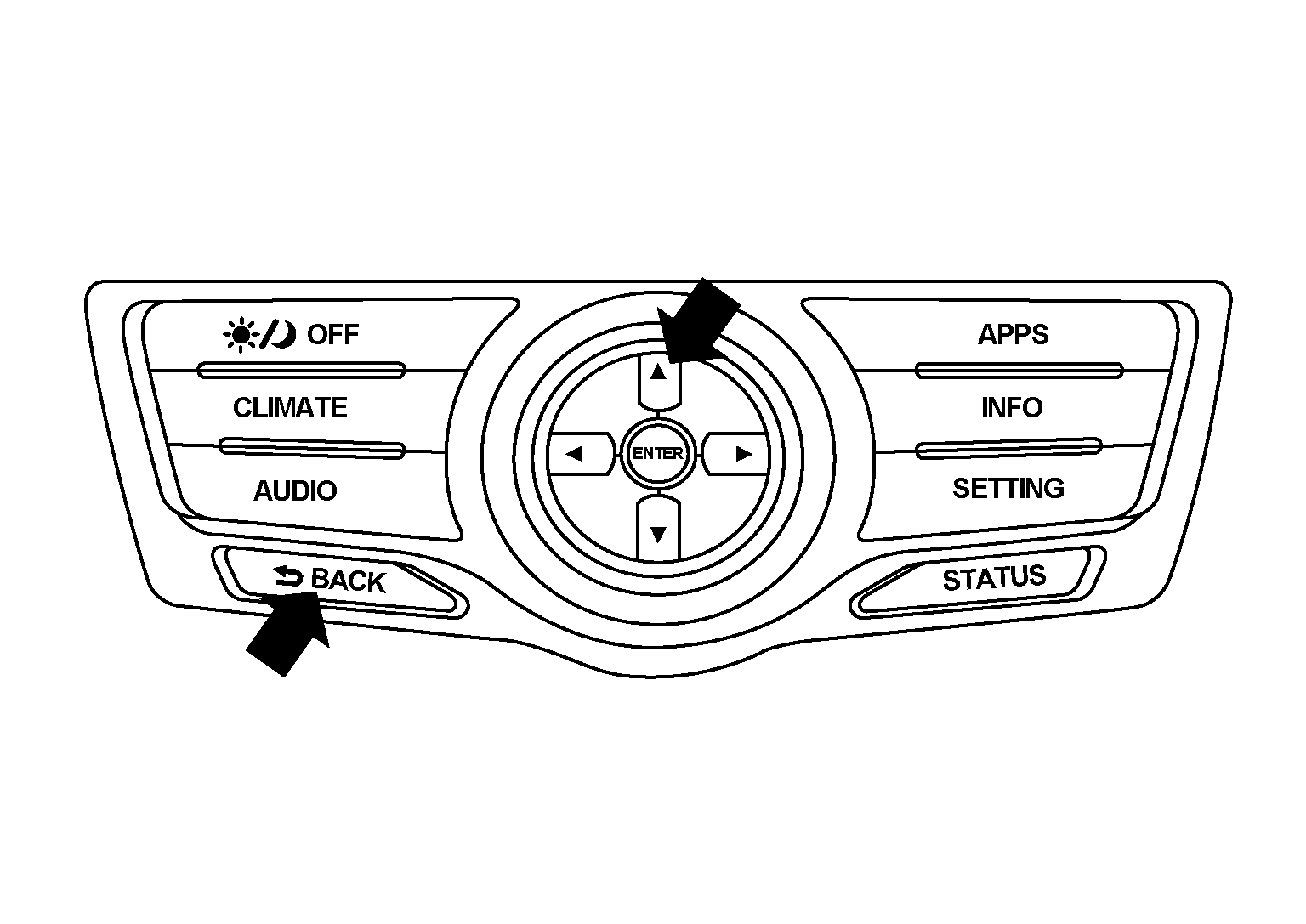

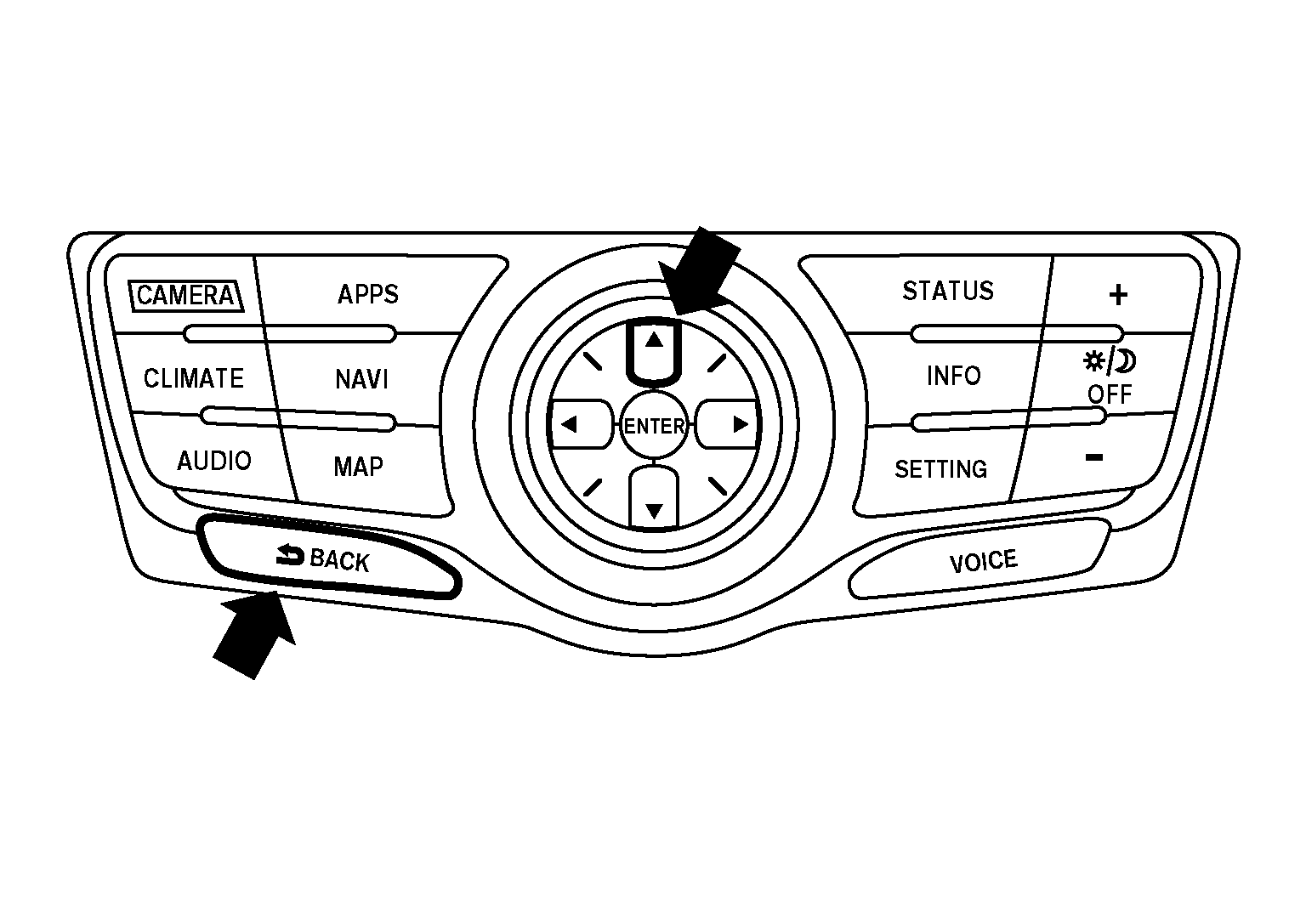

• Press the BACK and UP switches within 10 seconds after turning the ignition switch from OFF to ACC and hold them for 3 seconds or more.

  With Navigation

  Courtesy of NISSAN NORTH AMERICA, INC.

  Without Navigation

  Courtesy of NISSAN NORTH AMERICA, INC.

• The buzzer sounds, all indicators of the A/C switches illuminate, and the self-diagnosis mode begins.
• The ON position continuity of each switch can be checked by pressing the switch. The buzzer sounds if continuity is present.
• The self diagnosis mode is canceled when the ignition switch is turned OFF.

AV Control Unit Self Diagnosis

1. Turn the ignition ON.
2. Turn the audio system OFF.

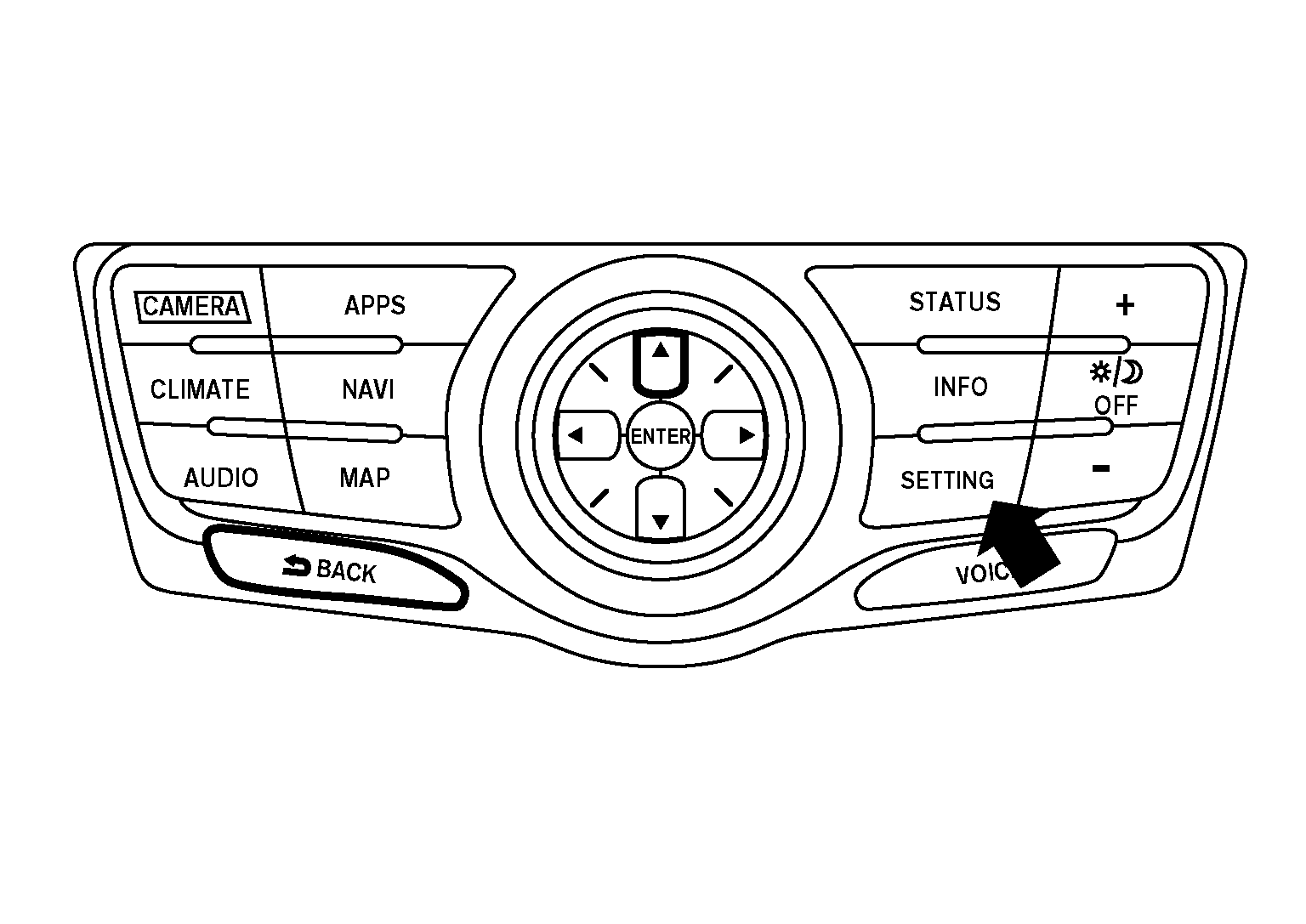

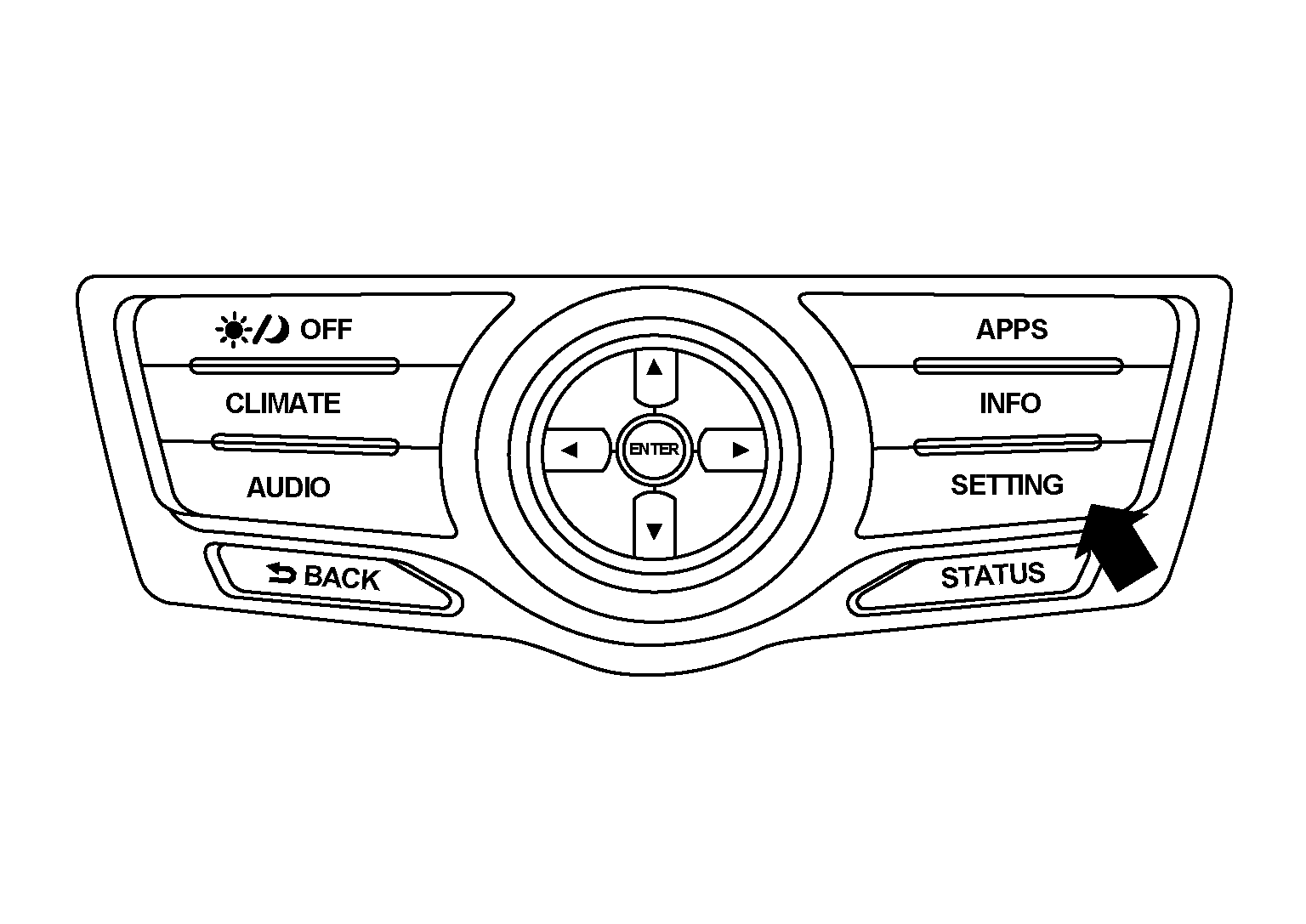

3. Press the "SETTING" button on the multifunction switch. The "Settings" screen is displayed.

   With Navigation

   Courtesy of NISSAN NORTH AMERICA, INC.

   Without Navigation

   Courtesy of NISSAN NORTH AMERICA, INC.

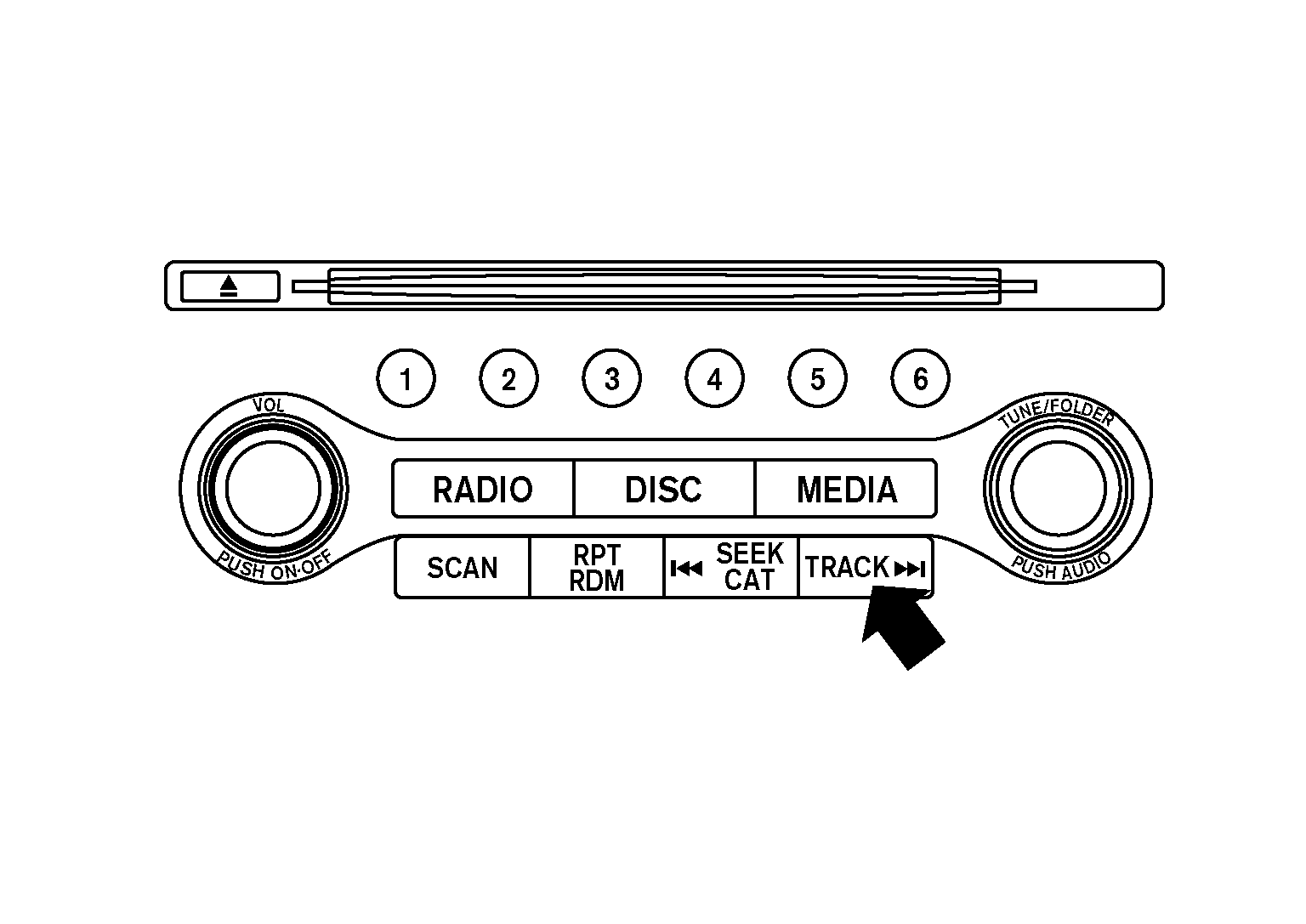

4. Press the "Track" button on the AV switch at least 3 times within 15 seconds after the settings screen is displayed.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: If the "Track" button is pressed more than 4 times, self-diagnosis mode will not start. Turn the ignition OFF and start again from step 1.
5. Touch the screen (area of the figure) for 3 seconds.

   Courtesy of NISSAN NORTH AMERICA, INC.

6. The trouble diagnosis initial screen is displayed, and "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
