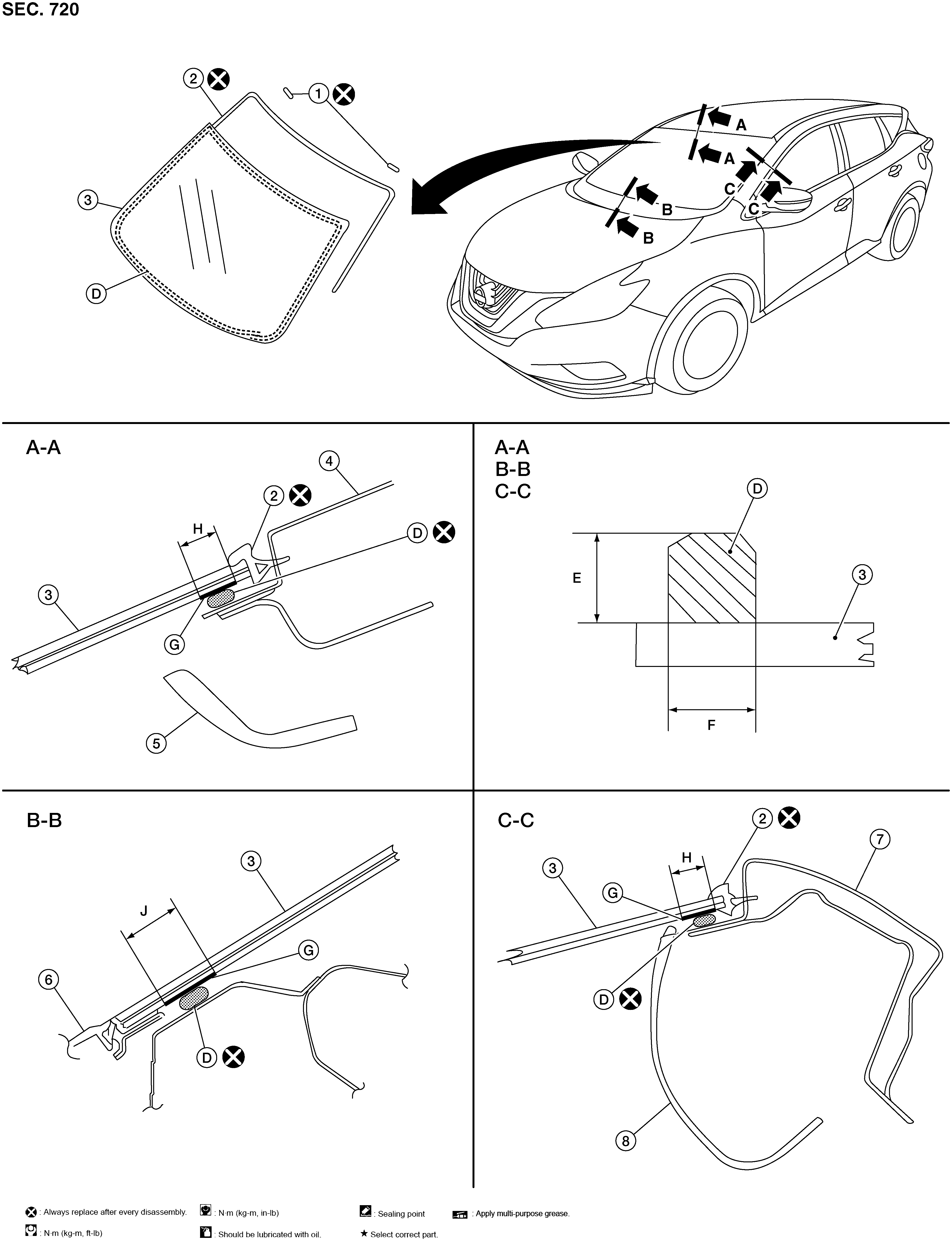

1.
Spacer
2.
Windshield glass molding
3.
Windshield glass
4.
Roof
5.
Headlining
6.
Cowl top cover
7.
Body side outer
8.
Front pillar finisher
D.
Adhesive
E.
12 mm (0.47 in)
F.
7.0 mm (0.28 in)
G.
Primer
H.
16 mm (0.63 in)
J.
25 mm (0.98 in)
Courtesy of NISSAN NORTH AMERICA, INC.
