Exploded View

WARNING: This page is about a different car, the 2018 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

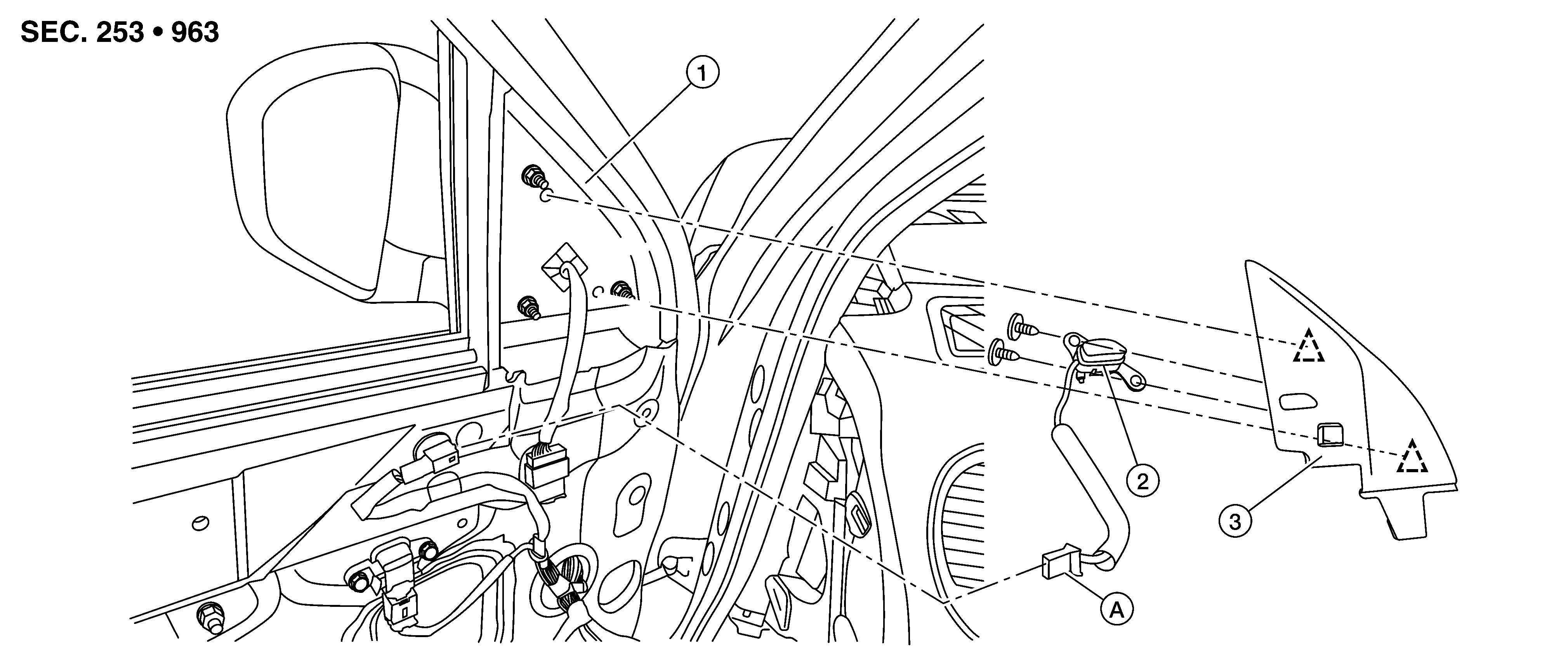

GNSAWOIA0020Z-020Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front door

2.

Blind spot warning indicator

3.

Door mirror corner finisher

A.

Blind spot warning indicator harness connector

SYMBOL

Clip
