Removal and Installation: Removal

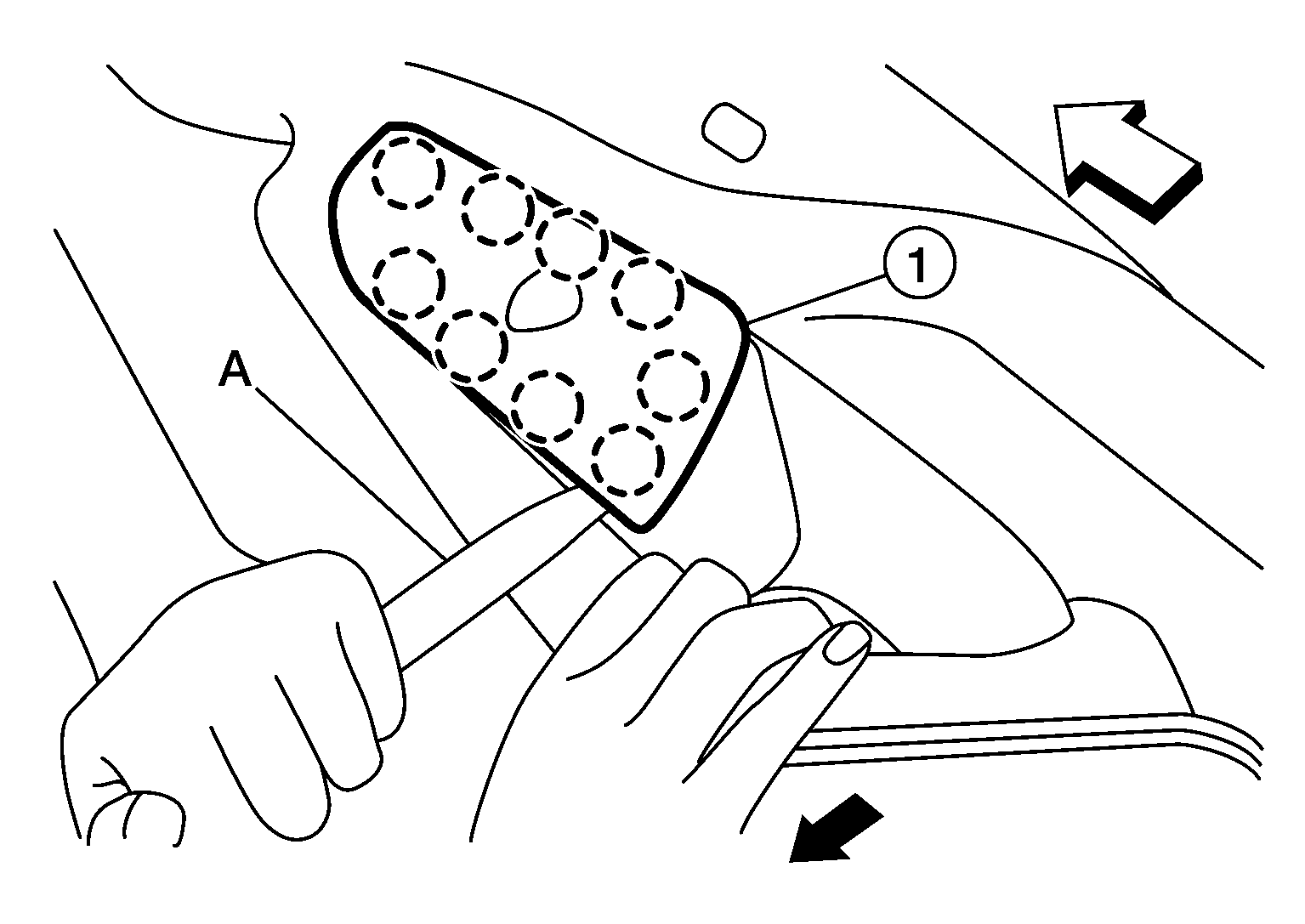

  1. Pull armrest in direction shown (SYMBOL ) then starting at rear release rear power window switch finisher (1) pawls using a suitable tool (A).
    GNSALJIA1669Z-669Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

    SYMBOL : Pawl

  2. Disconnect the harness connector from the rear power window switch and remove.

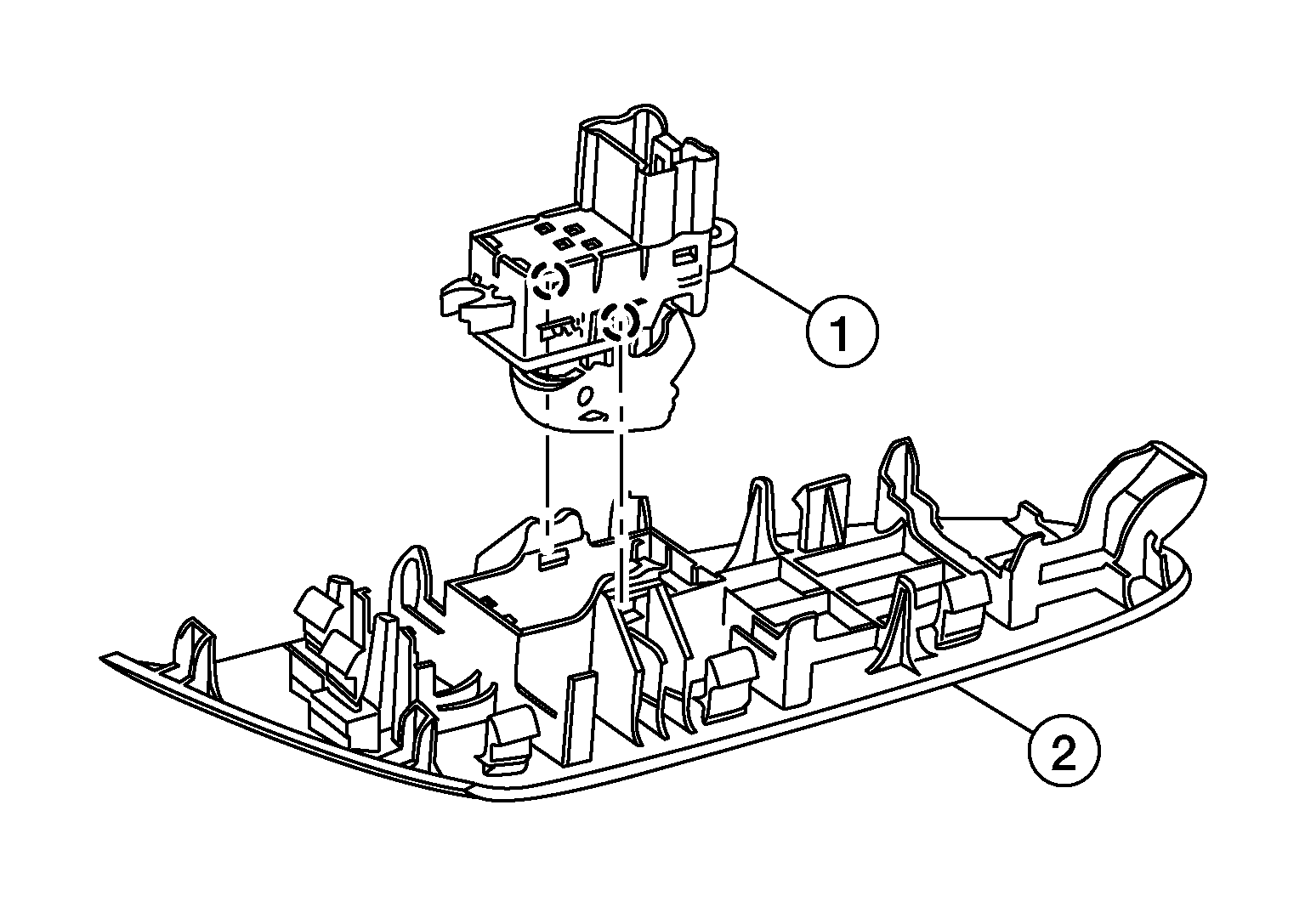

  3. Release the pawls then separate the rear power window switch (1) from the switch finisher (2).
    GNSALKIA3697Z-697Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
