Method Of Starting

  1. Turn ignition switch ON.
  2. Turn the audio system OFF.

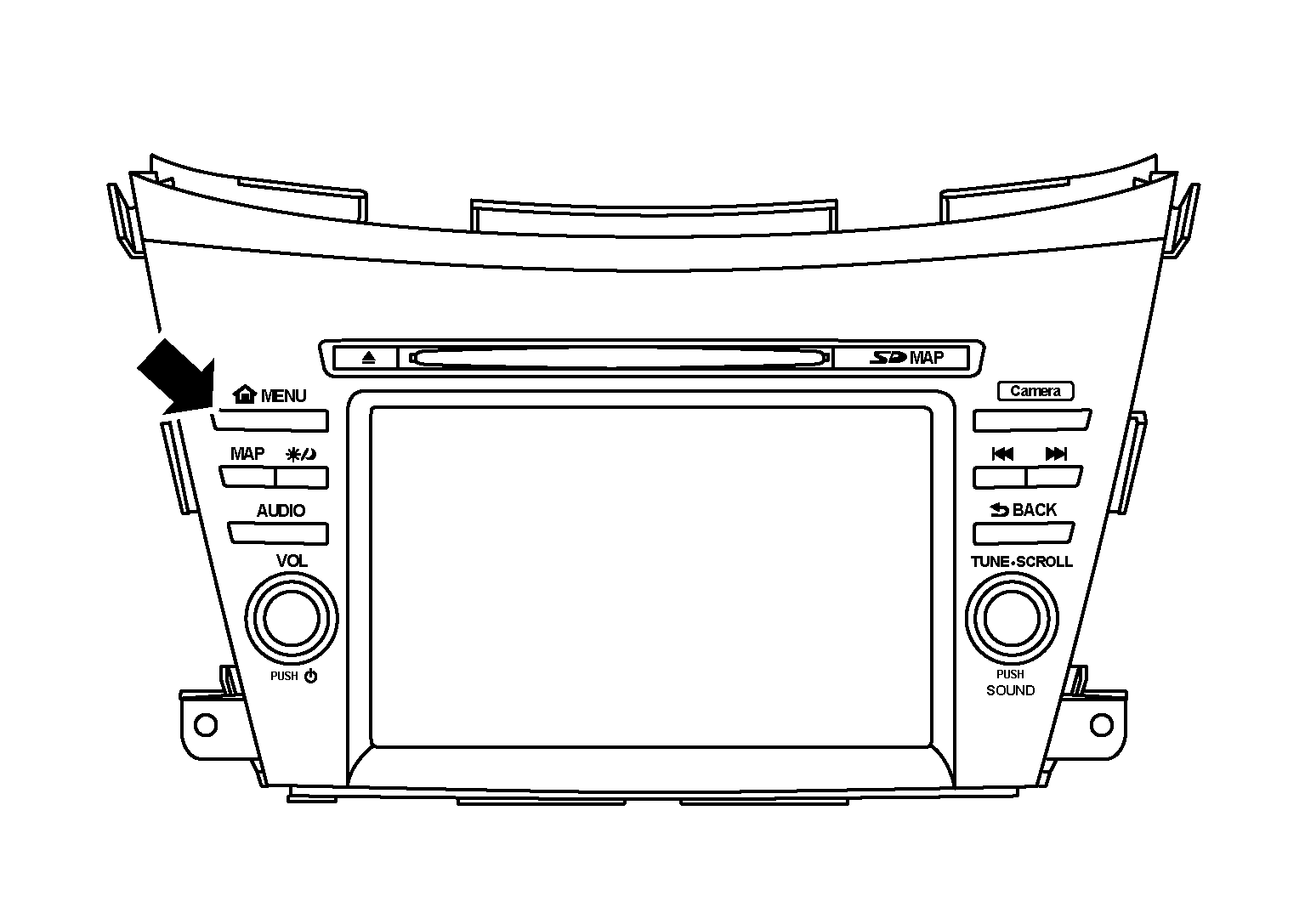

  3. Press the MENU button.
    GNSALNIA1705Z-705Courtesy of NISSAN NORTH AMERICA, INC.

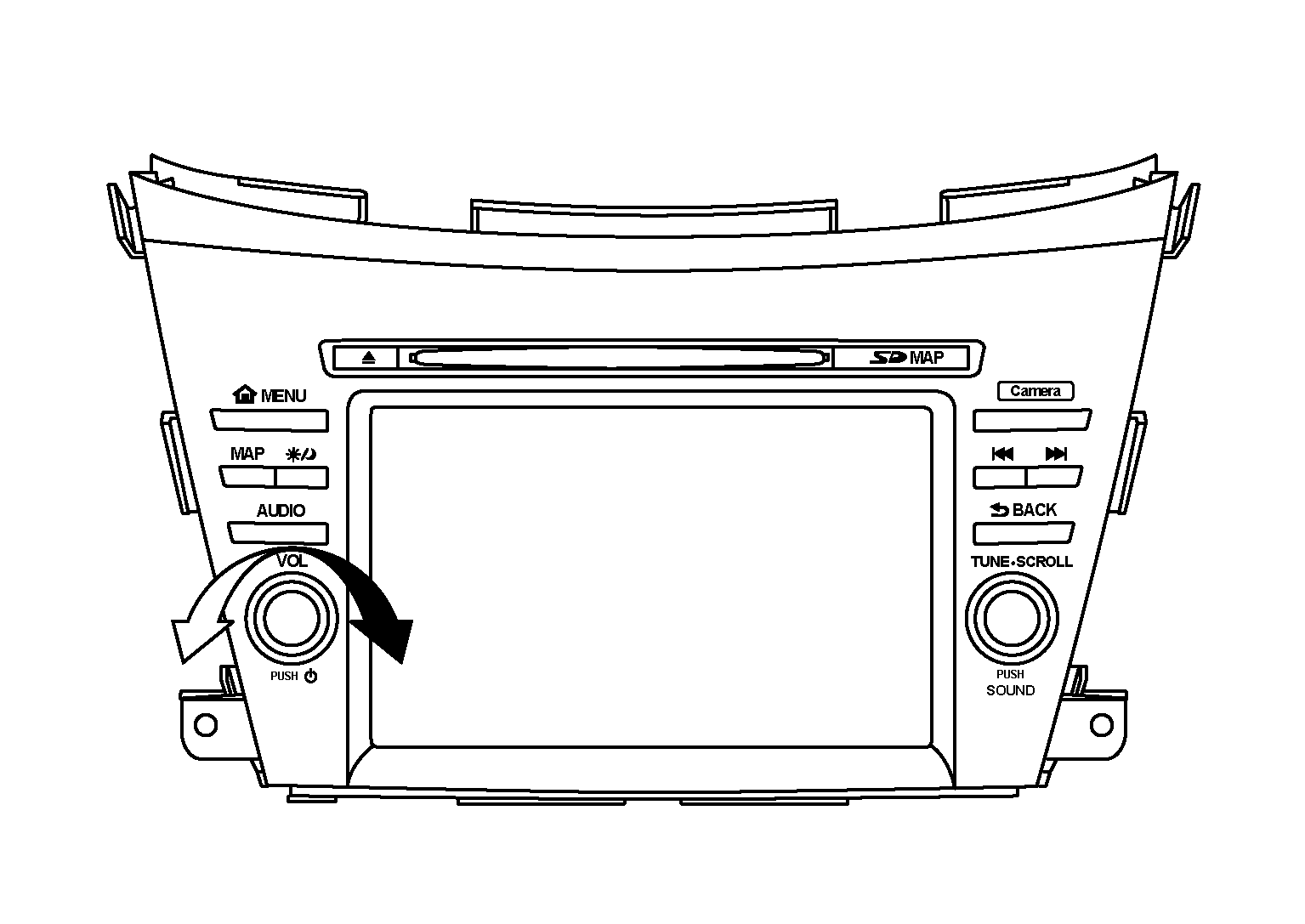

  4. While menu button is pressed rotate the volume encoder left, right, and left. On each rotation, it should be at least 7 clicks.
    GNSALNIA1706Z-706Courtesy of NISSAN NORTH AMERICA, INC.
  5. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
