Distance Sensor (ICC Sensor) Alignment: Preparation

1. Adjust all tire pressures to the specified value.
2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
3. Shift the selector lever to "P" position, and release the parking brake.
4. Fully fill the fuel tank, and then check that the coolant and oils are filled to correct level.
5. Clean off the front of the distance sensor (ICC sensor).

   Courtesy of NISSAN NORTH AMERICA, INC.

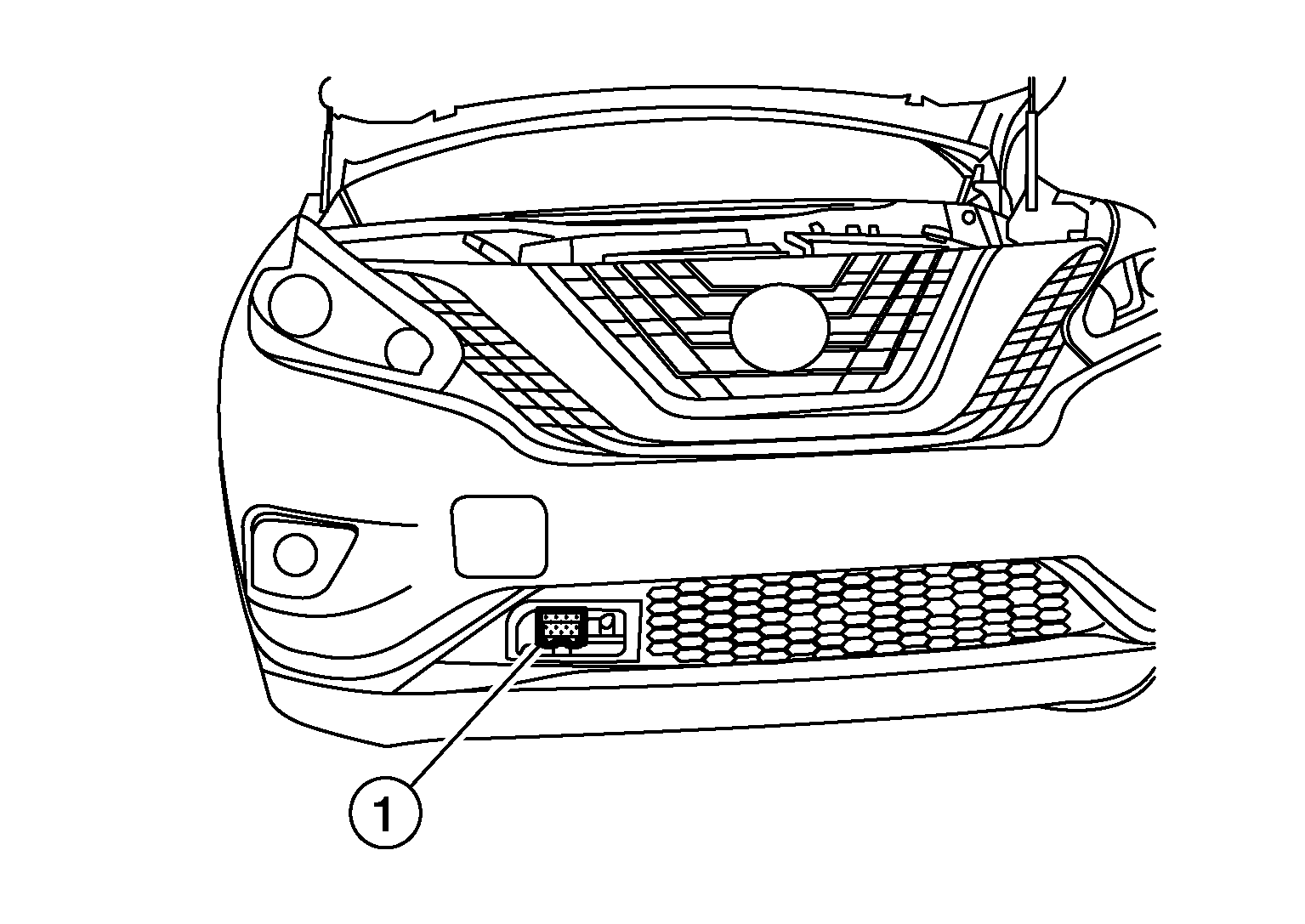

   1	: Distance sensor (ICC sensor)

Refer to Vehicle Set Up .
