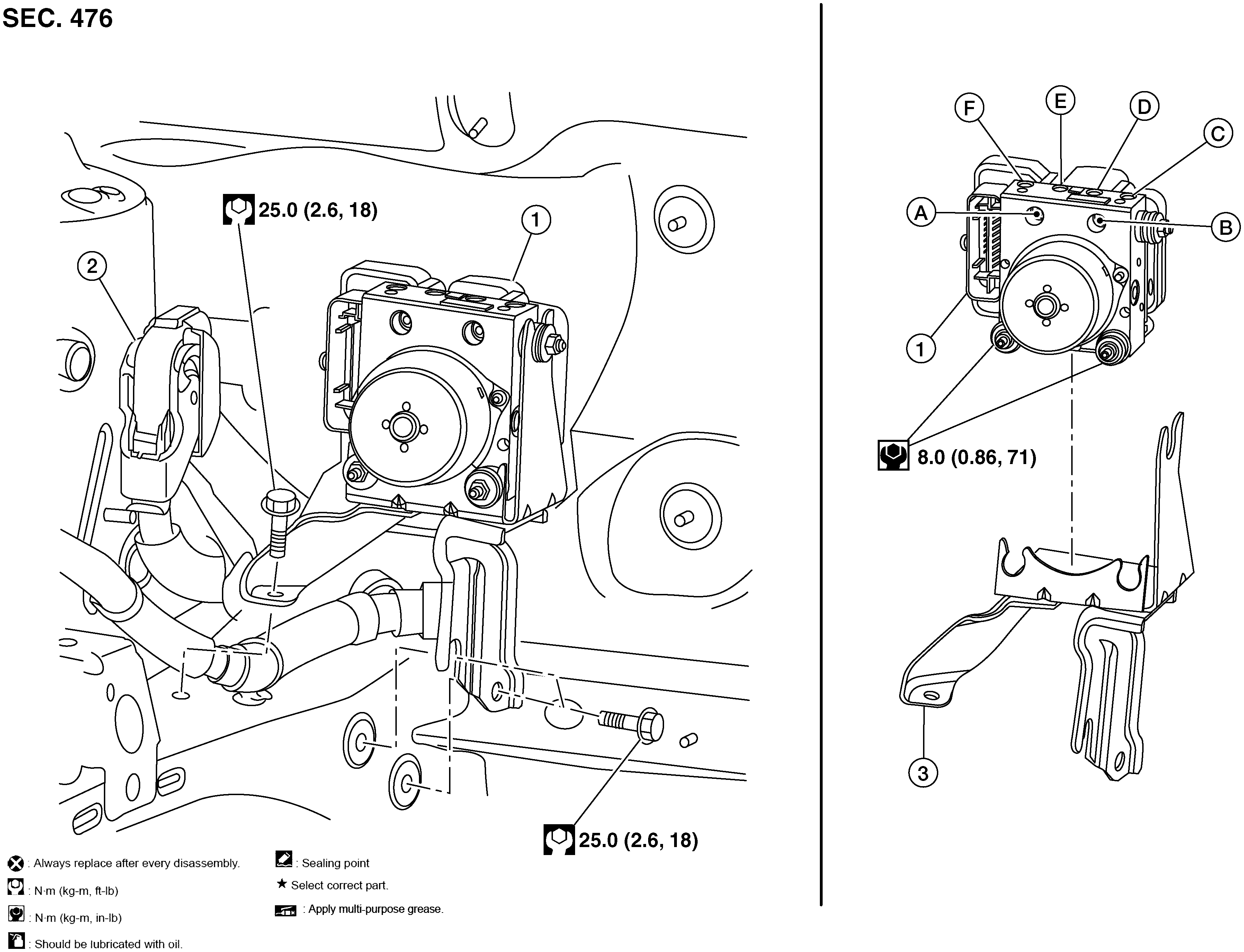

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bracket
A.	To master cylinder secondary side. Refer to Exploded View .	B.	To master cylinder primary side. Refer to Exploded View .	C.	To rear wheel cylinder (LH). Refer to Exploded View .
D.	To front caliper (RH). Refer to Exploded View .	E.	To front caliper (LH). Refer to Exploded View .	F.	To rear wheel cylinder (RH). Refer to Exploded View .
