Exploded View

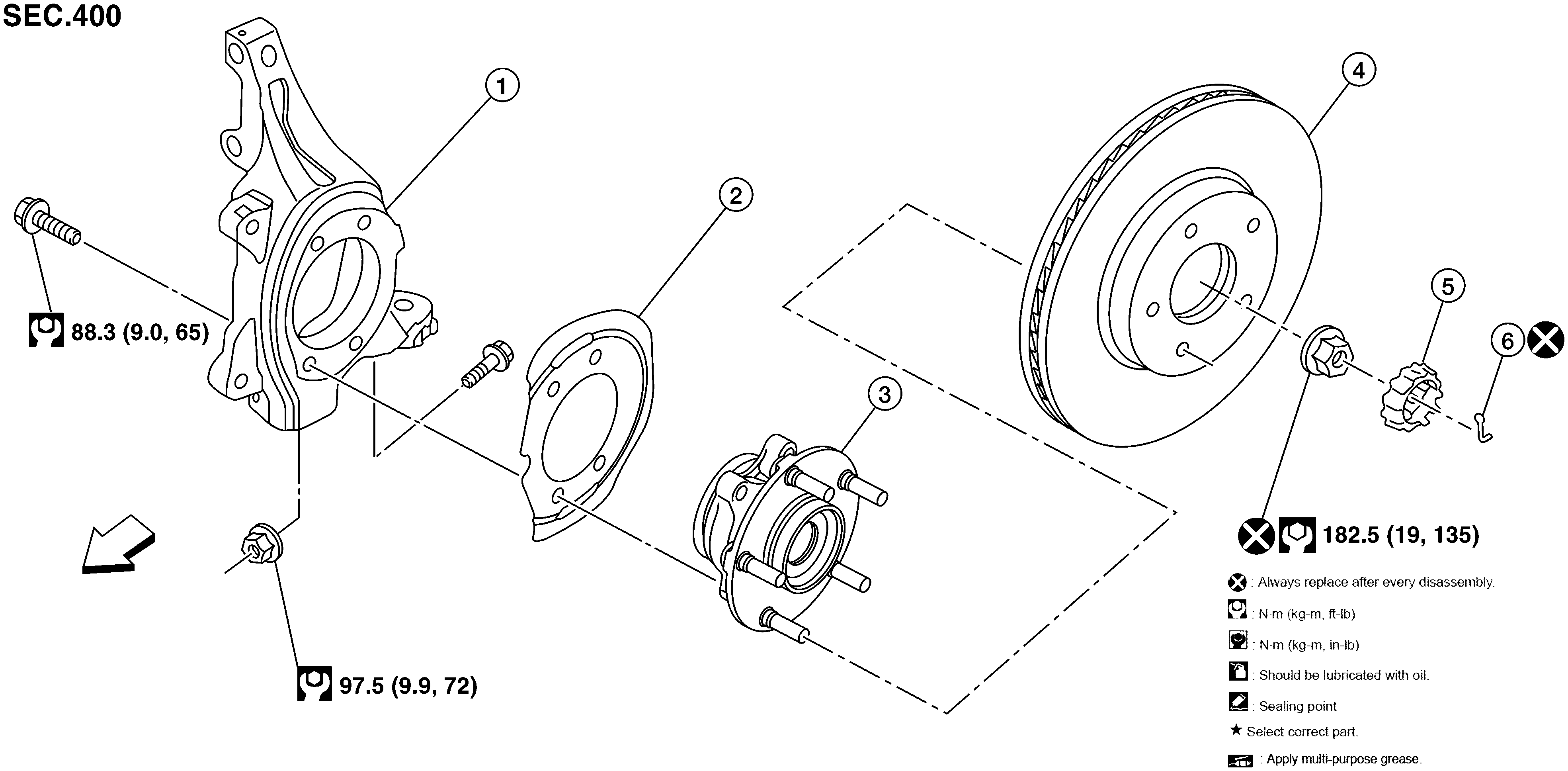

Fig 1: Steering Knuckle With Torque Specifications
GNSAWDIA1303Z-303Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Splash guard

3.

Wheel hub and bearing

4.

Disc brake rotor

5.

Nut retainer

6.

Cotter pin

SYMBOL

Front
