Exploded View

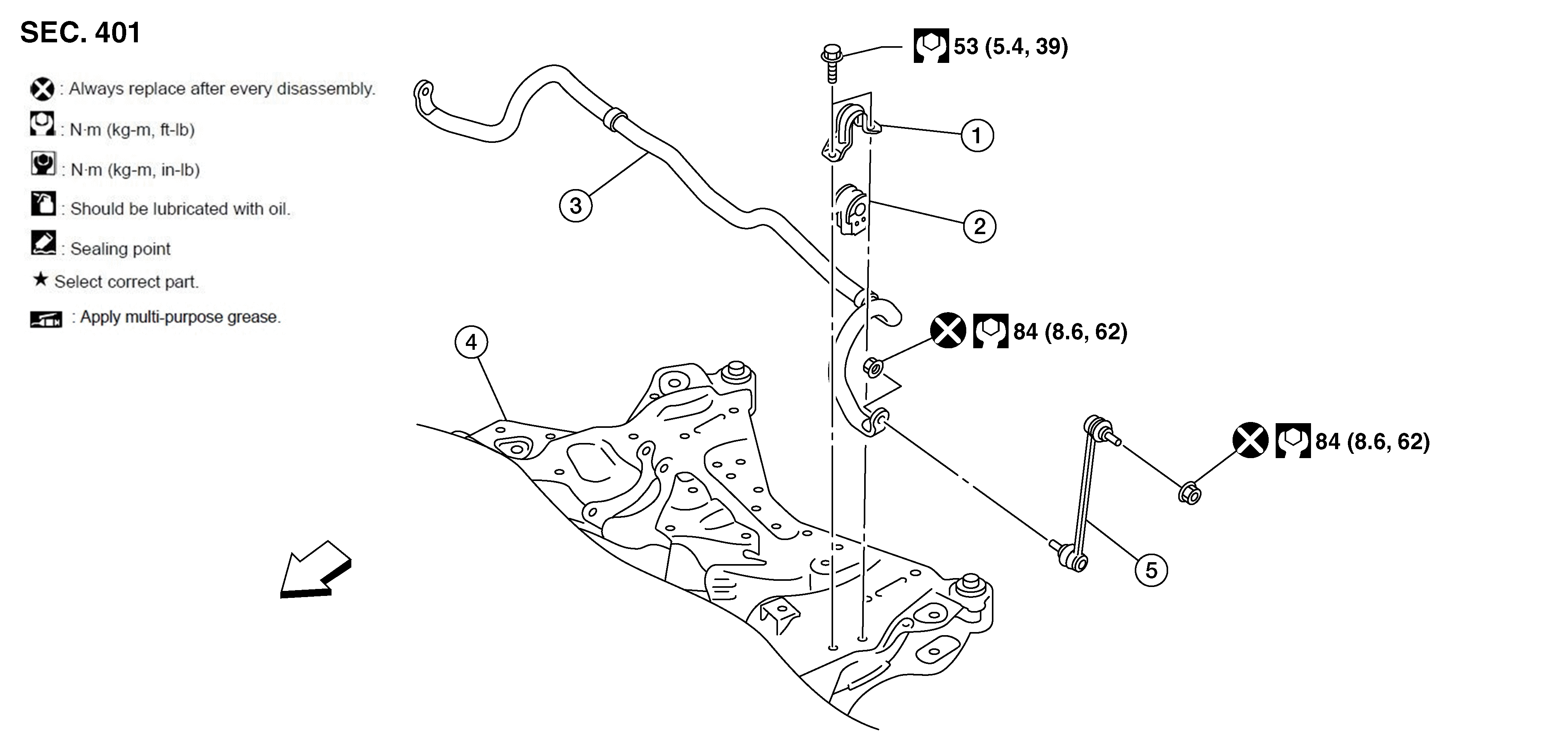

Fig 1: Front Stabilizer With Torque Specifications
GNSAWEIA0415Z-415Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer clamp

2.

Stabilizer bushing

3.

Stabilizer

4.

Front suspension member

5.

Stabilizer connecting rod

SYMBOL

Front
