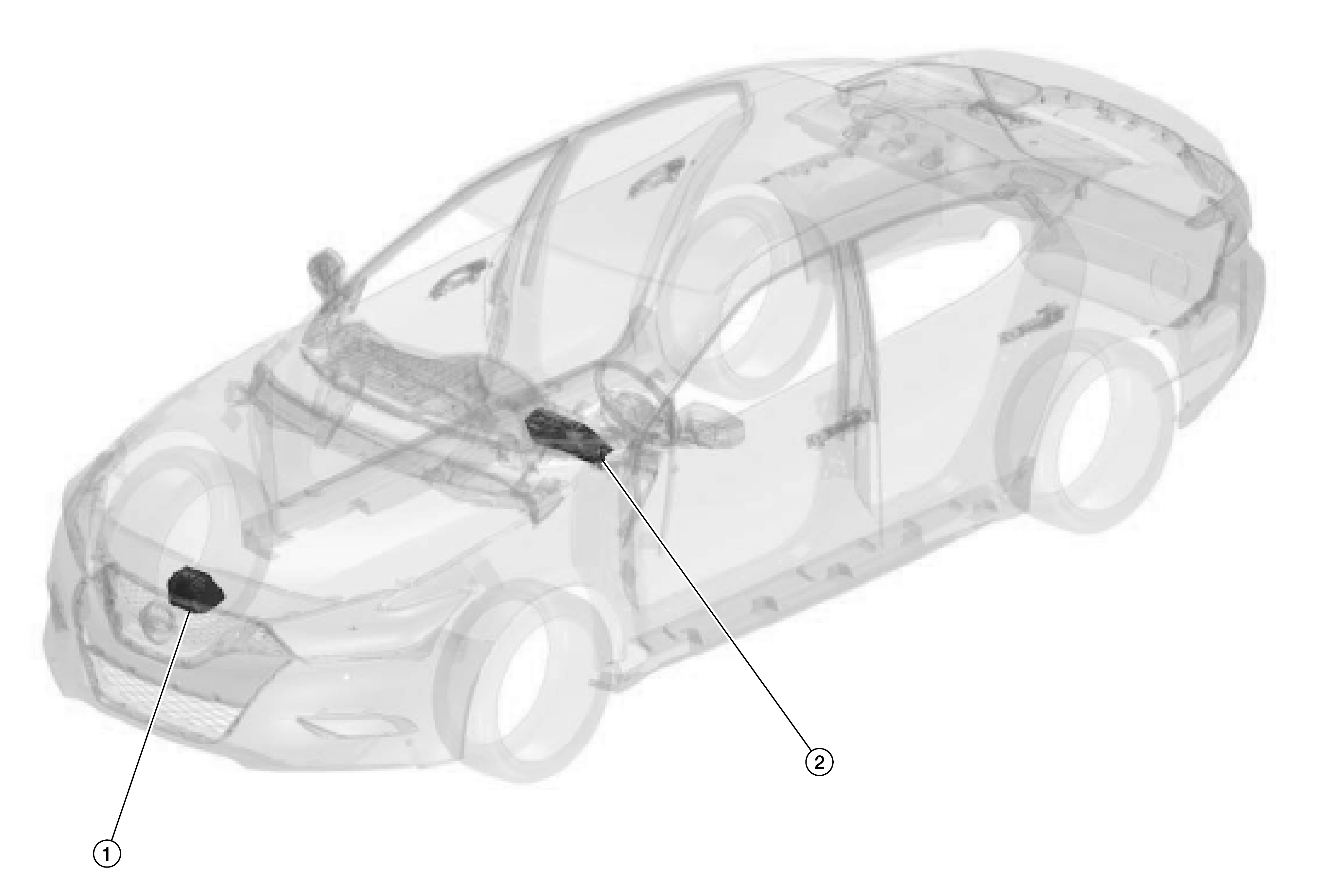

Component Location
|
No. |
Component |
Function |
|
1. |
Generator (IC regulator) |
The IC regulator controls the generator voltage based on the received PWM command signal. When there is no PWM command signal, the generator performs the normal power generation according to the characteristic of the IC regulator. |
|
2. |
Combination meter (Charge warning lamp) |
The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while generator is operating:
|
