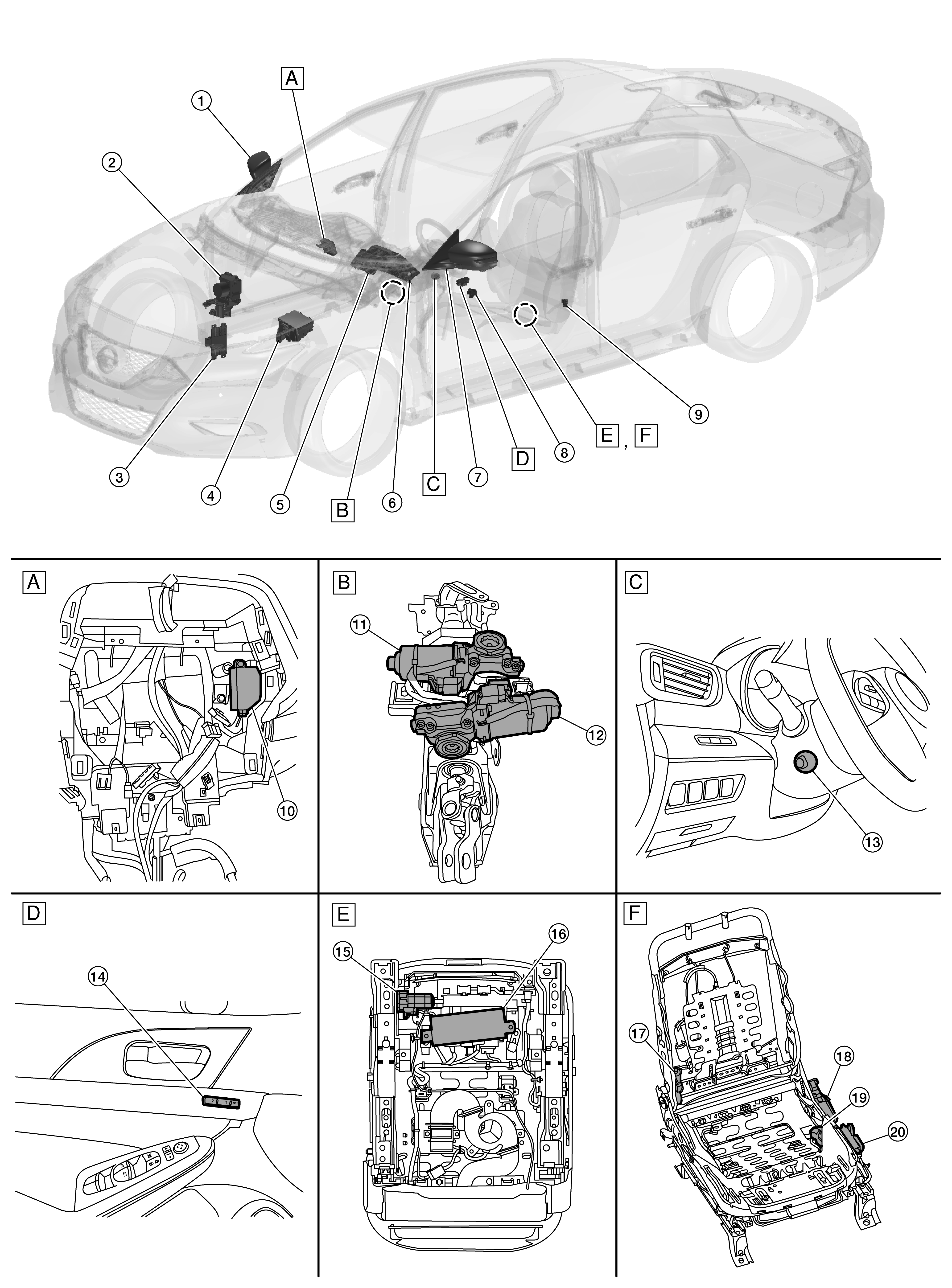

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

A.	LH side of instrument panel (view with instrument panel removed)	B.	Steering column (view with steering column removed)	C.	Left hand side of steering column
D.	View of left front door finisher	E.	Driver seat bottom (view with seat removed)	F.	LH side of driver seat (view with seat disassembled)

No.	Component		Function
1.	Door Mirror (RH)	Door Mirror Motor	Makes mirror face operate from side to side and up and down with the electric power that automatic drive positioner control unit supplies. Refer to Component Location for detailed installation location.
		Mirror Sensor	Mirror sensor is installed to door mirror. The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated. Automatic drive positioner control unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals. Refer to Component Location for detailed installation location.
2.	ABS Actuator And Electric Unit (Control Unit)		Transmits the vehicle speed signal to driver seat control unit via CAN communication. Refer to Component Location for detailed installation location.
3.	TCM		Refer to Component Location .
4.	IPDM E/R		Transmits the detention switch signal to driver seat control unit via CAN communication. Refer to Component Location for detailed installation location.
5.	BCM		Recognizes the following statuses and transmits them to driver seat control unit via CAN communication: Handle position: LHD Driver door: OPEN/CLOSE Ignition switch position: ACC/ON Door lock: UNLOCK (with Intelligent Key or driver side door request switch operation) Key ID Starter: CRANKING/OTHER Refer to Component Location for detailed installation location.
6.	Combination Meter		Transmits the vehicle speed signal to driver seat control unit via CAN communication.
7.	Door Mirror (LH)	Door Mirror Motor	Makes mirror face operate from side to side and up and down with the electric power that automatic drive positioner control unit supplies. Refer to Component Location for detailed installation location.
		Mirror Sensor	Mirror sensor is installed to door mirror. The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated. Automatic drive positioner control unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals. Refer to Component Location for detailed installation location.
8.	Door Mirror Remote Control Switch	Mirror Switch	Mirror switch is integrated in door mirror remote control switch. It operates angle of door mirror face. It transmits mirror face adjust operation to automatic drive positioner control unit. Refer to Door Mirror Remote Control Switch for detailed installation location.
		Select Switch	Select switch is integrated in door mirror remote control switch. Select switch has three positions (L, N and R). It changes operating door mirror motor by transmitting control signal to automatic drive positioner control unit. Refer to Door Mirror Remote Control Switch for detailed installation location.
9.	Front Door Switch (LH)		Detects door open/close condition and transmits it to BCM. Refer to Component Location for detailed installation location.
10.	Automatic Drive Positioner Control Unit		Refer to Automatic Drive Positioner Control Unit .
11.	Tilt Motor	Tilt Motor	Refer to Tilt & Telescopic Motor .
		Tilt Sensor
12.	Telescopic Motor	Telescopic Motor	Refer to Tilt & Telescopic Motor .
		Telescopic Sensor
13.	ADP Steering Switch		Refer to ADP Steering Switch .
14.	Seat Memory Switch		Refer to Seat Memory Switch .
15.	Sliding Motor LH	Sliding Motor	Sliding motor is installed to the seat cushion frame. Sliding motor is activated with driver seat control unit. Slides the seat forward/backward by changing the rotation direction of sliding motor.
		Sliding Sensor	Sliding sensor is integrated in sliding motor. The pulse signal is input to driver seat control unit when sliding is performed. Driver seat control unit counts the pulse and calculates the sliding amount of the seat.
16.	Driver Seat Control Unit		Refer to Driver Seat Control Unit .
17.	Reclining Motor LH	Reclining Motor	Reclining motor is installed to seat back frame. Reclining motor is activated with driver seat control unit. Seatback is reclined forward/backward by changing the rotation direction of reclining motor.
		Reclining Sensor	Reclining sensor is integrated in reclining motor. The pulse signal is input to driver seat control unit when the reclining is operated. Driver seat control unit counts the pulse and calculates the reclining amount of the seat.
18.	Lifting Motor LH (Rear)	Lifting Motor	Lifting motor (rear) is installed to seat frame assembly (driver side). Lifting motor (rear) is activated with driver seat control unit. Lifting motor (rear) is moved upward/downward by changing the rotation direction of lifting motor (rear).
		Lifting Sensor	Lifting sensor (rear) is installed to seat side cushion frame. The pulse signal is input to driver seat control unit when lifting (rear) is operated. Driver seat control unit counts the pulse and calculates the lifting (rear) amount of the seat.
19.	Lifting Motor LH (Front)	Lifting Motor	Lifting motor (front) is installed to seat frame assembly (driver side). Lifting motor is activated with driver seat control unit. Lifting motor (front) is moved upward/downward by changing the rotation direction of lifting motor (front).
		Lifting Sensor	Lifting sensor (front) is installed in lifting motor (front). When lifting motor (front) operates, pulse signal is transmitted to driver seat control unit from lifting sensor. Driver seat control unit counts the pulse and calculates the lift position (front) of the seat.
20.	Power Seat Switch LH	Sliding Switch	Sliding switch is equipped to power seat switch on seat cushion side surface. The operation signal is input to driver seat control unit when sliding switch is operated.
		Reclining Switch	Reclining switch is equipped to power seat switch on seat cushion side surface. The operation signal is input to driver seat control unit when reclining switch is operated.
		Lifting Switch (Front)	Lifting switch (front) is equipped to power seat switch on seat cushion side surface. The operation signal is input to driver seat control unit when lifting switch (front) is operated.
		Lifting Switch (Rear)	Lifting switch (rear) is equipped to power seat switch on seat cushion side surface. The operation signal is input to driver seat control unit when lifting switch (rear) is operated.
