Exploded View

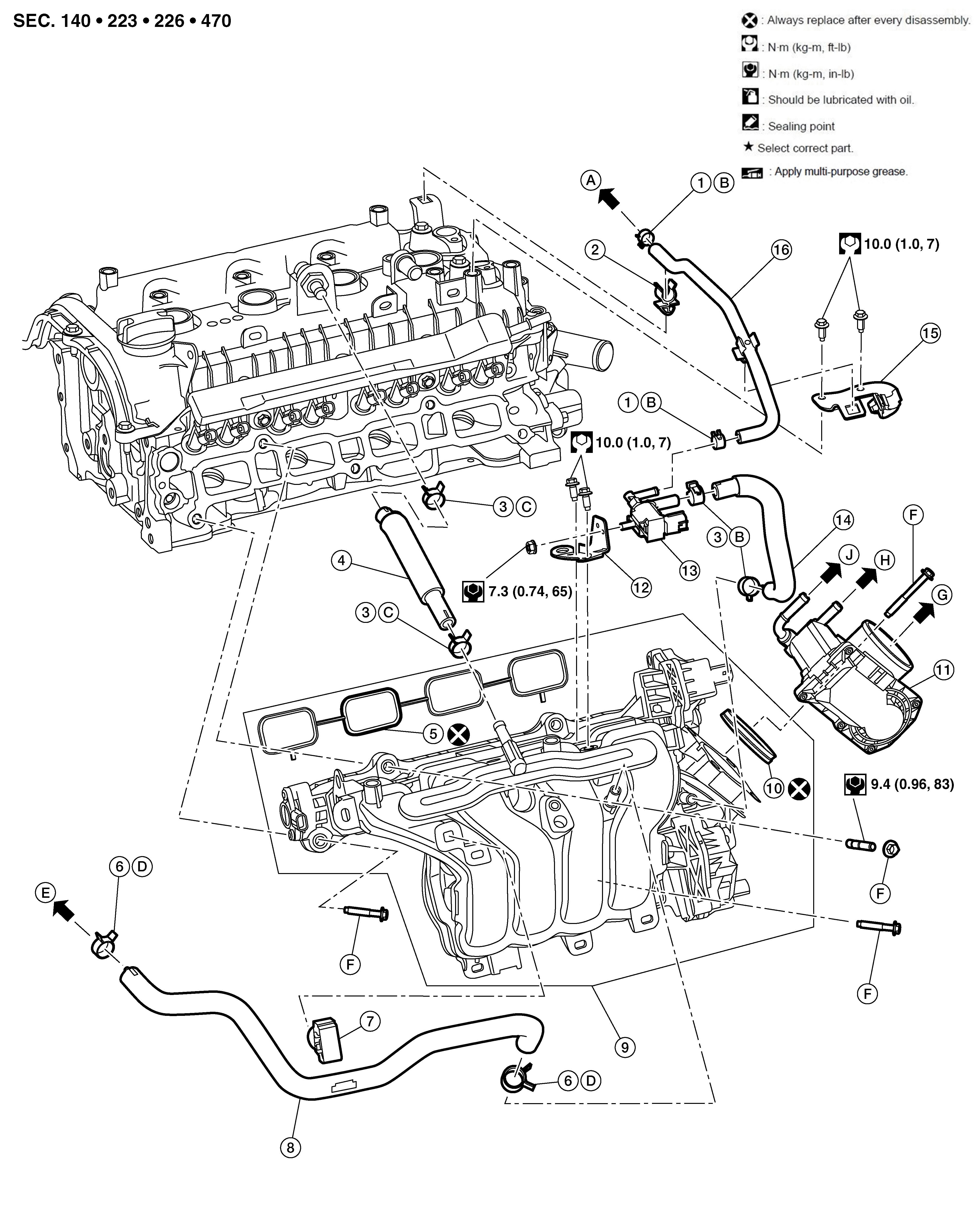

Fig 1: Intake Manifold With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Clip	3.	Clamp
4.	PCV hose	5.	Intake manifold gasket	6.	Clamp
7.	Clip	8.	Vacuum hose	9.	Intake manifold
10.	Electric throttle control actuator gasket	11.	Electric throttle control actuator	12.	EVAP canister purge volume control solenoid valve bracket
13.	EVAP canister purge volume control solenoid valve	14.	Vacuum hose	15.	Fuel feed hose bracket
16.	EVAP service port	A.	To centralized under-floor piping	B.	Refer to Removal and Installation .
C.	Refer to Removal and Installation .	D.	Refer to Removal and Installation .	E.	To brake booster. Refer to Exploded View .
F.	Refer to Removal and Installation .	G.	To air duct. Refer to Exploded View .	H.	To water outlet. Refer to Exploded View .
J.	To water outlet. Refer to Exploded View .
