Exploded View

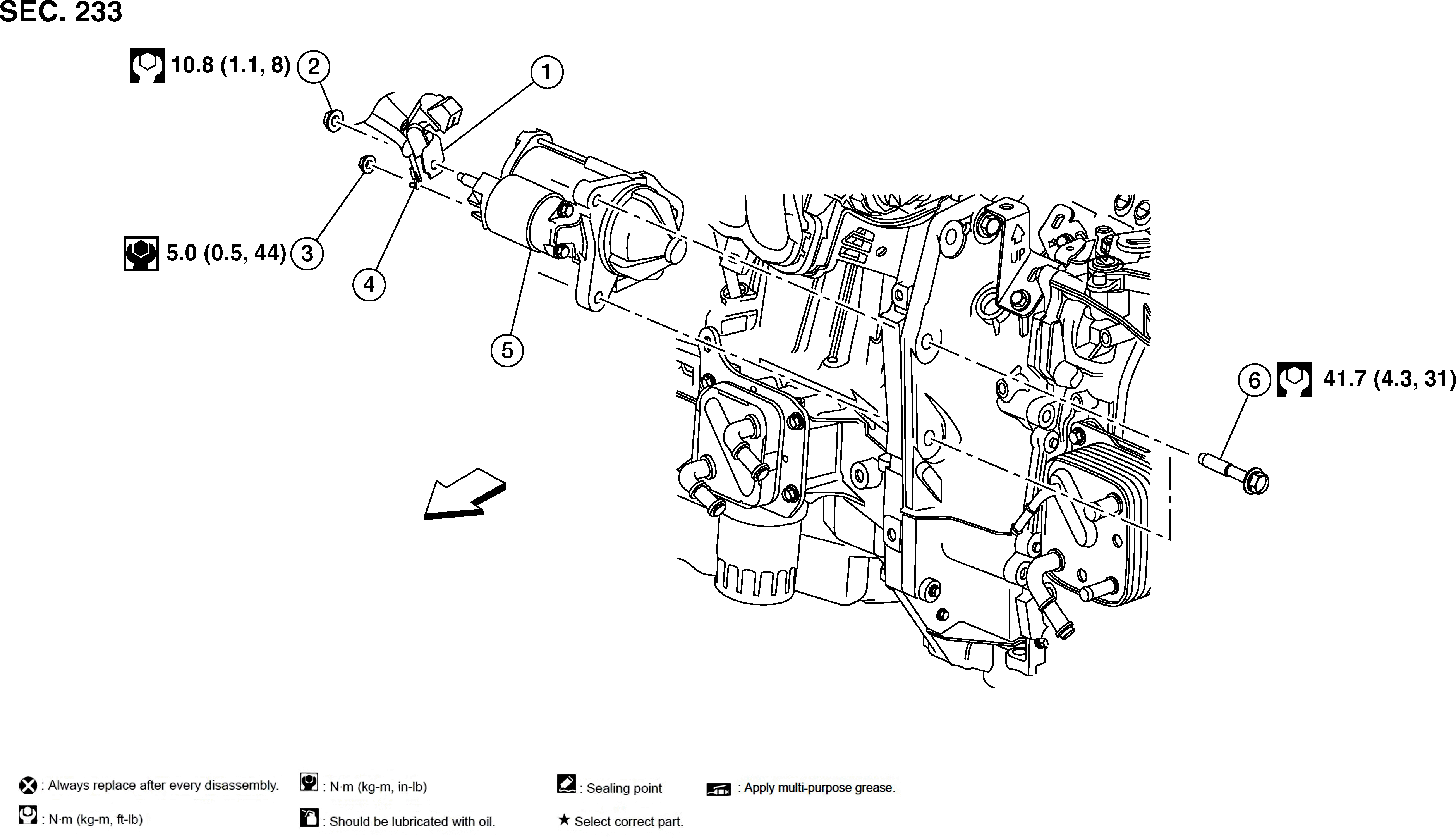

Fig 1: Starter Motor With Torque Specifications

GNSALBIA0328Z-328

Courtesy of NISSAN NORTH AMERICA, INC.

1.	"B" terminal harness	2.	"B" terminal nut	3.	"S" terminal nut
4.	"S" terminal harness	5.	Starter motor	6.	Bolt
	Front
