Component Inspection

1. Turn ignition switch OFF.
2. Disconnect exhaust valve timing control solenoid valve harness connector.
3. Check resistance between exhaust valve timing control solenoid valve terminals as per the following.

   Exhaust valve timing control solenoid valve		Resistance
   +	-
   Terminal
   1	2	7.0 - 7.7 Ω [at 20°C (68°F)]
   1	Ground	∞Ω (Continuity should not exist)
   2

Is the inspection result normal?

YES

GO TO 2.

NO

Replace exhaust valve timing control solenoid valve. Refer to Exploded View .

1. Remove exhaust valve timing control solenoid valve. Refer to Exploded View .

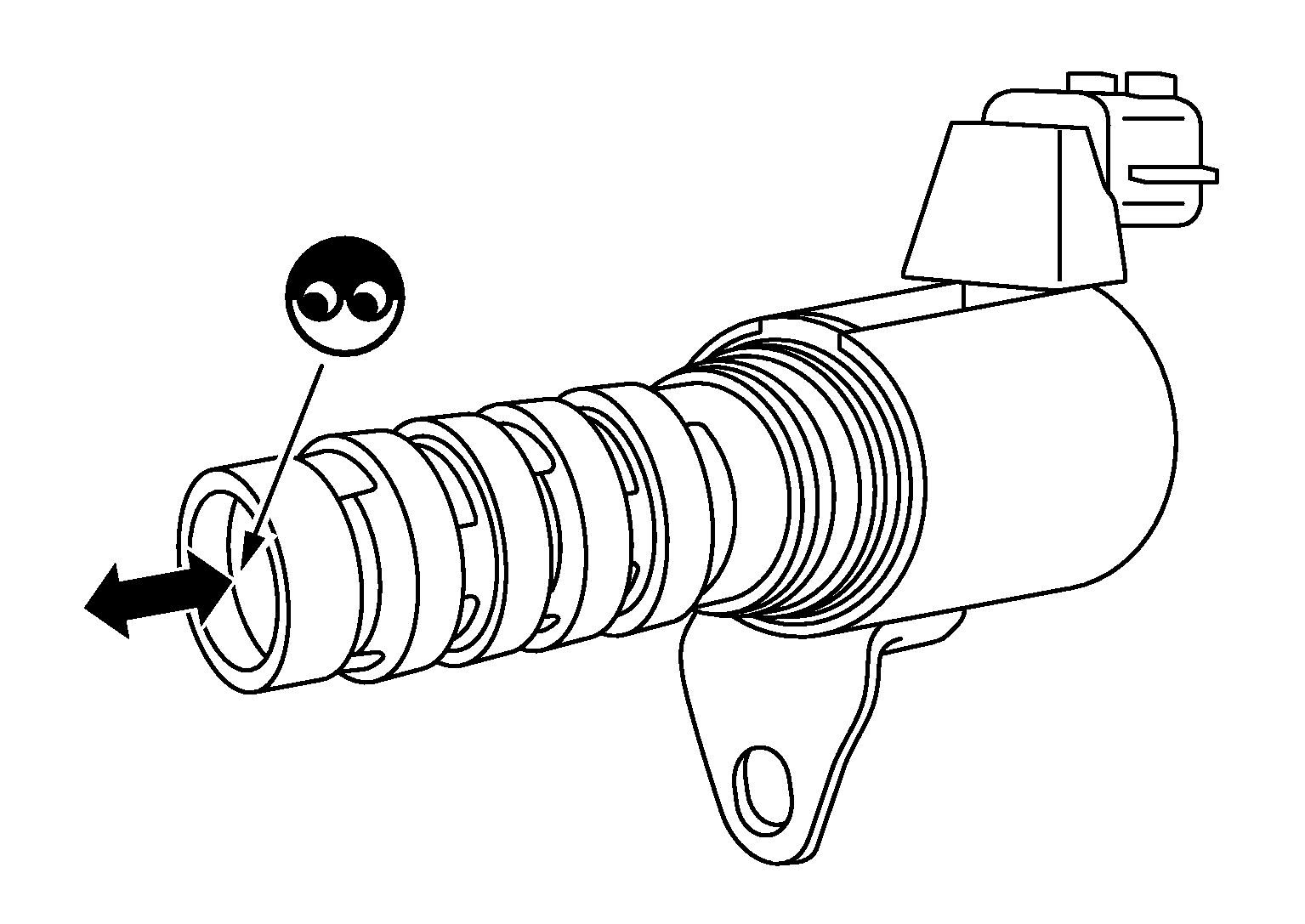

2. Provide 12 V DC between exhaust valve timing control solenoid valve terminals 1 and 2, and then interrupt it. Check that the plunger moves as shown in the figure.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION: Do not apply 12 V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in exhaust valve timing control solenoid valve.
   NOTE: Always replace O-ring when exhaust valve timing control solenoid valve is removed.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace exhaust valve timing control solenoid valve. Refer to Exploded View .
