Exploded View

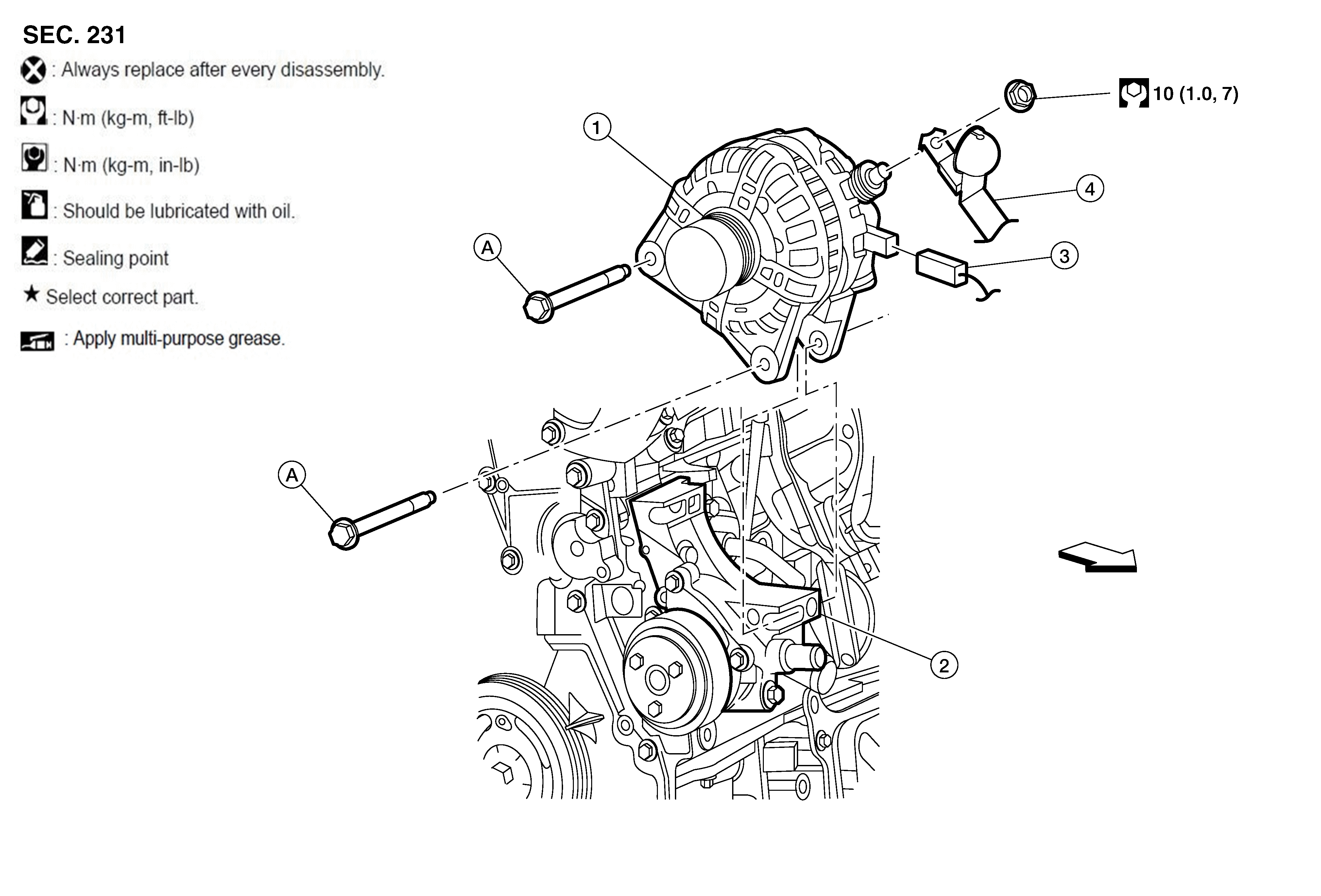

Fig 1: Generator With Torque Specifications
GNSAWBIA3038Z-038SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Generator

2.

Water pump housing

3.

Harness connector

4.

"B" terminal harness

A.

Refer to Removal and Installation

SYMBOL

FRONT
