Exploded View

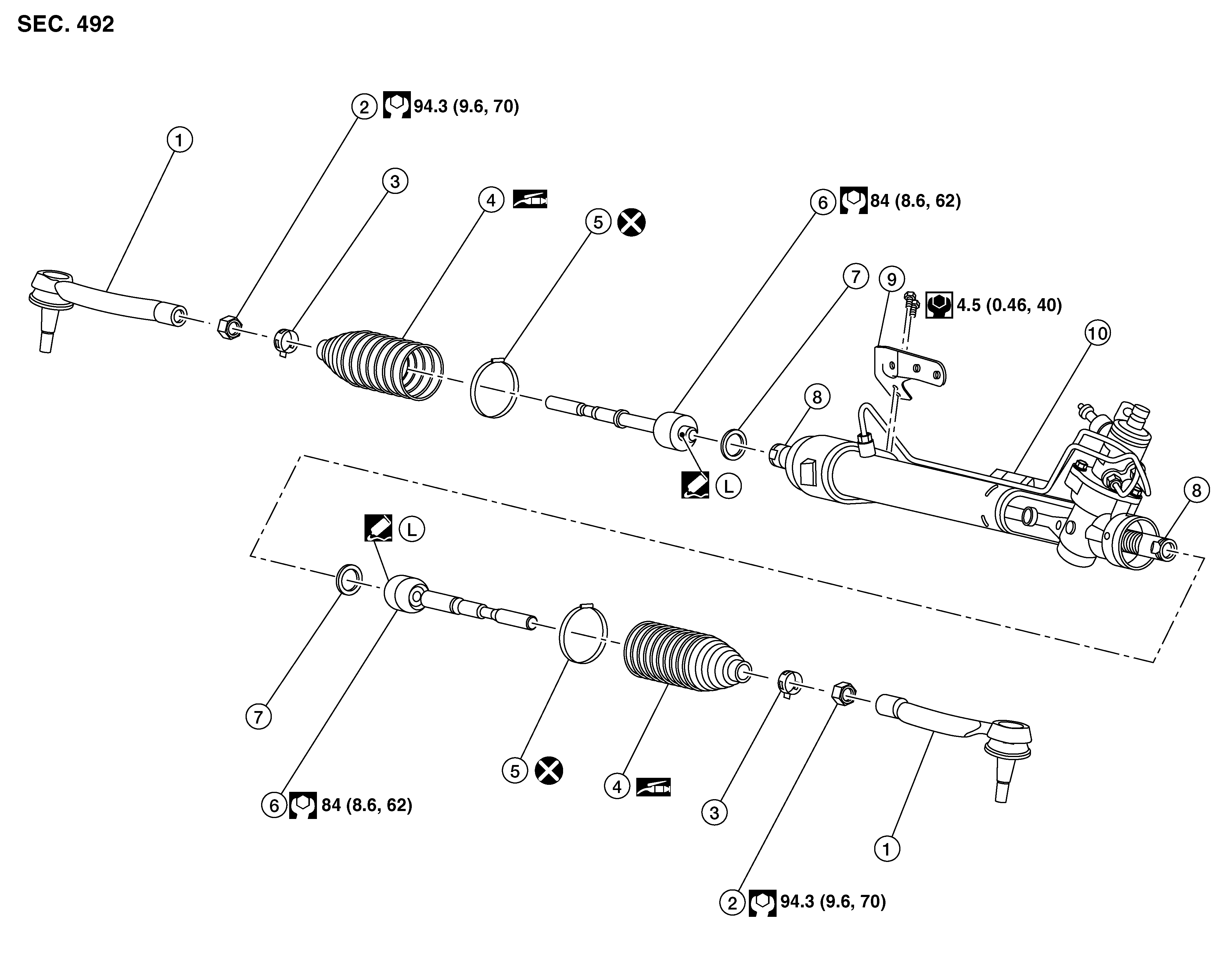

Fig 1: Exploded View of UNIT DISASSEMBLY AND ASSEMBLY With Torque Specifications
GNSDB121352Courtesy of NISSAN NORTH AMERICA, INC.

1.

Outer socket

2.

Inner socket lock nut

3.

Small boot clamp

4.

Boot

5.

Large boot clamp

6.

Inner socket

7.

Spacer

8.

Rack bar (not serviceable)

9.

Bracket

10.

Steering gear
