Nissan-Datsun
>>
2018
>>
Altima S
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Removal And Installation
>>
Generator
>>
VQ35DE
>>

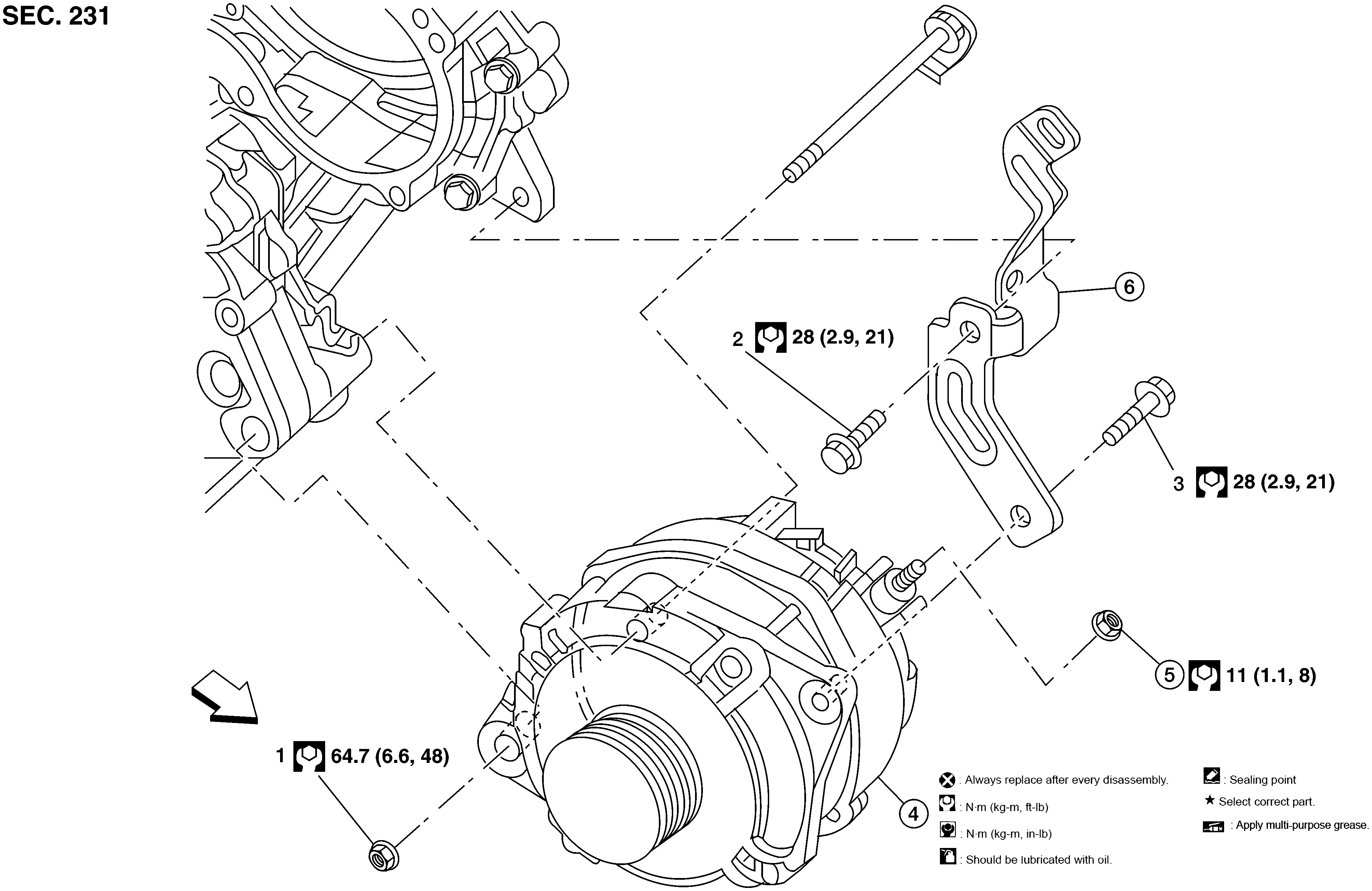

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1 - 3
Tightening sequence
4.
Generator
5.
B terminal nut
6.
Generator bracket
Front
Courtesy of NISSAN NORTH AMERICA, INC.
