Revised Wheel Alignment Specifications (NTB17-040B)

WARNING: This page is about the Versa Note S Plus, which is a different variant/trim than selected.
Publication date: 2018-09-24
Reference number: NTB17-040B
Supersedes refnos: NTB17-040, NTB17-040A

REVISED WHEEL ALIGNMENT SPECIFICATIONS

REVISED WHEEL ALIGNMENT SPECIFICATIONS

SERVICE CAMPAIGN BULLETIN

Reference Number(s): NTB17-040b, Date of Issue:  September 24, 2018
NISSAN: 2016-2017 Altima; 2016-2017 Frontier; 2018-2019 Kicks; 2016-2017 LEAF; 2016-2017 Maxima; 2016-2017 Murano; 2016 Murano Hybrid; 2016-2017 NV200; 2016-2017 NV Cargo and Passenger Van; 2016-2017 Pathfinder; 2016-2017 Rogue; 2017 Rogue Hybrid; 2016-2017 TAXI; 2016-2018 Versa Note; 2016-2018 Versa Sedan
CLASSIFICATION: FA17-001b
APPLIED VEHICLES: 2016-2017 Altima (L33); 2016-2017 Frontier (D40); 2018-2019 Kicks (P15); 2016-2017 LEAF (ZE0); 2016-2017 Maxima (A36); 2016-2017 Murano (Z52); 2016 Murano Hybrid (Z52); 2016-2017 NV200 (M20); 2016-2017 NV Cargo and Passenger Van (F80); 2016-2017 Pathfinder (R52); 2016-2017 Rogue (T32); 2017 Rogue Hybrid (T32); 2016-2017 TAXI; 2016-2018 Versa Note (E12); 2016-2018 Versa Sedan (N17)

SERVICE INFORMATION

For the Applied Vehicles, some wheel alignment specifications listed in the Front Suspension and Rear Suspension sections of the Electronic Service Manual (ESM) have been revised.

Updated ESMs will be distributed to the field as quickly as possible.

Until the updated ESMs are made available, please use the corrected specifications listed in this bulletin.

2016-2017 ALTIMA

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
Market United States Canada
Tire size 215/60R16 and 215/55R17 235/45R18 215/60R16, and 215/55R17 235/45R18
Camber Degree minute (Decimal degree) Minimum -1° 09' 18" (-1.155°)
Nominal -0° 19'48" (-0.330°)
Maximum 0° 29' 42" (0.495°)
Difference (LH - RH) 0° 00' 00" ± 0° 33' 00" (0° ± 0.55°)
Caster(2) Degree minute (Decimal degree) Minimum 4°01'12" (4.D2°) 4° 06'00" (4.10°) 4° 01' 12" (4.02°)
Nominal 4° 55' 12" (4.92°) 5° 00' 00" (5.00°) 4° 55' 12" (4.92°)
Maximum 5° 49' 12" (5.82°) 5° 54' 00" (5.90°) 5° 49' 12" (5.82°)
Kingpin inclination Degree minute (Decimal degree) Minimum 13° 34'48" (13.58°) 13° 40' 12" (13.67°) 13° 34'48" (13.58°) 13° 40'12" (13.67°)
Nominal 14° 19'48" (14.33°) 14° 25' 12" (14.42°) 14° 19'48" (14.33°) 14° 25'12" (14.42°)
Maximum 15° 04'48" (15.08°) 15° 10'12" (15.17°) 15° 04'48" (15.08°) 15° 10' 12" (15.17°)
G12085657
Total toe-in Distance (A - B) Minimum Out 1.7 mm (Out 0.067 in)
Nominal In 0.8 mm (In 0.031 in)
Maximum In 3.3 mm (In 0.130 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 07'48" (Out 0.13°)
Nominal In 0° 04' 12" (In O.D 7°)
Maximum In 0° 16' 12" (In 0.2 7°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) For the caster angle, the difference between right and left against the ground surface shall be ± 0° 30' (± 0.50°) maximum.

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen*)
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -1° 24'36" (-1.41°)
Nominal -0° 39' 36" (-0.66°)
Maximum 0" 05' 24" (0.09°)
G12085658
Total toe-In Distance (A - B) Minimum Out 2.6 mm (Out 0.102 in)
Nominal In 1.4 mm (In 0.055 in)
Maximum In 5.4 mm (In 0.213 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0°10' 48" (Out 0.18°)
Nominal In 0° 07' 12" (In 0.12°)
Maximum In 0° 25' 12" (In 0.42°)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2017 FRONTIER

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())()
REAR WHEEL ALIGNMENT SPECIFICATIONS

Drive type 2WD 4WD
Camber Degree minute (decimal degree) Minimum -0° 34' (-0.575°) -0° 19'(-0.325°)
Nominal 0° 15'(0.25°) 0° 30' (0.50°)
Maximum 1" 04'(1.075°) 1° 19'(1.325°)
Cross camber 0° 00' ± 0° 49' (0.00°± 0.825°) 0° 00' ± 0° 49' (0.00° ± 0.825°)
Caster Degree minute (decimal degree) Minimum 1° 51' (1.85°) 1° 36'(1.6°)
Nominal 2° 45' (2.75°) 2° 30' (2.5°)
Maximum 3° 39' (3.65°) 3° 24' (3.4°)
Cross caster 0° 00' ± 0° 49' (0.00° ± 0.825°) 0° 00' ± 0° 49' (0.00° ± 0.825°)
Kingpin inclination Degree minute (decimal degree) Nominal 13° 00' 00" (13.000°) 12° 45'00" (12.750°)
G12085659
Total toe-in Distance Minimum Out 2.5 mm (Out 0.09 in)
Nominal In 4.0 mm (In 0.16 in)
Maximum In 10 5 mm (In 0.41 in)
Angle Degree minute (Decimal degree) Minimum Out 0° 03'(Out 0.05°)
Nominal In 0° 09' (In 0.15°)
Maximum In 0° 21'(In 0.35°)
Wheel turning angle (full turn) Inside Degree minute (Decimal degree) 33° 28' 12" - 35° 28' 12"(2) (33.47°-35.47°) 33° 37' 48" - 35° 37' 48"(4) (33.63°-35.63°)
Outside Degree minute (Decimal degree) 29° 27' 00" -31° 27' 00"(3) (29.45°-31.45°) 29° 49' 12"-31° 49' 12"(5) (29.82°-31.82°)
(1) Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
(2) Target value 35° 28' 12" (35.47°)
(3) Target value 31° 27' 00" (31.45°)
(4) Target value 35° 37' 48" (35.63°)
(5) Target value 31° 49' 12" (31.82°)
(6) Some vehicles mat be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.

2018-2019 KICKS

Front Wheel Alignment Specifications

Wheel Alignment (Unladen*)
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -0° 50 ' (-0.84°)
Nominal 0° 05 ' (0.08°)
Maximum 1° 00'(1.00°)
LH and RH difference*1 0° 50 ' (0.82°)
Caster Degree minute (Decimal degree) Minimum 4° 40 ' (4.67°)
Nominal 5° 30' (5.50°)
Maximum 6° 20' (6.33°)
LH and RH difference*1 0° 50 ' (0.82°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 25'00" (11.42°)
Nominal 12° 10'00" (12.17°)
Maximum 12° 55' 00" (12.92°)
G12085660
Total toe-in Distance (A - B) Minimum Out 1.7 mm (Out 0.067 in)
Nominal In 0.8 mm (In 0.031 in)
Maximum In 3.3 mm (In 0.130 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 09'(Out 0.15°)
Nominal In 0° 05 ' (In 0.08°)
Maximum In 0° 18'(In 0.31°)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2017 LEAF

Front Wheel Alignment Specifications

Wheel Alignment
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -1° 19' 30" (-1.325°)
Nominal -0° 30' 00" (-0.50°)
Maximum 0° 19'30" (0.325°)
LH and RH difference*1 -0° 48' (-0.80°) - 0° 48' (0.80°)
Caster Degree minute (Decimal degree) Minimum 4° 10' 48" (4.18°)
Nominal 5° 05' 00" (5.08°)
Maximum 5° 58' 48" (5.98°)
LH and RH difference*1 -0° 48' (-0.80°) - 0° 48' (0.80°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 25' 00" (11.42°)
Nominal 12° 10' 00" (12.17°)
Maximum 12° 55' 00" (12.92°)
G12085661
Total toe-in Distance (A - B) Minimum Out 2 mm (Out 0.08 in)
Nominal 0 mm (0.00 in)
Maximum In 2 mm (In 0.08 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 12'00" (Out 0.20°)
Nominal 0° 0' 00" (0.00°)
Maximum In 0° 12'00" (In 0.20°)

Measure values under unladen*2 conditions.

*1: A difference when assuming the LH a standard.

*2: Fluids and lubricants are full. Tire repair kit and mats are in designated positions.

Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swing torque 0.5-4.9 N.m (0.06-0.49 kg-m, 5-43 in-lb)
Measurement on spring balance 15.4 - 150.8 N (1.6-15.3 kg, 3.5-33.8 lb)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment
REAR WHEEL ALIGNMENT SPECIFICATIONS

Tire size 205/55R16 215/50R17
Camber Degree minute (Decimal degree) Minimum -2° 10'12" (-2.17°)
Nominal -1° 25'12" (-1.42°)
Maximum -0°40'12"(-0.67°)
G12085662
Total toe-in Distance (A - B) Minimum In 1.0 mm (In 0.04 in)
Nominal In 5.0 mm (In 0,20 in)
Maximum In 9.0 mm (In 0.35 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum In 0°' 12" (In 0.17°)
Nominal In 0° 30' 00" (In 0.5°)
Maximum In 0° 49'48" (In 0.83°)

Measure values under unladen* conditions.

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

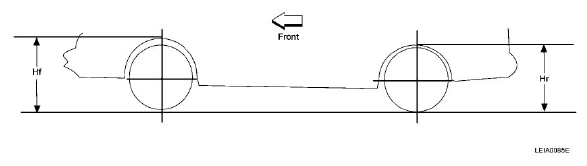

Wheelarch Height
UNITED STATES
G12085663
WHEELARCH HEIGHT SPECIFICATIONS

Tire size 205/55R16 215/50R17
Front (Hf) 706 mm (27.80 in) 714 mm (28.11 in)
Rear (Hr) 708 mm (27.87 in) 714 mm (28.11 in)

Measure values under unladen* conditions.

*: Fluid and lubricants are full. Tire repair kit and mats are in designated positions.

2016-2017 MAXIMA

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
UNITED STATES & CANADA
FRONT WHEEL ALIGNMENT SPECIFICATIONS (UNITED STATES & CANADA)

Tire size P245/45R1S P245/40R19
Camber Degree minute (Decimal degree) Minimum -1° 12' 54" (-1.215°)
Nominal -0° 23' 24" (-0.390°)
Maximum 0° 26' 06" (0.435°)
(LH) and (RH) difference 0° 00' 00" ± 0° 33' 00" (0.00°+ 0.55°)
Caster Degree minute (Decimal degree) Minimum 3° 54' 00" (3.90°) 4° 00' 00" (4.00°)
Nominal 4° 48' 00" (4.80°) 4° 54' 00" (4.90°)
Maximum 5° 42' 00" (5.70°) 5° 48' 00" (5.80°)
(LH) and (RH) difference 0° 00' 00" + 0° 30' 00" (0.00°+ 0.50°)
Kingpin inclination Degree minute (Decimal degree) 14° 24' 00" ± 0° 45' 00" (14.40°+ 0.75°)
G12085664
Total toe-in Distance (A - B) Minimum Out 2.2 mm (Out 0.087 in)
Nominal In 0.8 mm (In 0,031 in)
Maximum In 3.8 mm (In 0.150 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 07'48" (Out 0.13°)
Nominal In 0° 04' 12" (In 0.07°)
Maximum In 0° 16' 12" (In 0.27°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
MEXICO
FRONT WHEEL ALIGNMENT SPECIFICATIONS (MEXICO)

Camber Degree minute (Decimal degree) Minimum -1° 05'06" (-1.085°)
Nominal -0° 15' 36" (-0.260°)
Maximum 0° 33' 54" (0.565°)
(LH) and (RH) difference 0°00' 00" ± 0° 33' 00" (0.00°+ 0.55°)
Caster Degree minute (Decimal degree) Minimum 3° 36' 00" (3.60°)
Nominal 4° 30' 00" (4.50°)
Maximum 5° 24' 00" (5.40°)
(LH) and (RH) difference 0° 00' 00" + 0° 30' 00" (0.00°+ 0.50°)
Kingpin inclination Degree minute (Decimal degree) 14° 10'12" ± 0° 45'00" (14.17°+ 0.75°)
G12085665
Total toe-in Distance (A - B) Minimum Out 2.2 mm (Out 0.087 in)
Nominal In 0.8 mm (In 0.031 in)
Maximum In 3.8 mm (In 0.150 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 07' 48" (Out 0.13°)
Nominal In 0° 04' 12" (In 0.07°)
Maximum In 0°16' 12" (In 0.27°)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swinging torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Rotating torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Axial end play 0.1 mm (0.004 in)

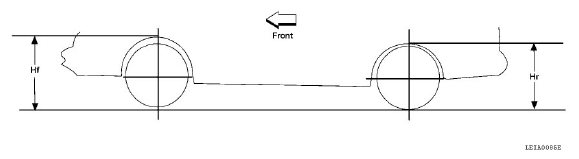

Wheelarch Height (Unladen*1 )
UNITED STATES & CANADA

Unit: mm (in)

G12085666
WHEELARCH HEIGHT SPECIFICATIONS

Tire size P245/45R18 P245/40R19
Front (Hf) 708 (27.87) 704 (27.72)
Rear (Hr) 719 (28.31) 712 (28.03)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen*1 )
UNITED STATES & CANADA
REAR WHEEL ALIGNMENT SPECIFICATIONS (UNITED STATES & CANADA)

Market United States Canada
Tire size P245/45R18 P245/40R19 P245/45R18 P245/40R19
Camber Degree minute (Decimal degree) Minimum -1° 08'24" (-1.14°) -1° 18' 00" (-1.30°) -1° 05' 24" (-1.09°) -1° 15' 36" (-1.26°)
Nominal -0° 23' 24" (-0.39°) -0° 33' 00" (-0.55°) -0° 20' 24" (-0.34°) -0° 33' 36" (-0.51°)
Maximum 0° 21" 36" (0.36°) 0° 12'00" (0.20°) 0° 24' 36" (0.41°) 0° 14' 24" (0.24°)
G12085667
Total toe-in Distance (A-B) Minimum Out 1.4 mm (Out 0.055 in) Out 1.0 mm (Out 0.039 in) Out 1.4 mm (Out 0.055 in) Out 1.0 mm (Out 0.039 in)
Nominal In 2.6 mm (In 0.102 in) In 3.0 mm (In 0.118 in) In 2.6 mm (In 0.102 in) In 3.0 mm (In 0.118 in)
Maximum In 6.6 mm (In 0.260 in) In 7.0 mm (In 0.276 in) In 6.6 mm (In 0.260 in) In 7.0 mm (In 0.276 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 04' 48" (Out 0.08°) Out 0° 02' 24" (Out 0.04°) Out 0° 04' 48" (Out 0.08°) Out 0° 02' 24" (Out 0.04°)
Nominal In 0° 13'12" (In 0.22°) In 0° 15'36" (In 0.26°) In 0° 13' 12" (In 0.22°) In 0° 15' 36" (in 0.26°)
Maximum In 0° 31'12" (In 0.52°) In 0° 33'36" (In 0.56°) In0°31' 12" (In 0.52°) In 0° 33' 36" (In 0.56°)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

MEXICO
REAR WHEEL ALIGNMENT SPECIFICATIONS (MEXICO)

Tire size P245/45R18 P245/40R19
Camber Degree minute (Decimal degree) Minimum -1° 12' 36" (-1.21°)
Nominal -0° 27' 36" (-0.46°)
Maximum 0° 17' 24" (0.29°)
G12085668
Total toe-in Distance (A-B) Minimum Out 3.5 mm (Out 0.138 in)
Nominal In 0.5 mm (In 0.020 in)
Maximum In 4.5 mm (In 0.177 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 00' 15'36" (Out 0.26°)
Nominal In 0° 02' 24" (In 0.04°)
Maximum In 0° 20' 24" (In 0.34°)

2016-2017 MURANO

Front Wheel Alignment Specifications

Wheel Alignment (Unladen*1 )
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Measurement wheel (LH)side (RH) side
Camber Degree minute (Decimal degree) Minimum -1° 04'30" (-1.075°)
Nominal -0° 15'00" (-0.25°)
Maximum 0° 34' 30" (0.575°)
Difference (LH-RH) 0° 0'±0° 33' (0°±0.55°)
Caster Degree minute (Decimal degree) Minimum 3° 51'00" (3.85°)
Nominal 4° 45' 00" (4.75")
Maximum 5° 39' 00" (5.65°)
(LH) and (RH) difference 0°30' (0.50°) Maximum
Kingpin inclination Degree minute (Decimal degree) Minimum 12° 00'(12.00°) 12° 15'(12.25°)
Nominal 12° 45'(12.75°) 13° 00'(13.00°)
Maximum 13° 30'(13.50°) 13° 45'(13.75°)
G12085669
Total toe-in Distance (A - B) Minimum Out 0.6 mm (Out 0.024 in)
Nominal In 1.4 mm (In 0.055 in)
Maximum In 3.4 mm (In 0.134 in)
Angle (LH) and (RH) Degree minute (Decimal degree) Minimum Out 0° 06'00" (Out 0.10°)
Nominal In 0° 06'00" (In 0.10°)
Maximum In 0° 18'00" (In 0.30°)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swinging torque Transverse link 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Rotating torque Transverse link 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Axial end play 0.1 mm (0.004 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -1° 30' 00" (-1.50°)
Nominal -0° 45' 00" (-0.75°)
Maximum 0° 00'00" (0.00°)
G12085670
Total toe-in Distance (A - B) Minimum Out 0.7 mm (Out 0.028 in)
Nominal In 3.3 mm (In 0.130 in)
Maximum In 7.3 mm (In 0.287 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 04' 12" (Out 0.07°)
Nominal In 0° 13'48" (In 0.23°)
Maximum In 0° 31'48" (In 0.53°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swinging torque 0.5 - 3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Rotating torque 0.5-3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Axial end play 0.1 mm (0.004 in)

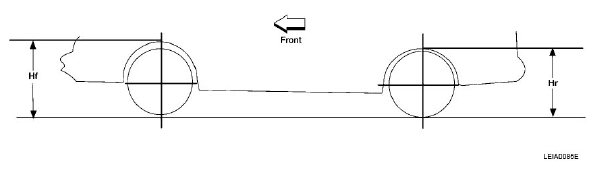

Wheelarch Height (Unladen*)
UNITED STATES
G12085671
WHEELARCH HEIGHT SPECIFICATIONS

Tire size 235/65R18 235/55R20
Front (Hf) 835 mm (32.87 in) 834 mm (32.83 in)
Rear (Hr) 824 mm (32.44 in) 822 mm (32.36 in)

2016 MURANO HYBRID

Front Wheel Alignment Specifications

Wheel Alignment (Unladen*1 )
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Measurement wheel (LH)side (RH)side
Camber Degree minute (Decimal degree) Minimum -1° 04'30" (-1.075°)
Nominal -0° 15'00" (-0.25°)
Maximum 0° 34' 30" (0.575°)
Difference (LH-RH) 0° 00' 00" ± 00° 33' 00" (0.0° ± 0.55°)
Caster Degree minute (Decimal degree) Minimum 3° 51' 00" (3.85°)
Nominal 4° 45' DO" (4.75°)
Maximum 5° 39' 00" (5.65°)
(LH) and (RH) difference 0° 30' 00" (0.50°) Maximum
Kingpin inclination Degree minute (Decimal degree) Minimum 12° 00'00" (12.00°) 12° 15'00" (12.25°)
Nominal 12° 45'00" (12.75°) 13° 00'00" (13.00°)
Maximum 13° 30'00" (13.50°) 13° 45'00" (13.75°)
G12085672
Total toe-in Distance (A - B) Minimum Out 0.6 mm (Out 0.024 in)
Nominal In 1.4 mm (In 0.055 in)
Maximum In 3.4 mm (In 0.134 in)
Angle (LH) and (RH) Degree minute (Decimal degree) Minimum Out 0° 06'00" (Out 0.10°)
Nominal In 0° 06' 00" (In 0.10°)
Maximum In 0° 18'00" (In 0.30°)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -1° 30' 00" (-1.50°)
Nominal - 0° 45' 00" (- 0.75°)
Maximum 0° 00'00" (0.00°)
G12085673
Total toe-in Distance (A - B) Minimum Out 0.7 mm (Out 0.028 in)
Nominal In 3.3 mm (In 0.130 in)
Maximum In 7.3 mm (In 0.287 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 04' 12" (Out 0.07°)
Nominal In 0" 13' 48" (In 0.23°)
Maximum In 0° 31' 48" (In 0.53°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2017 NV200

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
UNITED STATES and CANADA
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -1° 09'(-1.15°)
Nominal - 0° 20' (- 0.33°)
Maximum 0° 29' (0.49°)
(LH) and (RH) difference(2) - 0° 49' (- 0.825°) - 0° 49' (0.825°)
Caster Degree minute (Decimal degree) Minimum 3° 16' (3.27°)
Nominal 4° 10' (4.17°)
Maximum 5° 04' (5.07°)
(LH) and (RH) difference(2) - 0° 49' (- 0.825°) - 0° 49' (0.825°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 10' (11.17°)
Nominal 11° 55' (11.92°)
Maximum 12° 40'(12.67°)
G12085674
Total toe-in Distance (A - B) Minimum Out 1.0 mm (Out 0.039 in)
Nominal In 1.0 mm (In 0.039 in)
Maximum In 3.2 mm (In 0.125 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0°06'(Out 0.10°)
Nominal In 0° 06' (In 0.10°)
Maximum In 0° 18'(In 0.30°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) The difference when assuming the (LH) side is the standard.
Ball Joint
BALL JOINT SPECIFICATIONS

Swinging torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Rotating torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -2° 00' (-2.00=)
Nominal -1° 30' (-1.50°)
Maximum -1° 00' (-1.00°
G12085675
Total toe-in Distance (A - B) Minimum Out 2.0 mm (Out 0.079 in)
Nominal In 3.0 mm (In 0.118 in)
Maximum In 8.0 mm (In 0.315 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 14'(Out 0.23°)
Nominal In 0° 16' (In 0.27°)
Maximum In 0° 46'(In 0.77°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

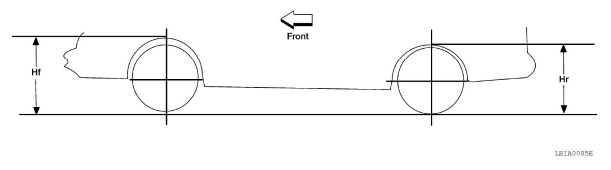

Wheelarch Height (Unladen())
G12085676
WHEELARCH HEIGHT SPECIFICATIONS

Front (Hf) 700 mm (27.56 in)
Rear (Hr) 737 mm (29.02 in)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2017 NV CARGO AND PASSENGER VAN

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Vehicle type NV1500/2500 NV3500 Passenger van
Camber Degree minute (Decimal degree) Minimum -0° 49'(-0.825°)
Nominal 0° 00' (0.00°)
Maximum 0° 49' (0.825°)
Cross camber 0° 49' (0.825°) or less
Caster Degree minute (Decimal degree) Minimum 5° 16'(5.27°) 5° 01'(5.02°) 5° 16' (5.27°)
Nominal 6° 10'(6.17°) 5° 55' (5.92°) 6° 10' (6.17°)
Maximum 7° 04' (7.07°) 6° 49'(6.82°) 7° 04' (7.07°)
Cross caster 0° 49'(0.825°) or less
Kingpin inclination (reference only) Degree minute (decimal degree) 8° 55' (8.92°)
G12085677
Total toe-in Distance (A - B) Minimum In 2.6 mm (0.102 in) I In 2.7 mm (0.106 in) In 2.6 mm (0.102 in)
Nominal In 6.0 mm (0.236 in) In 6.2 mm (0.244 in) In 6.0 mm (0.236 in)
Maximum In 9.4 mm (0.370 in) In 9.7 mm (0.382 in) In 9.4 mm (0.370 in)
Angle Degree minute (Decimal degree) Minimum In 0° 10' (0.17°)
Nominal In 0° 26'(0.44°)
Maximum In 0° 43'(0.71°)
Wheel turning angle (full turn) Inside Degree minute (decimal degree) 35° 30' - 39° 30'(2) (35.50° - 39.50°) 35° 30' - 39° 30' '2 (35.50° - 39.50°) 35° 30' - 39° 30'(2) (35.50° - 39.50°)
Outside Degree minute (decimal degree) 35° 30' (35.50°) 35° 30' (35.50°) 35° 30' (35.50°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) Target value 38° 31' (38.52°)

2016-2017 PATHFINDER

Front Wheel Alignment Specifications

Wheel Alignment
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Measurement wheel (LH)side (RH)side
Camber Degree minute (Decimal degree) Minimum -1° 05' (-1.075°)
Nominal -0° 15' (-0.25°)
Maximum 0° 35' (0.575°)
Left and right difference*1 0° D' ± 0° 33' (D° ± 0.55°)
Caster Degree minute (Decimal degree) Minimum 3" 46' (3.77°)
Nominal 4° 40' (4.67°)
Maximum 5° 34' (5.57°)
Left and right difference*1 0°30' (0.50°) Maximum
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 55'(11.92°) 12° 10'(12.17°)
Nominal 12° 40'(12.67°) 12° 55'(12.92°)
Maximum 13° 25'(13.42°) 13° 40'(13.67°)
G12085678
Total toe-in Distance (A - B) Minimum Out 1.6 mm (Out 0.063 in)
Nominal In 1.4 mm (In 0.055 in)
Maximum In 4.4 mm (In 0.173 in)
Angle (left and right) Degree minute (Decimal degree) Minimum Out 0° 06'(Out 0.10°)
Nominal In 0° 06'(In 0.10°)
Maximum In 0° 18' (In 0.30°)

Measure value under unladen conditions (Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions).

*1: The (RH) camber angle shall be 0° 0' ± 0° 33' (0° ± 0.55°) with respect to the (LH) camber angle.

Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swing torque Transverse link 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Measurement on spring balance Transverse link 11.1 - 108.9 N (1.13 - 11.11 kg, 2.50 - 24.48 lb)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -1° 20' (-1.33°)
Nominal -0° 35' (-0.58°)
Maximum 0° 10'(0.17°)
G12085679
Total toe-in Distance (A - B) Minimum Out 0.6 mm (Out 0.024 in)
Nominal In 2.4 mm (In 0.094 in)
Maximum In 5.4 mm (In 0.213 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 07'(Out 0.12°)
Nominal In 0° 11' (In 0.18")
Maximum In 0°29' (In 0.48°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swing torque 0.5 - 3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Measurement on spring balance (cotter pinhole position) 8.1 - 54.8 N (0.83 - 5.59 kg, 1.82 - 12.32 lb)
Axial end play 0 mm (0 in)

2016-2017 ROGUE

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Axle type FWD AWD
Body type 2 ROW 3 ROW 2 ROW 3 ROW
Wheel diameter 17 inch 18 inch 19 inch 17 inch 17 or 18 inch 19 inch 17 inch
Camber Degree minute (Decimal degree) Minimum -1° 27' 00" (-1.45°) -1° 18'36" (-1.31°)
Nominal -0° 37'12" (-0.62°) -0° 28' 48" (-0.48°)
Maximum 0° 12'36" (0.21°) 0° 21'00" (0.35°)
(LH) and (RH) difference 0° 00' ± 0° 36' 00" (0° ± 0.60°)
Caster Degree minute (Decimal degree) Minimum 4° 51'36" (4.86°) 4° 52' 12" (4.87°) 4° 54' 00" (4.90°) 4° 53' 24" (4.89°) 4° 42' 00" (4.70°) 4° 46' 48" (4.78°) 4° 45' 00" (4.75°)
Nominal 5° 45' 36" (5.76°) 5° 46' 12" (5.77°) 5° 48' 00" (5.80°) 5° 47' 24" (5.79°) 5° 36' 00" (5.60°) 5° 40' 48" (5.68°) 5° 39' 00" (5.65°)
Maximum 6° 39' 36" (6.66°) 6° 40'12" (6.67°) 6° 42' 00" (6.70°) 6° 41'24" (6.69°) 6° 30' 00" (6.50°) 6° 34' 48" (6.58°) 6° 33' 00" (6.55°)
(LH) and (RH) difference 0° 00' ± 0° 36' 00" (0° ± 0.60°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 06'00" (11.10°) 10° 54'36" (10.91°) 10° 49'48" (10.83°)
Nominal 11° 51'00" (11.85°) 11° 39'36" (11.66°) 11° 34'48" (11.58°)
Maximum 12° 36' 00" (12.60°) 12° 24'36" (12.41°) 12° 19' 48" (12.33°)
G12085680
Total toe-in Distance (A - B) Minimum Out 1.0 mm (Out 0.039 in)
Nominal In 1.5 mm (In 0.059 in)
Maximum In 4.0 mm (In 0.157 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 04'48" (Out 0.08°)
Nominal In 0° 07' 12" (In 0.12°)
Maximum In 0° 19'12" (In 0.32°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Drive type FWD AWD
Camber Degree minute (Decimal degree) Minimum -1° 49' 12" (-1.82°) -1° 28'48" (-1.48°)
Nominal -0° 55' 12" (-0.92°) -0° 34' 48" (-0.58°)
Maximum -0= 01' 12" (-0.02°) 0° 19'12" (0.32°)
G12085681
Total toe-in Distance (A - B) Minimum In 0.2 mm (In 0.008 in)
Nominal In 4.2 mm (In 0.165 in)
Maximum In 8.2 mm (In 0.323 in)
Angle (LH and RH)(2) Degree minute (Decimal degree) Minimum In 0° 01'48" (In 0.03°)
Nominal In 0° 19'48" (In 0.33°)
Maximum In 0° 37'48" (In 0.63°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) Since an adjustment mechanism is not included, the value of the left and right wheels must be used as the standard value.

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Axle type FWD AWD
Wheel diameter 17 or 18 inch 17 or 18 inch
Camber Degree minute (Decimal degree) Minimum -1-29'24" (-1.49°) -1° 19'48" (-1.33°)
Nominal -0° 39' 36" (-0.66°) -0° 30' 0" (-0.50°)
Maximum 0° 10' 12- (0.17°) 0° 19'48" (0.33°)
(LH) and (RH) difference + 0° 36' 0" (±0.60°)
Caster Degree minute (Decimal degree) Minimum 4° 55' 48" (4.93°) 4° 45' 36" (4.76°)
Nominal 5° 49' 48" (5.83°) 5° 39' 36" (5.66°)
Maximum 6° 43' 48" (6.73°) 6° 33' 36" (6.56°)
(LH)and(RH) difference ± 0° 36' 0" (±0.60°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 19'48" (11.33°) 10° 54'36" (10.91°)
Nominal 12° 4' 48" (12.08°) 11° 39' 36" (11.66°)
Maximum 12° 49' 48" (12.83°) 12° 24' 36" (12.41°)
G12085682
Total toe-in Distance (A - B) Minimum Out 1.0 mm (Out 0.039 in)
Nominal In 1.5 mm (In 0.059 in)
Maximum In 4.0 mm (In 0.157 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 4' 48" (Out 0.08°)
Nominal In 0° 7'12" (In 0.12°)
Maximum In 0° 19' 12" (In 0.32°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
BALL JOINT SPECIFICATIONS

Item Standard
Swinging torque Transverse link 0.5 - 3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Rotating torque Transverse link 0.5 - 3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Drive Type FWD AWD
Camber Degree minute (Decimal degree) Minimum -1-49' 12" (-1.82°) -1-34' 12" (-1.57°)
Nominal -0° 55'12" (-0.92°) -0°40' 12" (-0.67°)
Maximum -0° 01'12"(-0.02°) 0° 13'48" (0.23°)
G12085683
Total toe-in Distance (A - B) Minimum In 0.2 mm (In 0.008 in)
Nominal In 4.2 mm (In 0.165 in)
Maximum In 8.2 mm (In 0.323 in)
Angle (LH and RH)(2) Degree minute (Decimal degree) Minimum In 0° 07'12" (In 0.12°) In 0" 01'48" (In 0.03°)
Nominal In 0° 25' 12" (In 0.42°) In 0° 19' 48" (In 0.33°)
Maximum In 0° 43'12" (In 0.72°) In 0° 37' 48" (In 0.63°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) Since an adjustment mechanism is not included, the value of the left and right wheels must be used as the standard value.
Wheelarch Height (Unladen())

Unit: mm (in)

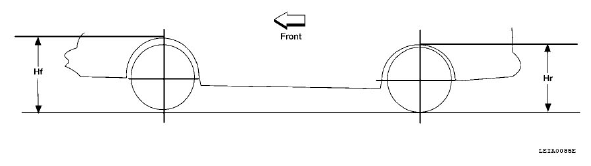

G12085684
WHEELARCH HEIGHT SPECIFICATIONS

Axle type FWD AWD
Tire size 225/65R17 225/60R18 225/65R17 225/60R18
Front (Hf) 777 (30.59) 778 (30.63) 796(31.34) 798 (31.42)
Rear (Hr) 772 (30.39) 774 (30.47) 792(31.18) 793 (31.22)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2017 TAXI

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -1° 09' (-1.15°)
Nominal -0-20'(-0.33°)
Maximum D° 29' (0.49°)
(LH) and (RH) difference(2) - 0° 49' (- 0.825°) - 0° 49' (0.825°)
Caster Degree minute (Decimal degree) Minimum 3° 16' (3.27°)
Nominal 4° 10'(4.17°)
Maximum 5" 04' (5.07°)
(LH) and (RH) difference(2) - D° 49' (- 0.825°) - 0° 49' (0.825°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 10'(11.17°)
Nominal 11° 55' (11.92°)
Maximum 12° 40' (12.67°)
G12085685
Total toe-in Distance (A - B) Minimum Out 1.0 mm (Out 0.039 in)
Nominal In 1.0 mm (In 0.039 in)
Maximum In 3.2 mm (In 0.125 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 06'(Out 0.10°)
Nominal In 0° 06'(In 0.10°)
Maximum In 0° 18'(In 0.30°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) The difference when assuming the (LH) side is the standard.
Ball Joint
BALL JOINT SPECIFICATIONS

Swinging torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Rotating torque 0.5 - 4.9 N.m (0.05 - 0.50 kg-m, 4-43 in-lb)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen*)
REAR WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -2° 00' (-2.00°)
Nominal -1° 30'(-1.50°)
Maximum -1° 00'(-1.00°)
G12085686
Total toe-in Distance (A - B) Minimum Out 2.0 mm (Out 0.08 in)
Nominal In 3.0 mm (in 0.118 in)
Maximum In 8.0 mm (In 0.315 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 14'(Out 0.23°
Nominal In 0° 16' (In 0.27°)
Maximum In 0° 46'(In 0.77°)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Wheelarch Height (Unladen())

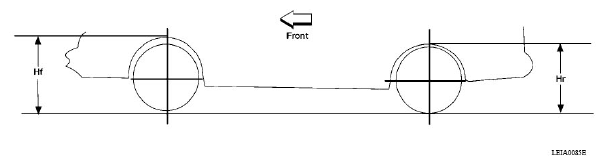

G12085687
WHEELARCH HEIGHT SPECIFICATIONS

Front (Hf) 700 mm (27.56 in)
Rear (Hr) 737 mm (29.02 in)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2018 VERSA NOTE

Front Wheel Alignment Specifications

Wheel Alignment (Unladen())
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -0° 54' (-0.90°)
Nominal -0°05' (-0.08°)
Maximum 0° 44' (0.74°)
(LH) and (RH)difference(2) - 0° 49' (- 0.825°) - 0° 49' (0.825°)
Caster Degree minute (Decimal degree) Minimum 2° 51' (2.85°)
Nominal 3° 45' (3.75°)
Maximum 4° 39' (4.65°)
(LH) and (RH)difference(2) - 0° 49' (- 0.825°) - 0° 49' (0.825°)
Kingpin inclination Minimum 11° 00' (11.00°)
Nominal 11° 45' (11.75°)
Maximum 12° 30' (12.50°)
G12085688
Total toe-in Distance (A - B) Minimum Out 2.1 mm (Out 0.083 in)
Nominal In 0.9 mm (In 0.035 in)
Maximum In 3.9 mm (In 0.154 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 12' (Out 0.20°)
Nominal In 0° 05' (In 0.08°)
Maximum In 0° 22' (In 0.36°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) The difference when assuming the (LH) side is the standard.
Ball Joint
BALL JOINT SPECIFICATIONS

Swing torque 0.5 - 3.4 N.m (0.05 - 0.35 kg-m, 4-30 in-lb)
Rotating torque 15.4 - 104.7 N (1.6-10.7 kg-f, 3.5-23.5 lb-ft)
Axial end play 0.1 mm (0.004 in)

Rear Wheel Alignment Specifications

Wheel Alignment (Unladen())
REAR WHEEL ALIGNMENT SPECIFICATIONS

Camber Degree minute (Decimal degree) Minimum -1° 55' (-1.92°)
Nominal -1° 25'(-1.42°)
Maximum -0° 55' (-0.92°)
G12085689
Total toe-in Distance (A - B) Minimum Out 2.0 mm (Out 0.079 in)
Nominal In 2.0 mm (In 0.079 in)
Maximum In 6.0 mm (In 0.236 in)
Angle (LH and RH)(2) Degree minute (Decimal degree) Minimum Out 0°15' (Out 0.25°)
Nominal In 0° 10' (In 0.17°)
Maximum In 0° 35' (in 0.58°)
(1) Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
(2) Since an adjustment mechanism is not included, the value of the left and right wheels must be used as the standard value.
Wheelarch Height (Unladen*)
UNITED STATES

Unit: mm (in)

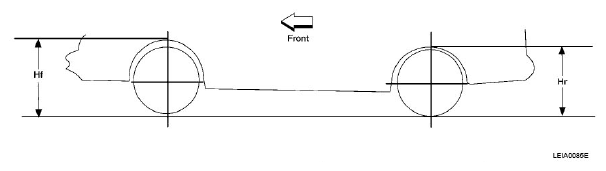

G12085690
WHEELARCH HEIGHT SPECIFICATIONS

Tire size 185/65R15 195/55R16
Front (Hf) 691 (27.20) 691 (27.20)
Rear (Hr) 678 (26.69) 677 (26.65)

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

2016-2018 VERSA SEDAN

Front Wheel Alignment Specifications

Wheel Alignment
FRONT WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum - 0° 54' (- 0.90°)
Nominal - 0° 05' (- 0.08°)
Maximum 0" 44' (0.74°)
Left and right difference - 0° 38' (- 0.64°) - 0° 38' (0.64°)
Caster Degree minute (Decimal degree) Minimum 2° 46' (2.77°)
Nominal 3° 40' (3.67°)
Maximum 4° 34' (4.57°)
Left and right difference - 0" 49' (- 0.825°) - 0° 49' (0.825°)
Kingpin inclination Degree minute (Decimal degree) Minimum 11° 00'(11.00°)
Nominal 11° 45'(11.75°)
Maximum 12° 30' (12.50°)
G12085691
Total toe-in Distance (A-B) Minimum Out 2.1 mm (Out 0.083 in)
Nominal In 0.9 mm (In 0.035 in)
Maximum In 3.9 mm (In 0.154 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 12' (Out 0.20°)
Nominal In 0° 05' (In 0.08°)
Maximum In 0° 22' (In 0.36°)

Measure value under unladen* conditions.

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Ball Joint
BALL JOINT SPECIFICATIONS

Item Standard
Swing torque 0.5 - 3.4 N.m (0.05 - 0.34 kg-m, 4.4 - 30 in-lb)
Measurement on spring balance 15.4 - 104.7 N (1.6 - 10.7 kg-f, 3.5 - 23.5 lb-f)
Axial end play 0 mm (0 in)

Rear Wheel Alignment Specifications

Wheel Alignment
REAR WHEEL ALIGNMENT SPECIFICATIONS

Item Standard
Camber Degree minute (Decimal degree) Minimum -1° 55'(-1.92°)
Nominal -1° 25'(-1.42°)
Maximum -0° 55' (-0.92°)
G12085692
Total toe-in Distance (A - B) Minimum Out 2 mm (Out 0.08 in)
Nominal In 2 mm (In 0.08 in)
Maximum In 6 mm (In 0.24 in)
Angle (LH and RH) Degree minute (Decimal degree) Minimum Out 0° 15' (Out 0.25°)
Nominal In 0° 10'(In 0.17°)
Maximum In 0°35' (In 0.5B°)

Measure value under unladen* conditions.

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Wheelarch Height

Unit: mm (in)

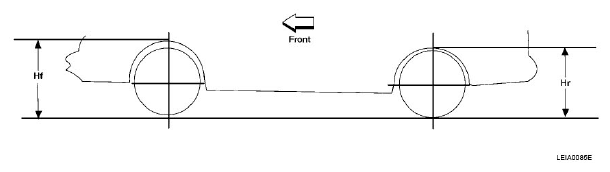

G12085693
WHEELARCH HEIGHT SPECIFICATIONS

Market United States Canada
Front (Hf) 688 (27.09) 688 (27.09)
Rear (Hr) 665 (26.18) 666 (26.22)

Measure value under unladen* conditions.

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

scientia non olet · About LEMON Manuals
