Automatic Transmission (Introduction, Wiring Diagrams And Basic Inspection)
>>
Basic Inspection
>>
CVT Fluid Cooler System
>>
Exploded View With Torque Specifications
>>
Component Location

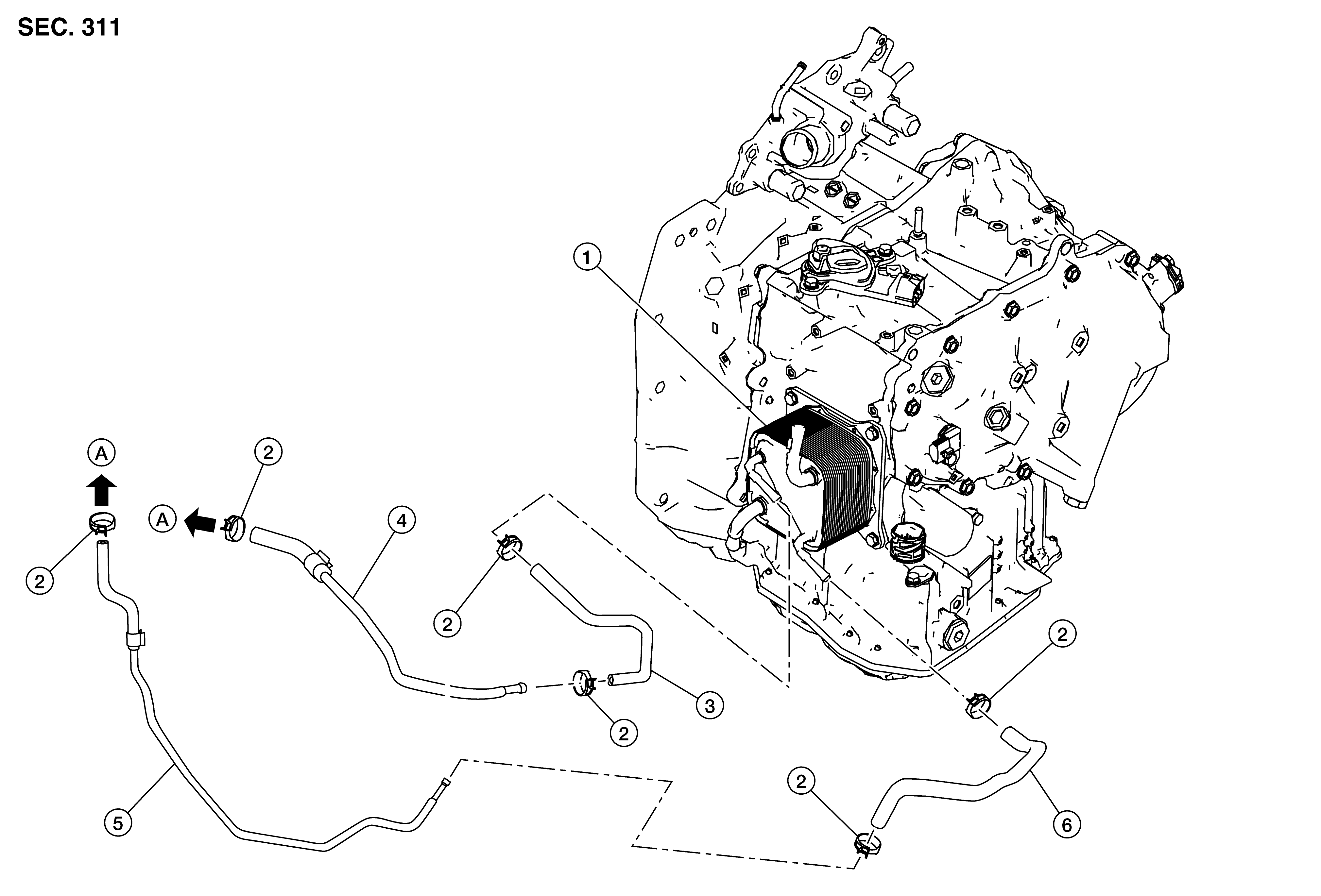

Component Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Oil warmer
2.
Hose clamp
3.
CVT fluid cooler hose A
4.
CVT fluid cooler tube A
5.
CVT fluid cooler tube B
6.
CVT fluid cooler hose B
A.
To radiator
Courtesy of NISSAN NORTH AMERICA, INC.
