Exploded View

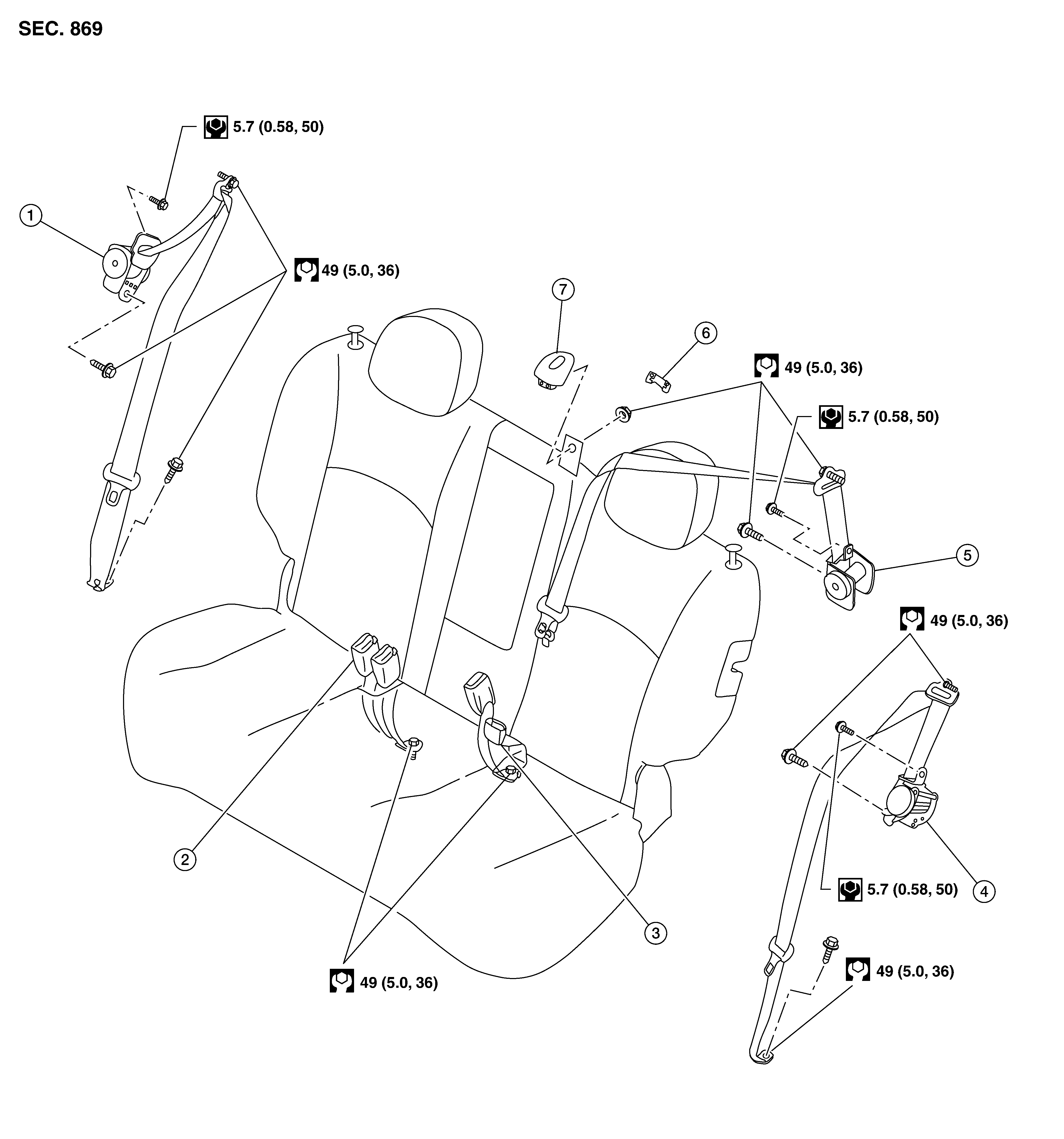

Fig 1: Rear Seat Belt With Torque Specifications
GNSDB119270Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat belt retractor (RH) 2. Seat belt buckle (RH/center) 3. Seat belt buckle (LH)
4. Seat belt retractor (LH) 5. Seat belt retractor (center) 6. Seat belt guide finisher
7. Seat belt guide
