FRONT LH SIDE AIR BAG MODULE Connector End View (B10)

Connector Color: YELLOW

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y/B	S-LH+
2	Y	S-LH-

Circuit Diagram

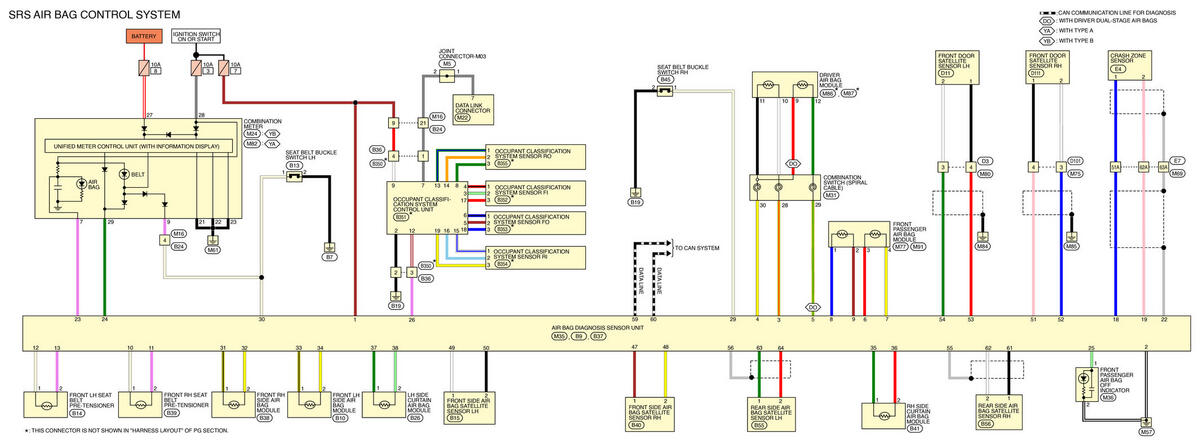

Fig 3: SRS AIR BAG CONTROL SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

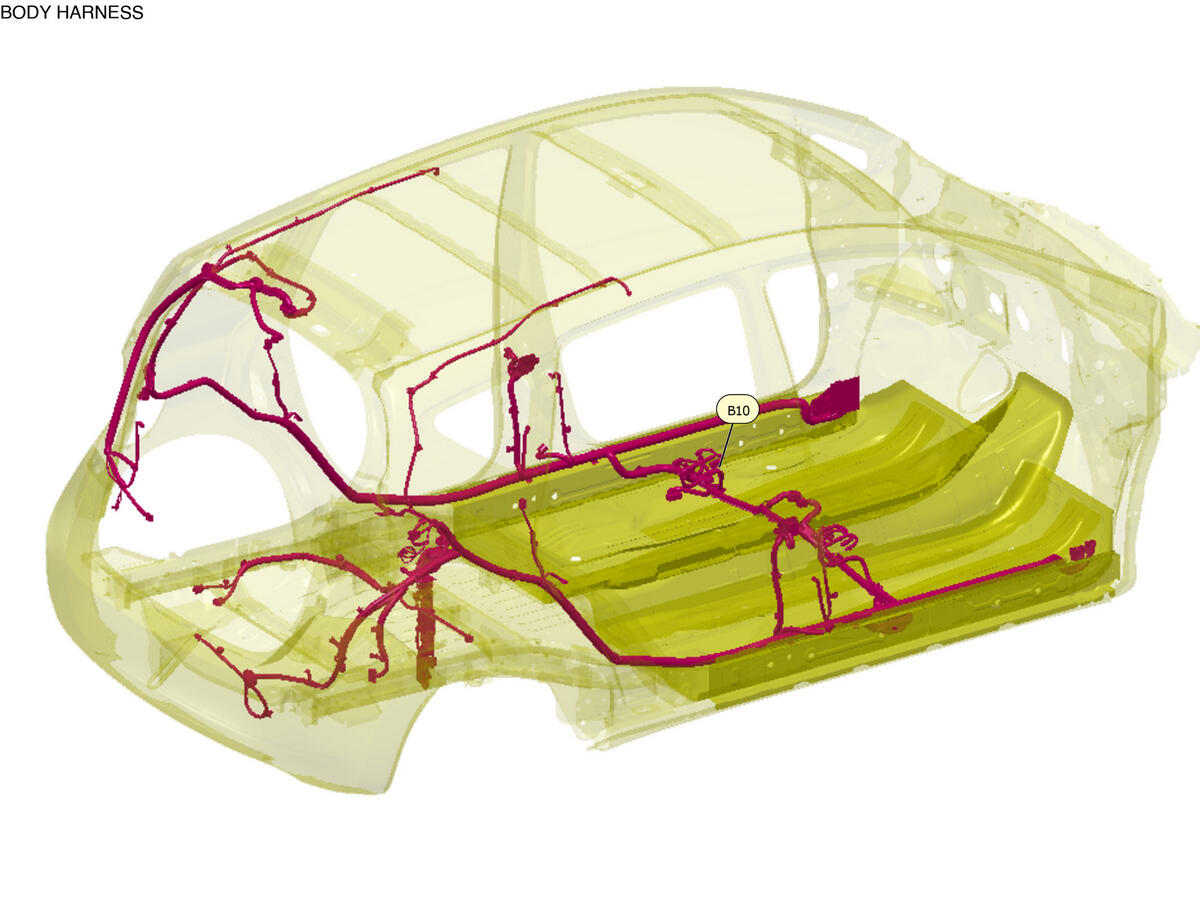

Fig 4: BODY HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: TK02FY-EX-1V
