Commercial Service Tool

(TechMate No.)
Tool name		   Description
(-)
Power tool
G00516009Courtesy of NISSAN NORTH AMERICA, INC.
 Loosening nuts, screws and bolts
(J-33984-A)

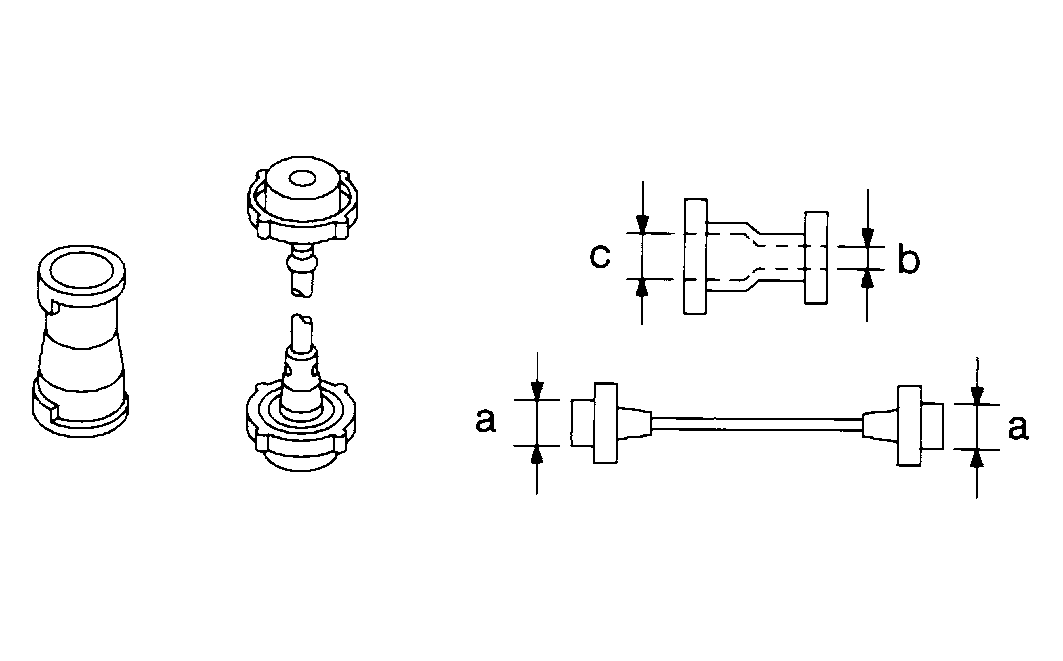

Radiator pressure adapter
GNSS-NT564-564Courtesy of NISSAN NORTH AMERICA, INC.
 Adapting cooling system pressure tester to radiator cap and reservoir tank cap
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
