Engine Cooling System
>>
System Description
>>
Description
>>
Engine Cooling System Schematic
Engine Cooling System Schematic

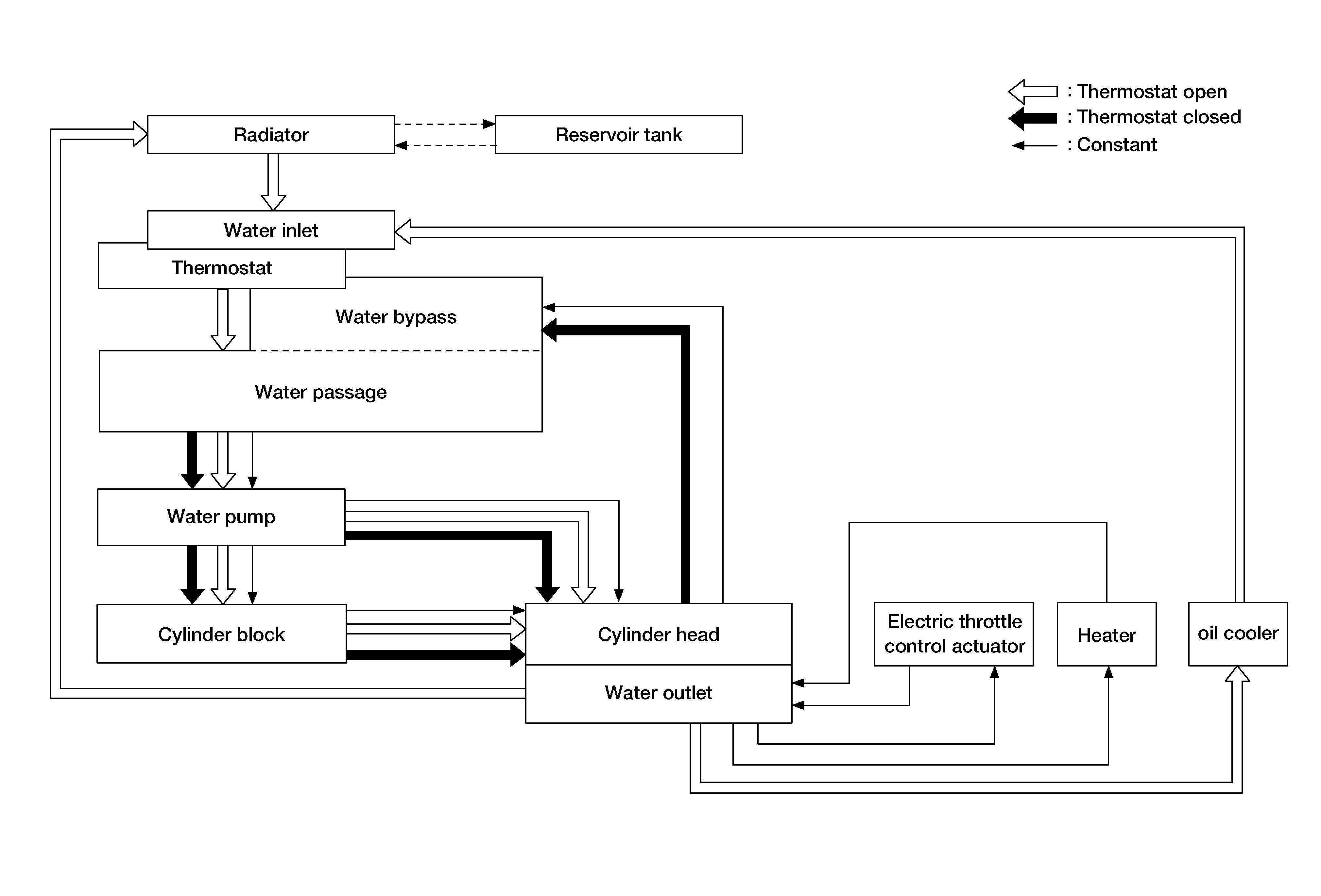

M/T models
Courtesy of NISSAN NORTH AMERICA, INC.

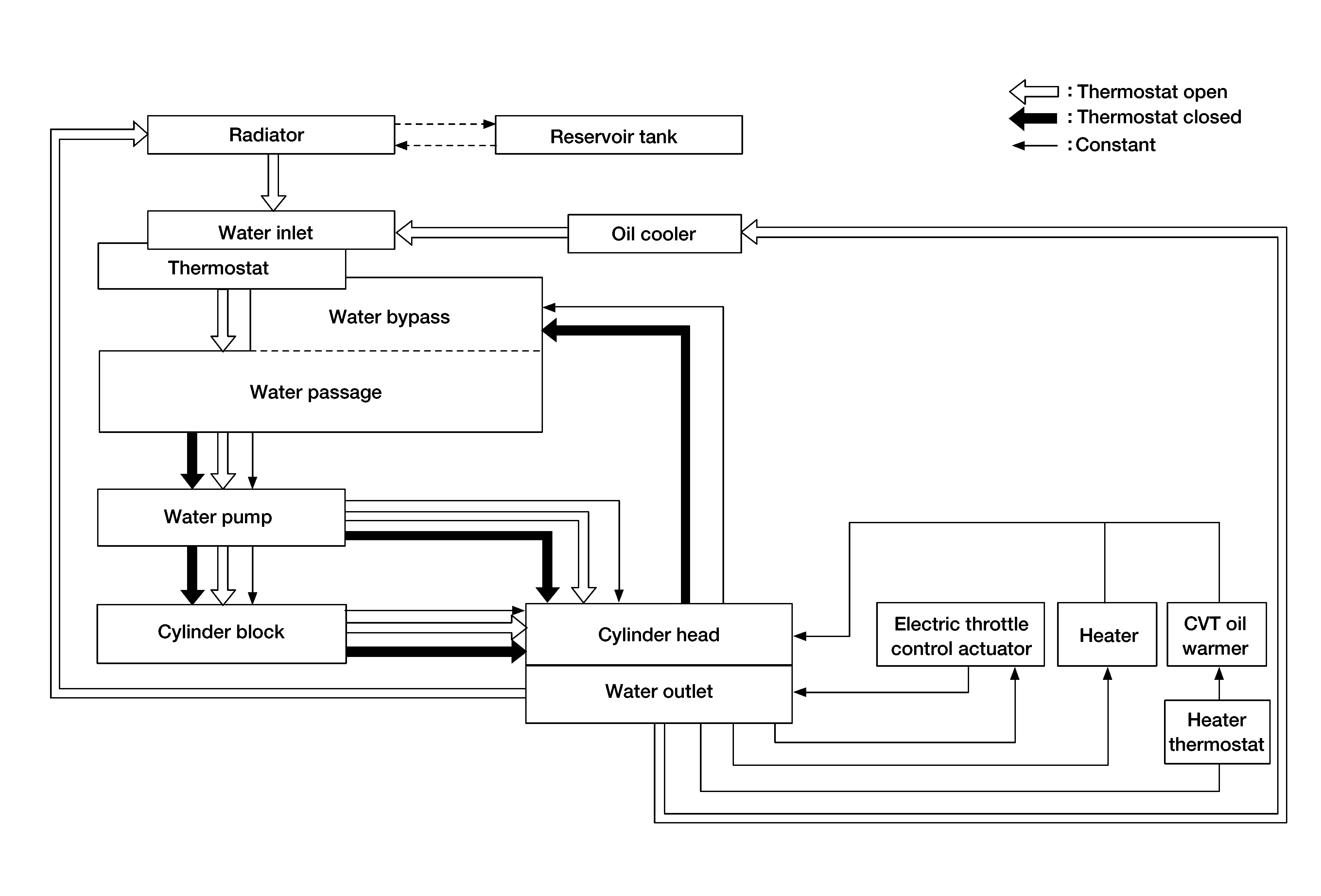

CVT models
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
