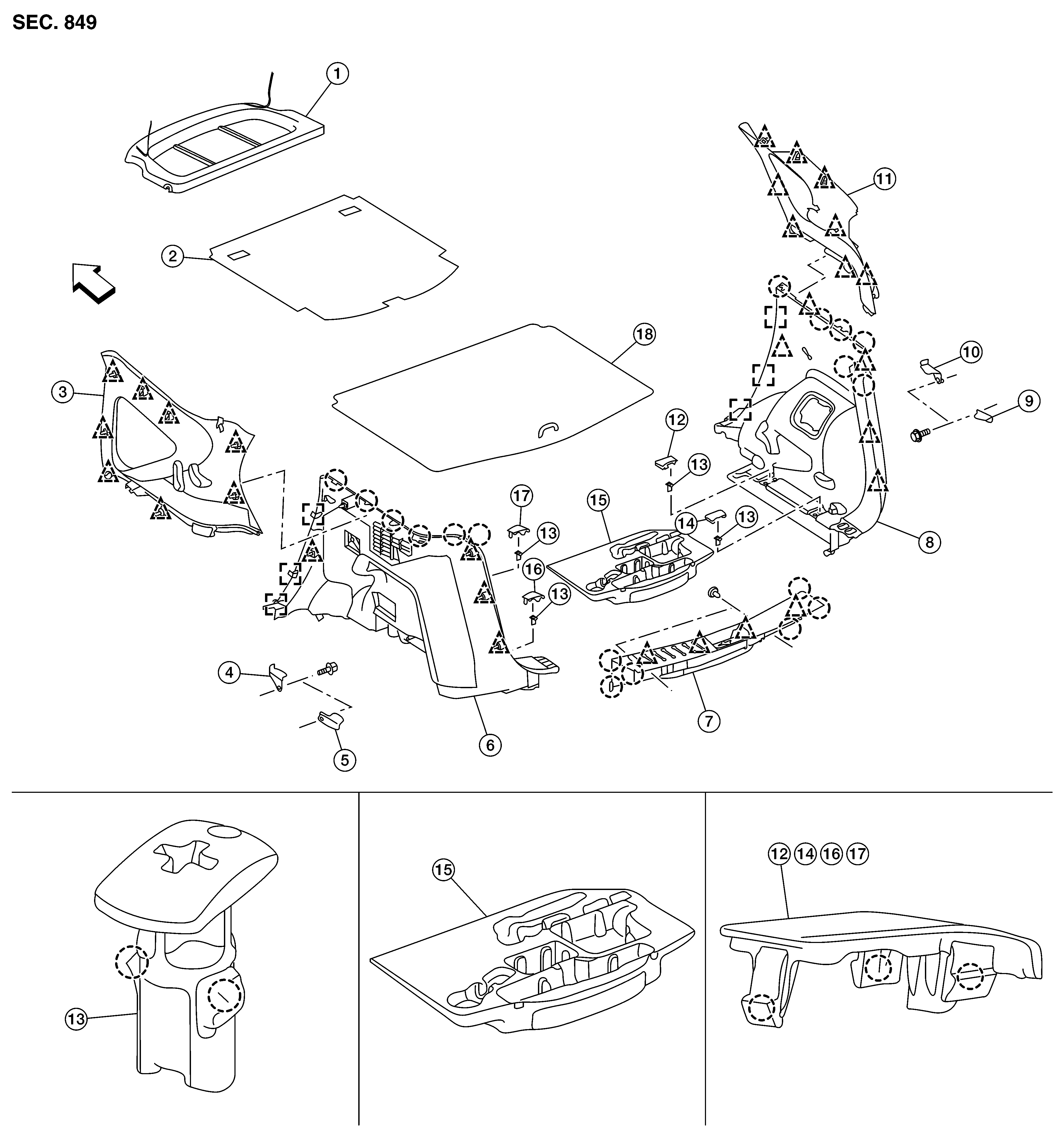

| 1. |
Parcel shelf finisher (if equipped) |
2. |
Luggage floor board (if equipped) |
3. |
Luggage side upper finisher (LH) |
| 4. |
Luggage side front reinforcement (LH) |
5. |
Luggage side rear reinforcement (LH) |
6. |
Luggage side lower finisher (LH) |
| 7. |
Luggage rear plate |
8. |
Luggage side lower finisher (RH) |
9. |
Luggage side rear reinforcement (RH) |
| 10. |
Luggage side front reinforcement (RH) |
11. |
Luggage side upper finisher (RH) |
12. |
Luggage side front cover (RH) |
| 13. |
Luggage side clip |
14. |
Luggage side rear cover (RH) |
15. |
Luggage floor box |
| 16. |
Luggage side rear cover (LH) |
17. |
Luggage side front cover (LH) |
18. |
Luggage floor trim |
 |
Pawl |
 |
Metal clip |
 |
Clip |
 |
Front |
|
|
|
|
