Diagnostic Test

  1. CHECK OVERDRIVE CONTROL SWITCH

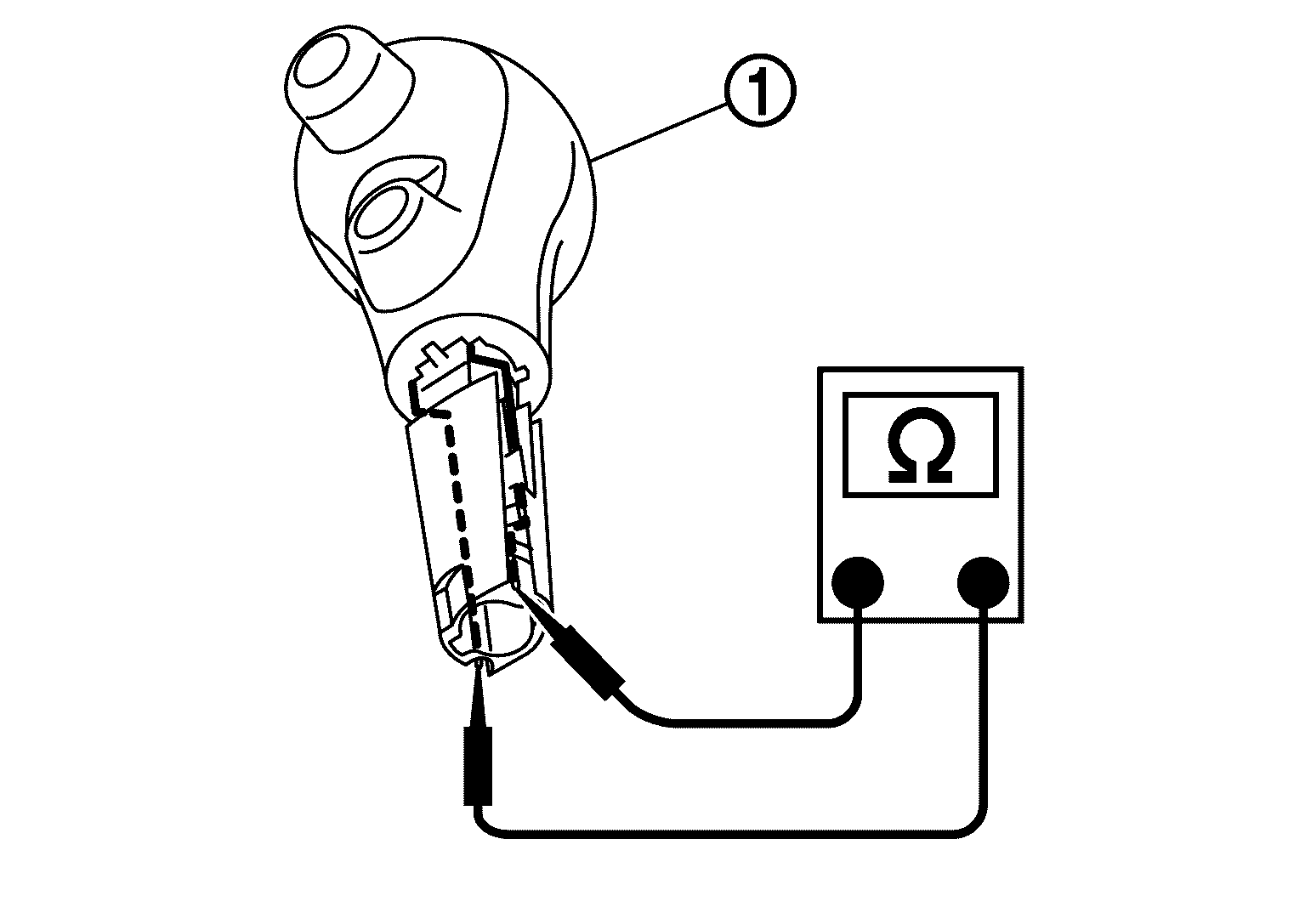

    Check continuity between wires of selector lever knob (1)

    G08199970Courtesy of NISSAN NORTH AMERICA, INC.
    Condition Continuity
    Overdrive control switch is depressed Existed
    Overdrive control switch is depressed Not existed

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Replace selector lever knob. Refer to REMOVAL AND INSTALLATION .
