EVAP Canister
>>

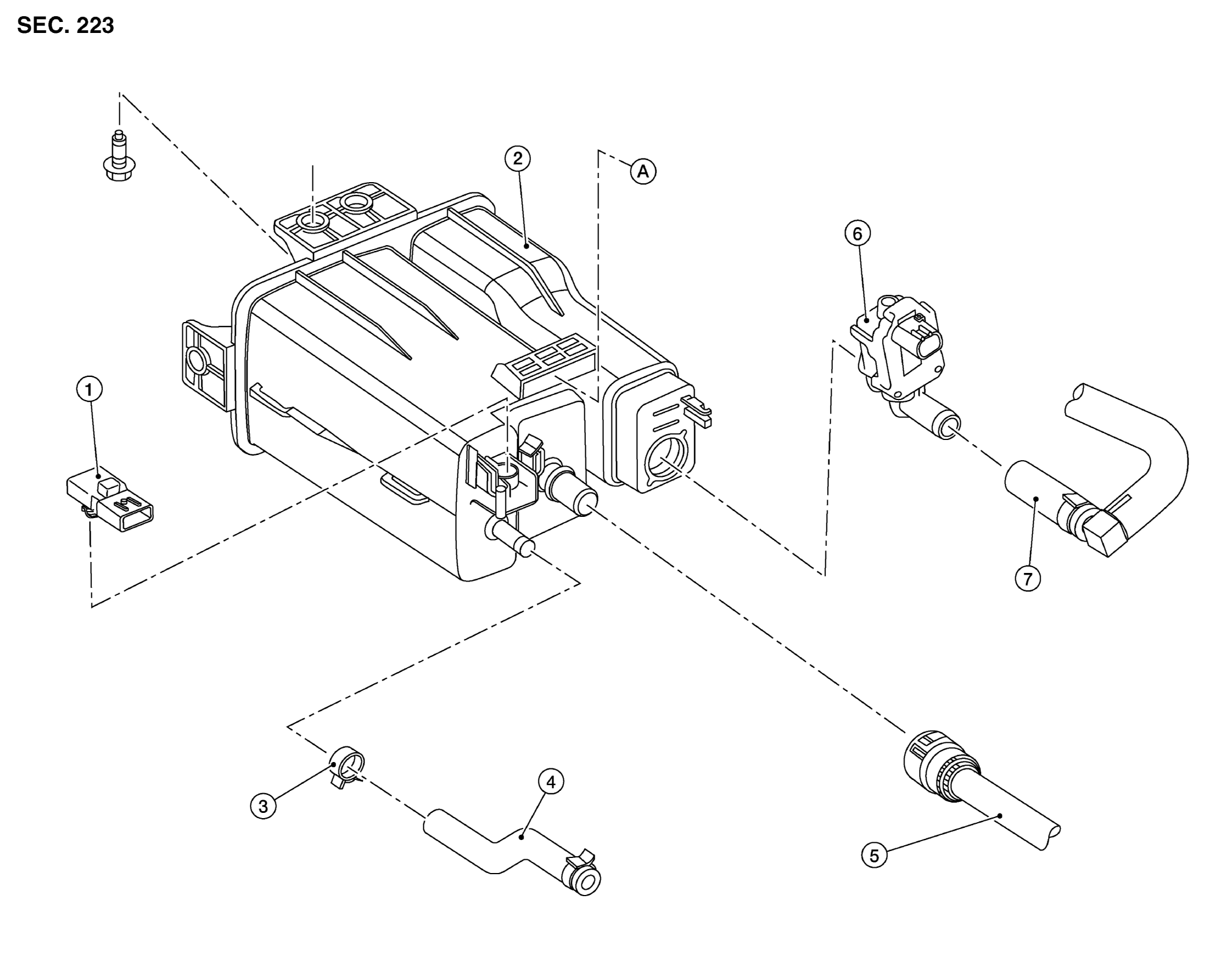

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
EVAP canister control pressure sensor
2.
EVAP canister
3.
Hose clamp
4.
EVAP canister purge hose
5.
EVAP canister vent line
6.
EVAP canister vent control valve
7.
EVAP canister vent control valve hose
A.
Mount to vehicle bracket
