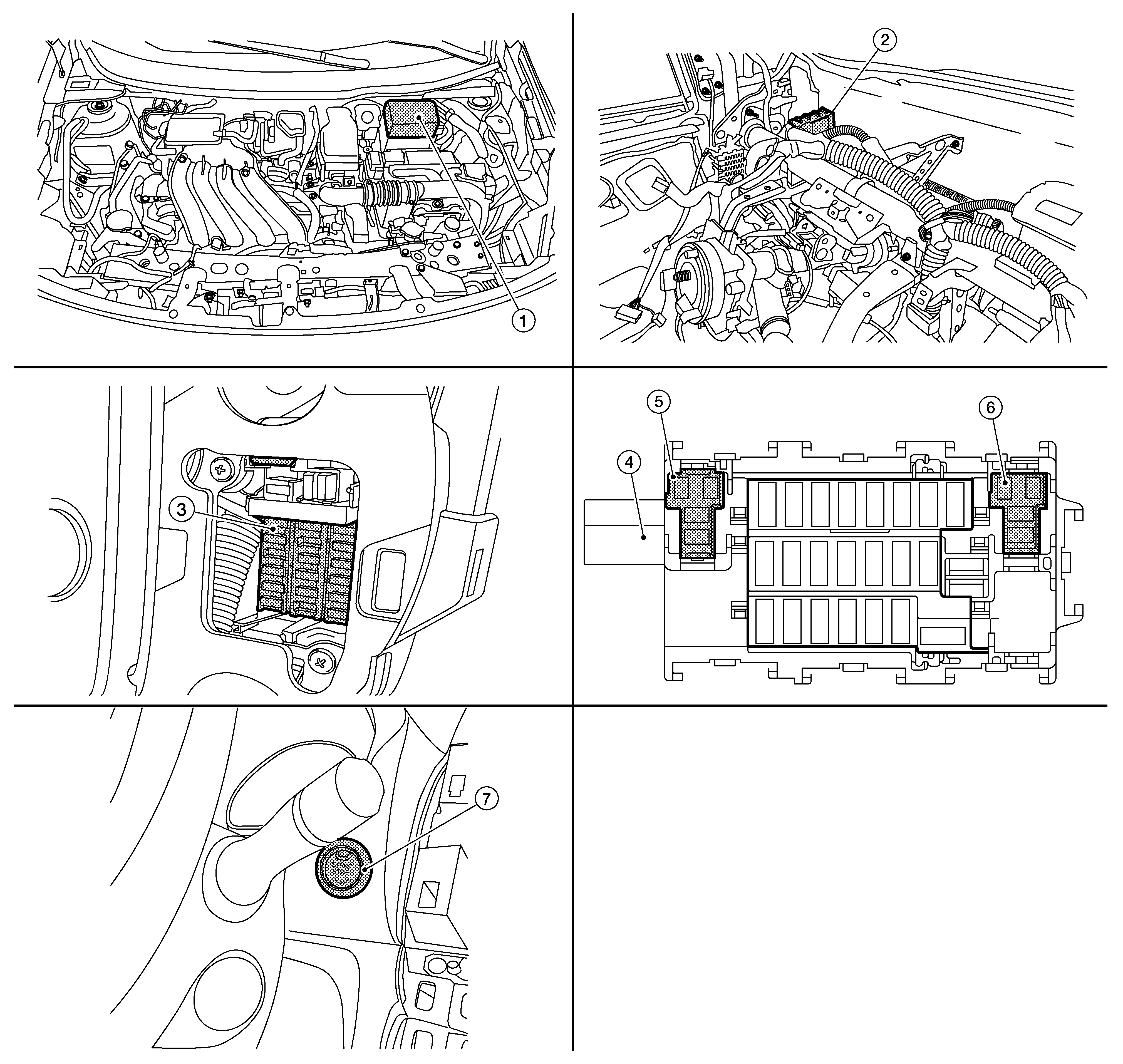

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	IPDM E/R (contains Ignition relay-1)	2.	BCM (view with instrument panel removed)	3.	Fuse block (J/B)
4.	Fuse block (J/B)	5.	Accessory-1 relay	6.	Blower motor relay
7.	Push-button ignition switch
