Exploded View

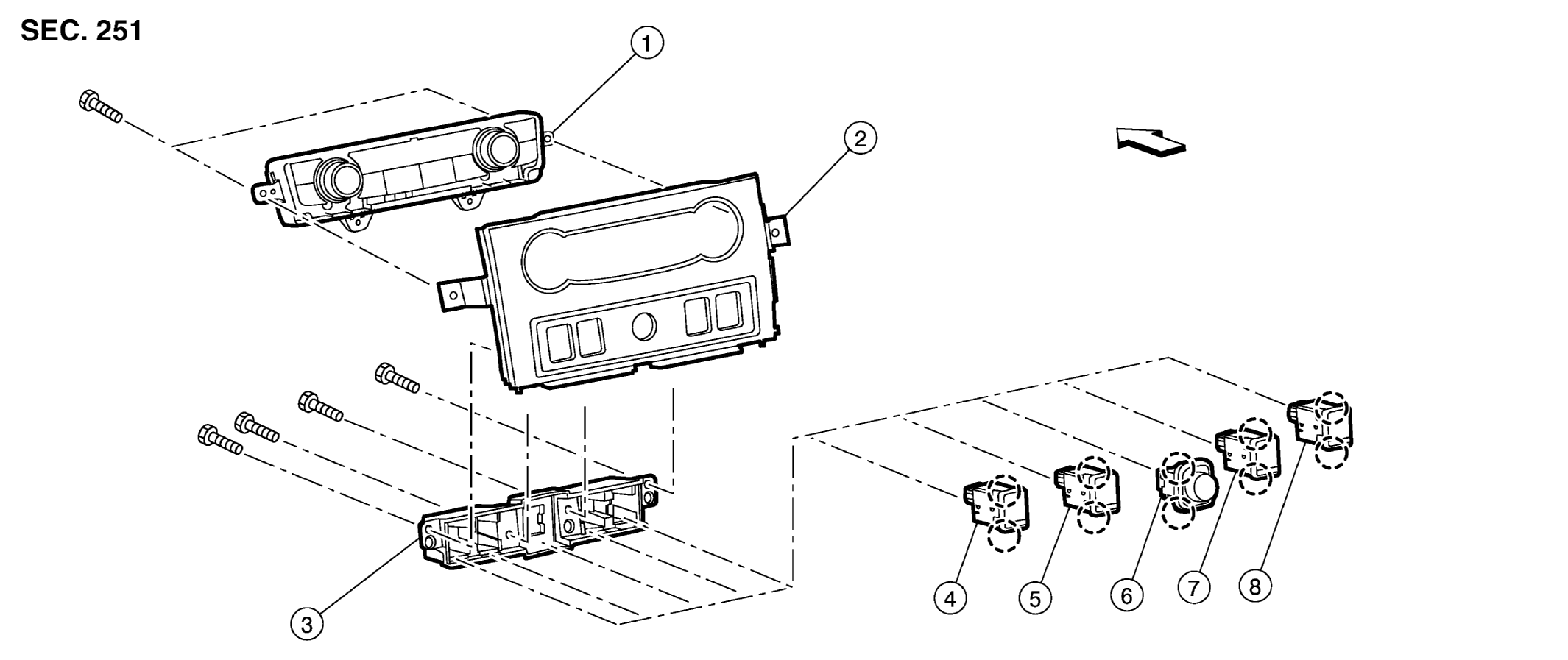

GNSAWIIA2083ZZ-083Courtesy of NISSAN NORTH AMERICA, INC.
1. A/C Switch Assembly 2. Cluster Lid C 3. Switch Carrier
4. VDC OFF Switch 5. Sonar System Off Switch (If Equipped) 6. Hazard Switch
7. Warning System Switch (If Equipped) 8. Heated Steering Wheel Switch ARROW Front
