Exploded View

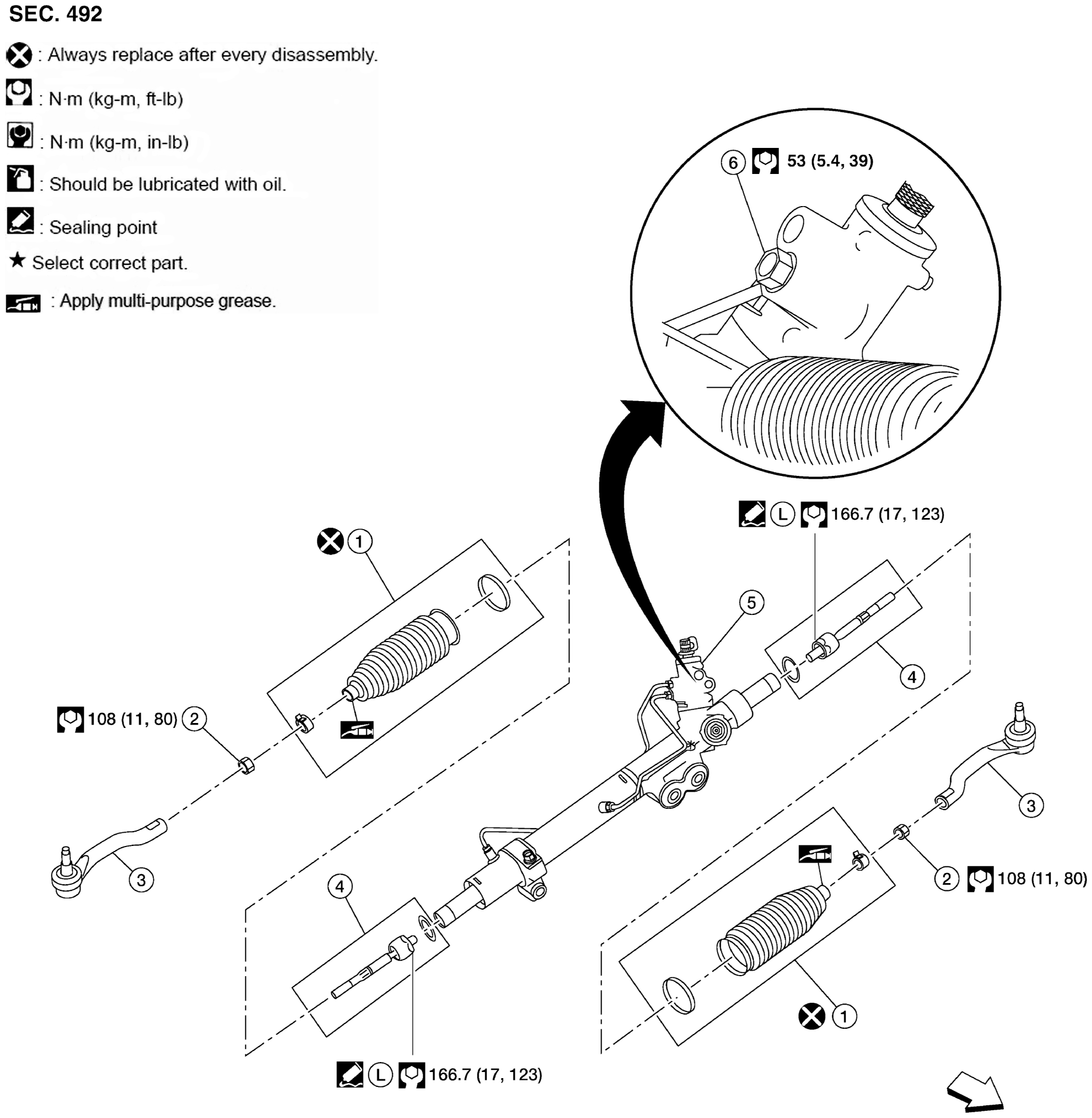

Fig 1: Steering Gear And Linkage Unit Disassembly And Assembly With Torque Specifications
GNSAWGIA0508ZZ-508Courtesy of NISSAN NORTH AMERICA, INC.
1. Boot 2. Lock nut 3. Outer socket
4. Inner socket 5. Steering gear 6. Check valve insert
ARROW Front
