Exploded View

2WD

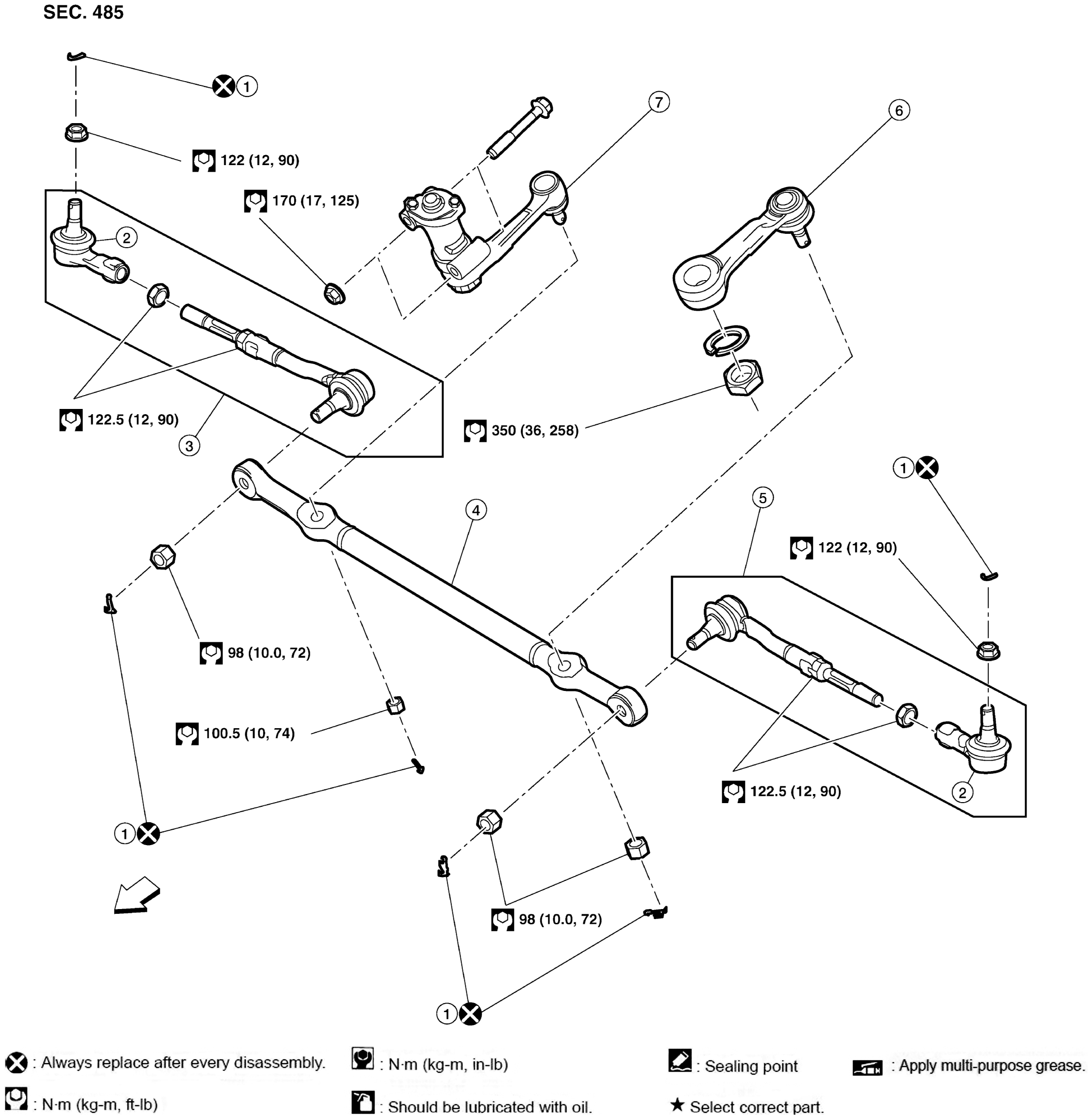

Fig 1: Steering Linkage 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter Pin	2.	Outer Socket	3.	Inner/Outer Socket Assembly (RH)
4.	Relay Rod	5.	Inner/Outer Socket Assembly (LH)	6.	Pitman Arm
7.	Idler Arm		Front

4WD

Fig 2: Steering Linkage 4WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter Pin	2.	Outer Socket	3.	Inner/Outer Socket Assembly (RH)
4.	Relay Rod	5.	Inner/Outer Socket Assembly (LH)	6.	Pitman Arm
7.	Idler Arm		Front
