Exploded View

Mechanical Steering Column

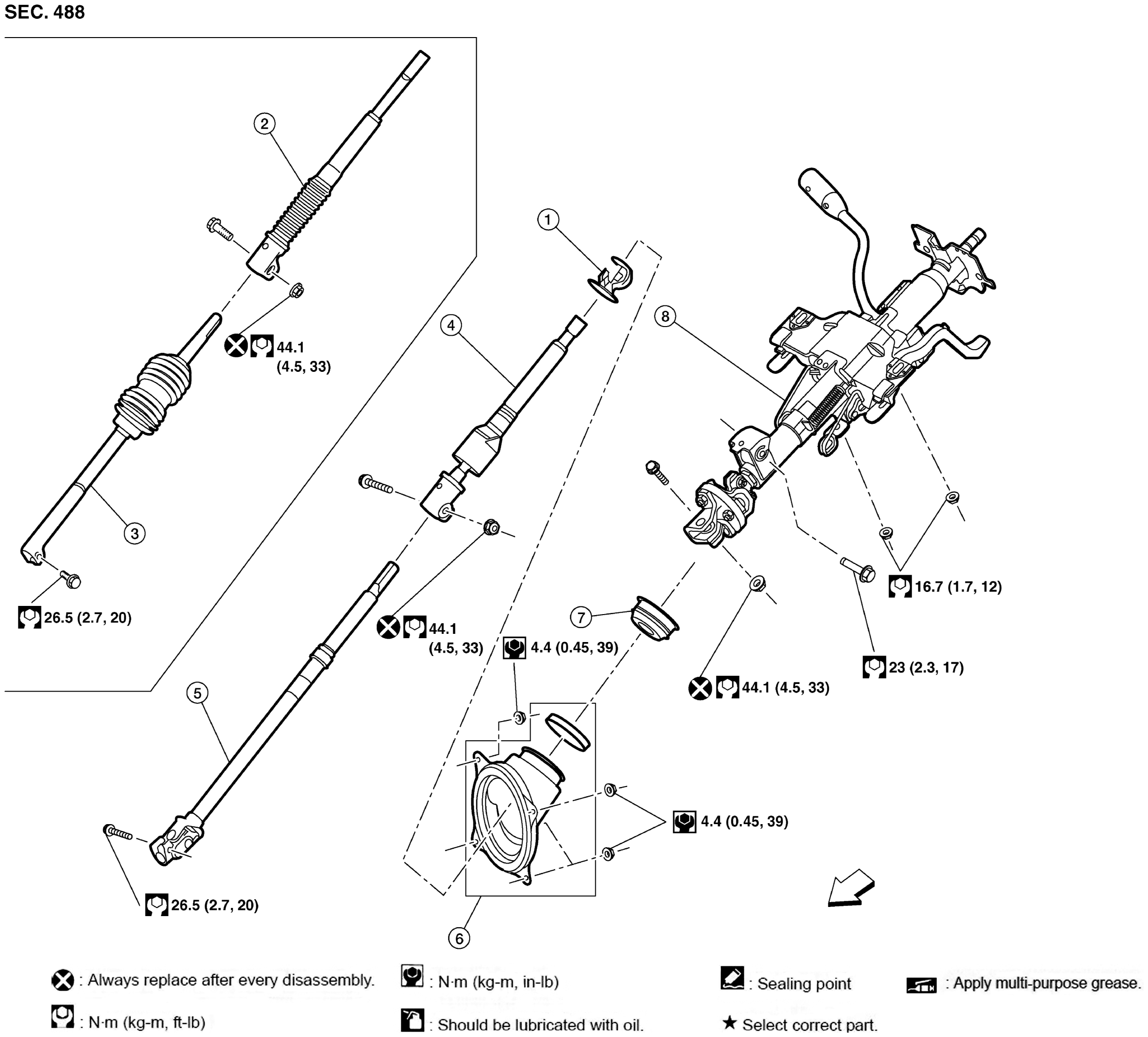

Fig 1: Mechanical Steering Column With Torque Specifications
GNSAWGIA0474ZZ-474Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column collar 2. Intermediate shaft - (Non-XD models) 3. Steering lower joint - (Non-XD Models)
4. Intermediate shaft - (XD models) 5. Steering lower joint - (XD Models) 6. Hole cover and clamp
7. Hole cover seal 8. Steering column ARROW Front

Electric Steering Column

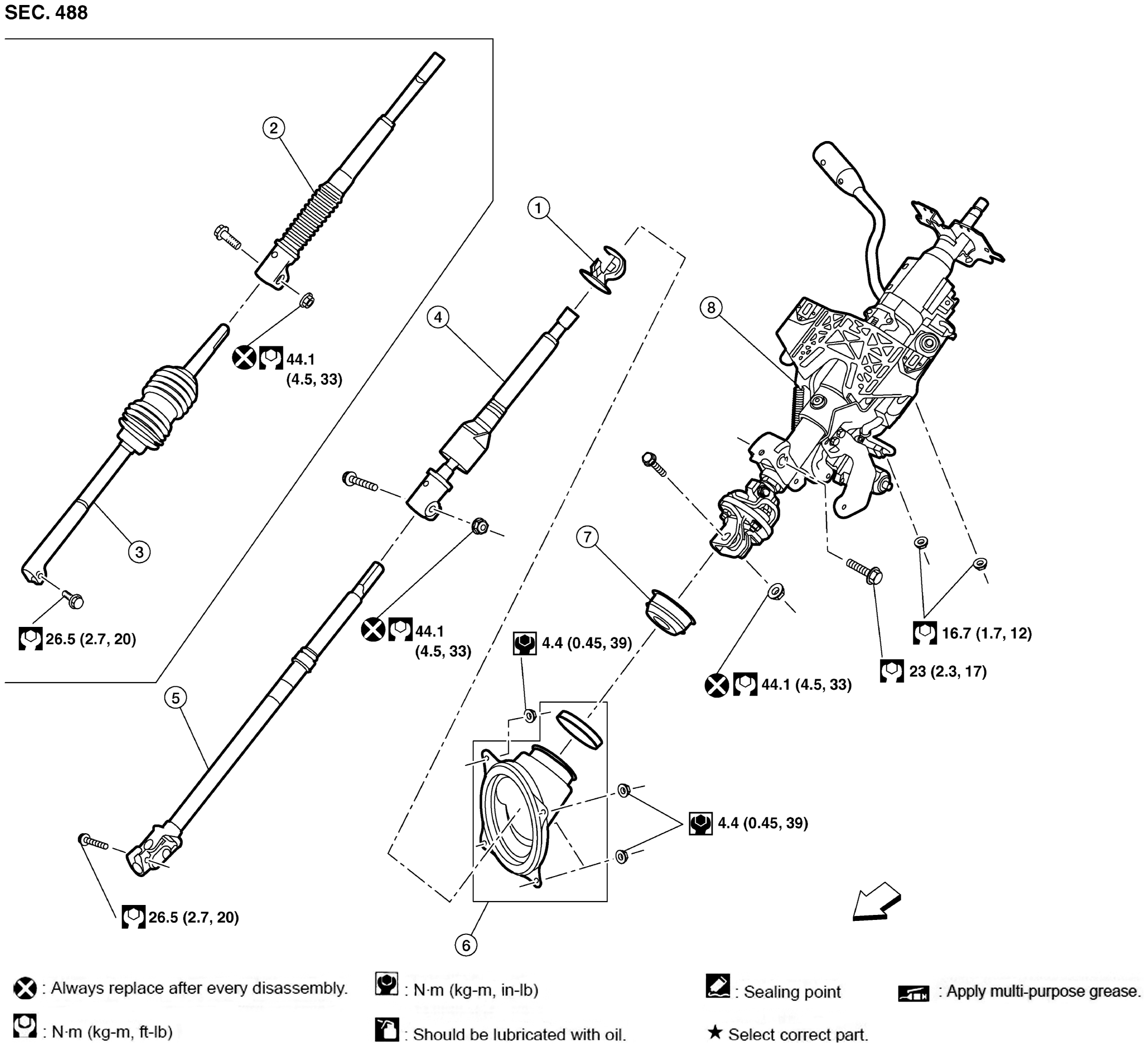

Fig 2: Electric Steering Column With Torque Specifications
GNSAWGIA0475ZZ-475Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column collar 2. Intermediate shaft - Non-XD Models 3. Steering lower joint - Non-XD Models
4. Intermediate shaft - XD Models 5. Steering lower joint - XD Models 6. Hole cover and clamp
7. Hole cover seal 8. Steering column ARROW Front
