Exploded View

XD Models

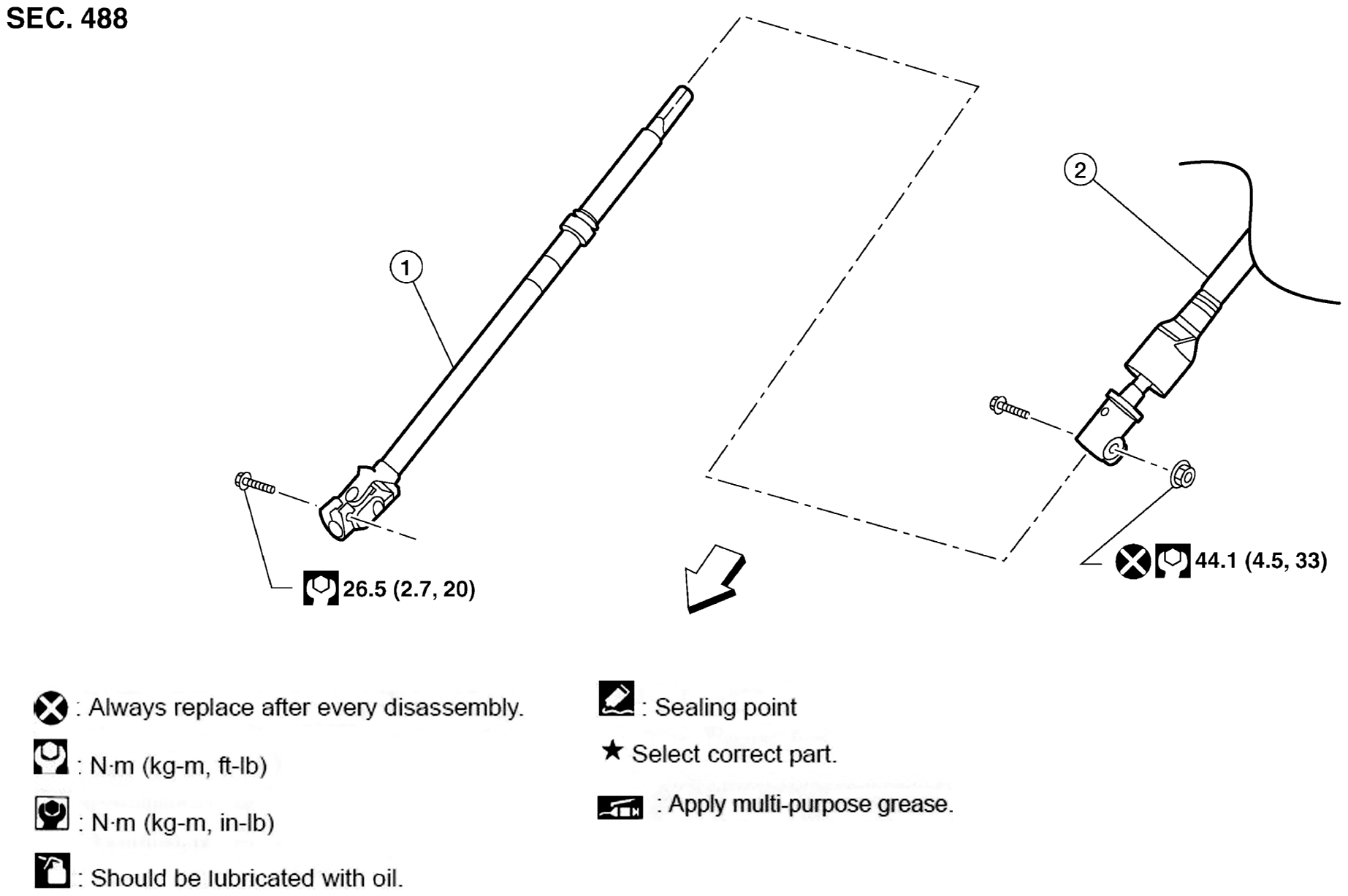

Fig 1: Lower Joint XD With Torque Specifications
GNSAWGIA0408ZZ-408Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Intermediate shaft ARROW Front

Non-XD Models

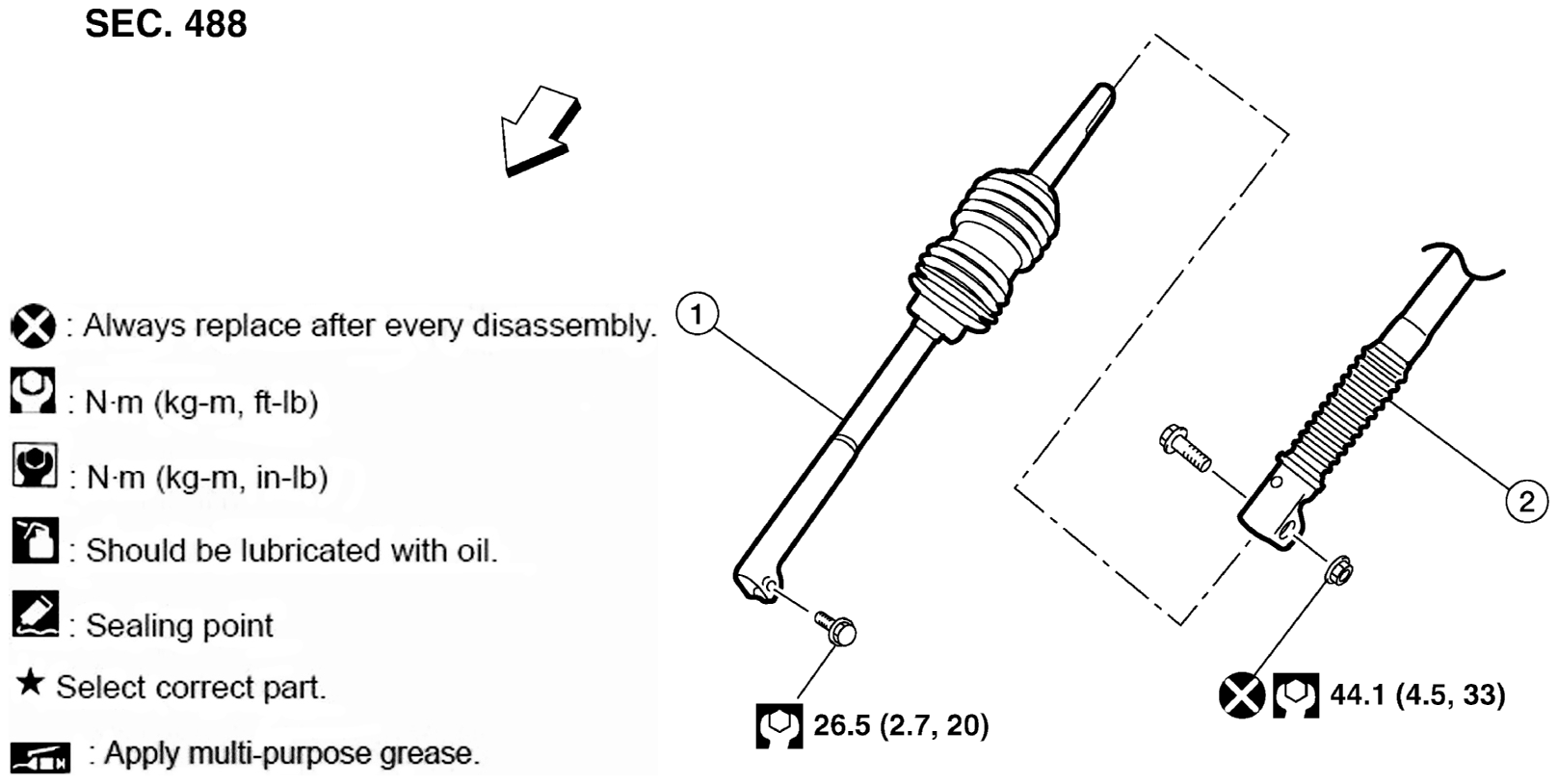

Fig 2: Lower Joint Except XD With Torque Specifications
GNSAWGIA0466ZZ-466Courtesy of NISSAN NORTH AMERICA, INC.
1. Lower joint 2. Intermediate shaft ARROW Front
