Exploded View

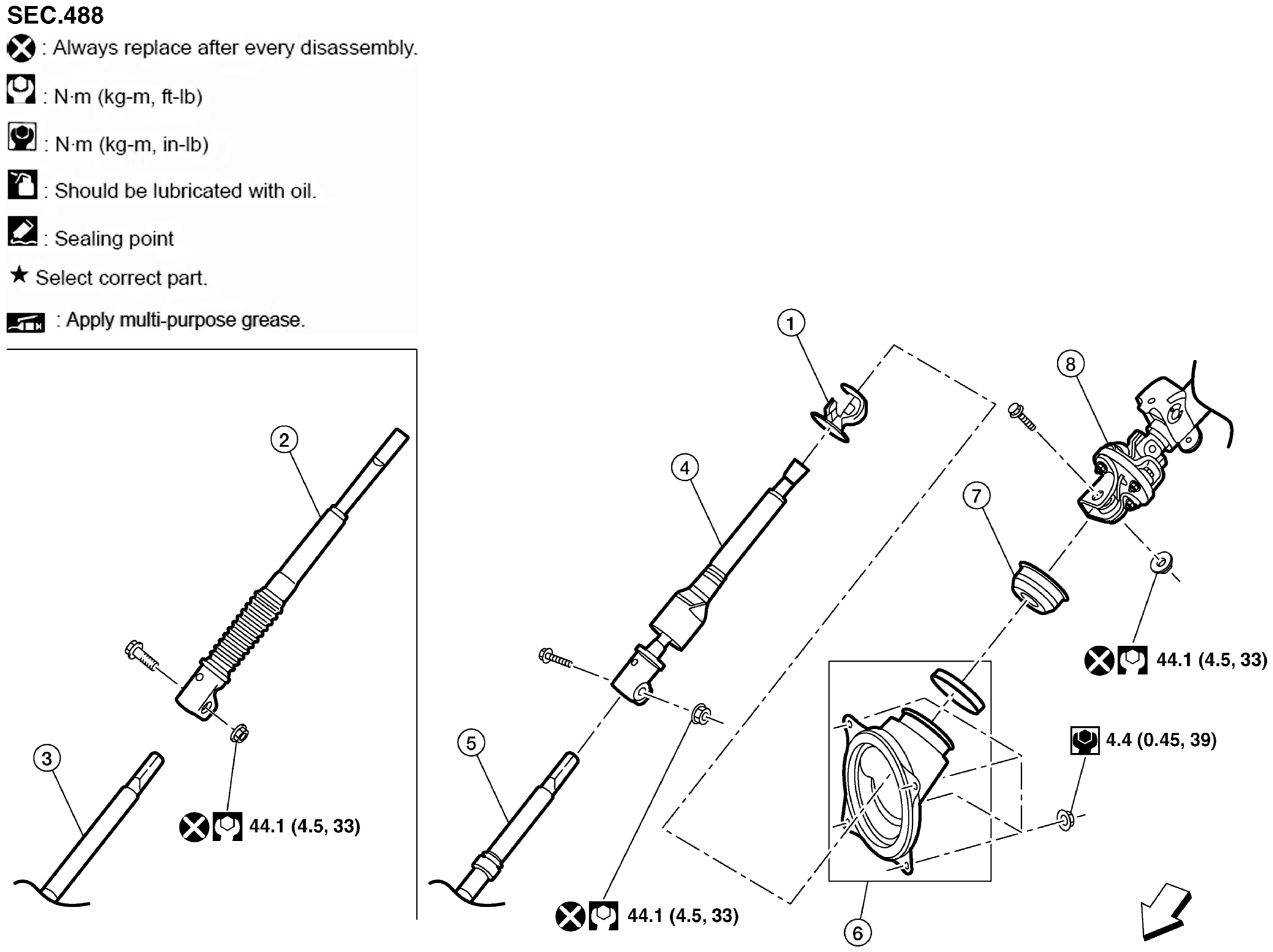

Fig 1: Intermediate Shaft With Torque Specifications
GNSAWGIA0476ZZ-476Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering Column Collar 2. Intermediate Shaft (Non-XD Models) 3. Lower Joint (Non-XD Models)
4. Intermediate Shaft (XD Models) 5. Lower Joint (XD Models) 6. Hole Cover And Clamp
7. Hole Cover Seal 8. Steering Column ARROW Front
