Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

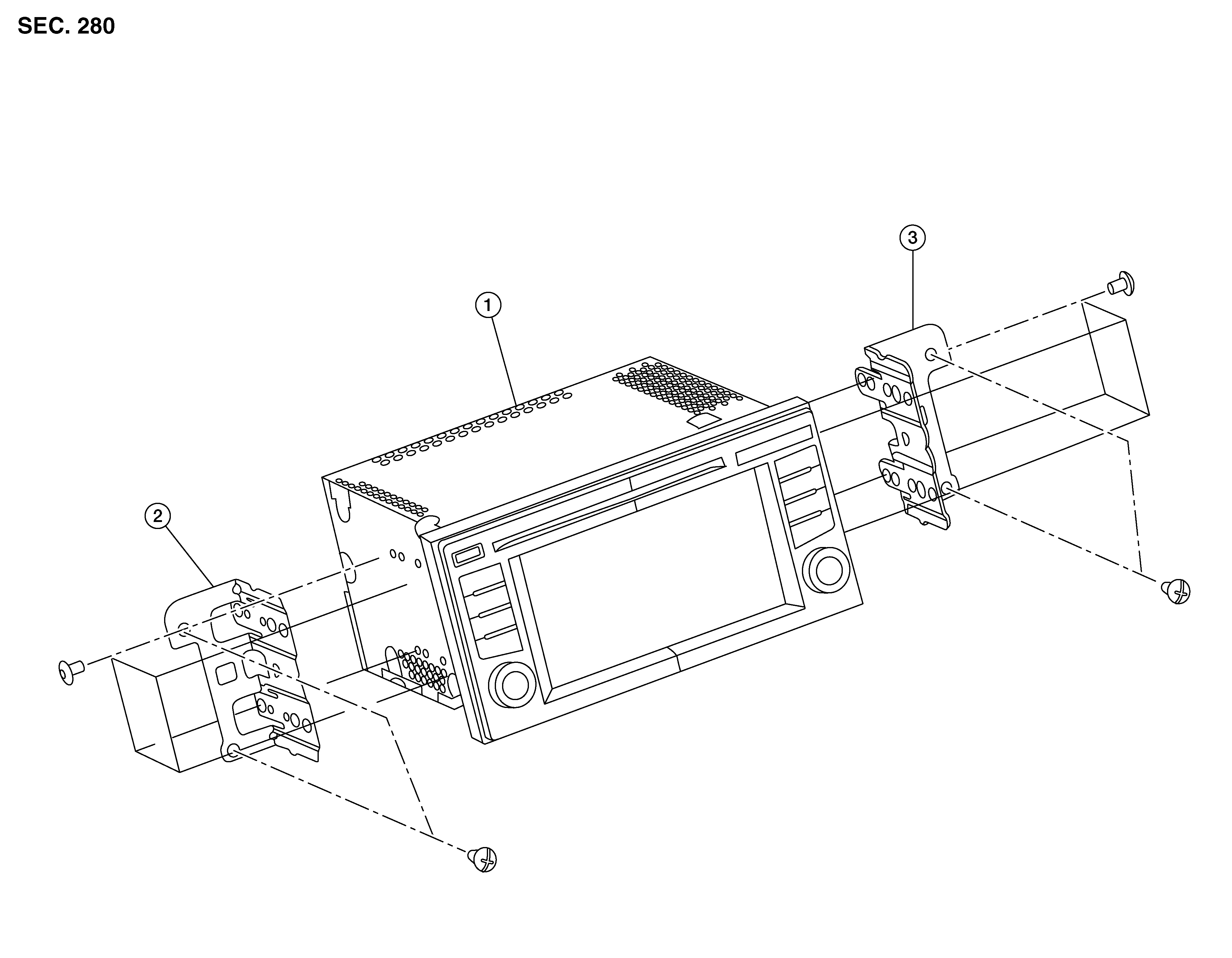

Fig 1: Exploded View Of AV Control Unit
GNSAWNIA3949ZZ-949Courtesy of NISSAN NORTH AMERICA, INC.
1. AV control unit 2. AV control unit bracket (LH) 3. AV control unit bracket (RH)
