Special Service Tools

NOTE: The actual shape of the tools may differ from those illustrated here.
SPECIAL SERVICE TOOLS

Tool number
(TechMate No.)
Tool name		 Description

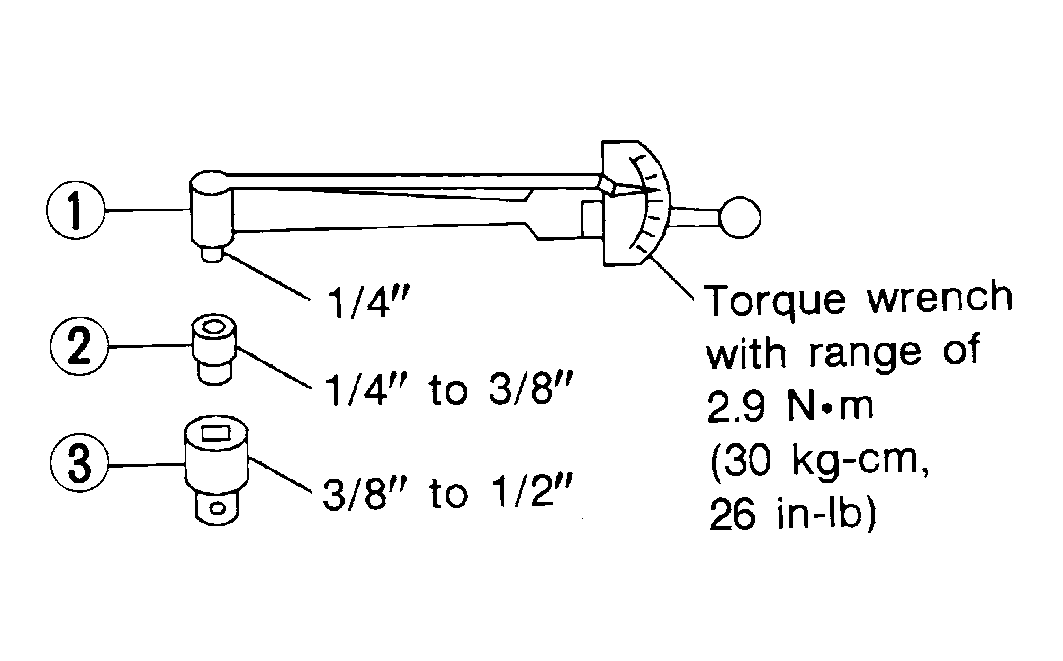

ST3127S000
(See J-25765-A)
Preload gauge
1. GG9103000
(J-25765-A)
Torque wrench
2. HT62940000
(-)
Socket adapter
3. HT62900000
(-)
Socket adapter
GNSS-NT541-541Courtesy of NISSAN NORTH AMERICA, INC.
 Inspection of rotating torque for ball joint
KV40107300
(J-51751)
Boot band crimping tool
GNSDB117820Courtesy of NISSAN NORTH AMERICA, INC.
 Installing boot band
-
(J-44372)
Spring gauge
GNSLST024-024Courtesy of NISSAN NORTH AMERICA, INC.
 Measure steering wheel turning force or rack sliding force
HT72520000
(J-25730-A)
Ball joint remover
GNSNT146-146Courtesy of NISSAN NORTH AMERICA, INC.
 Removing ball joint
