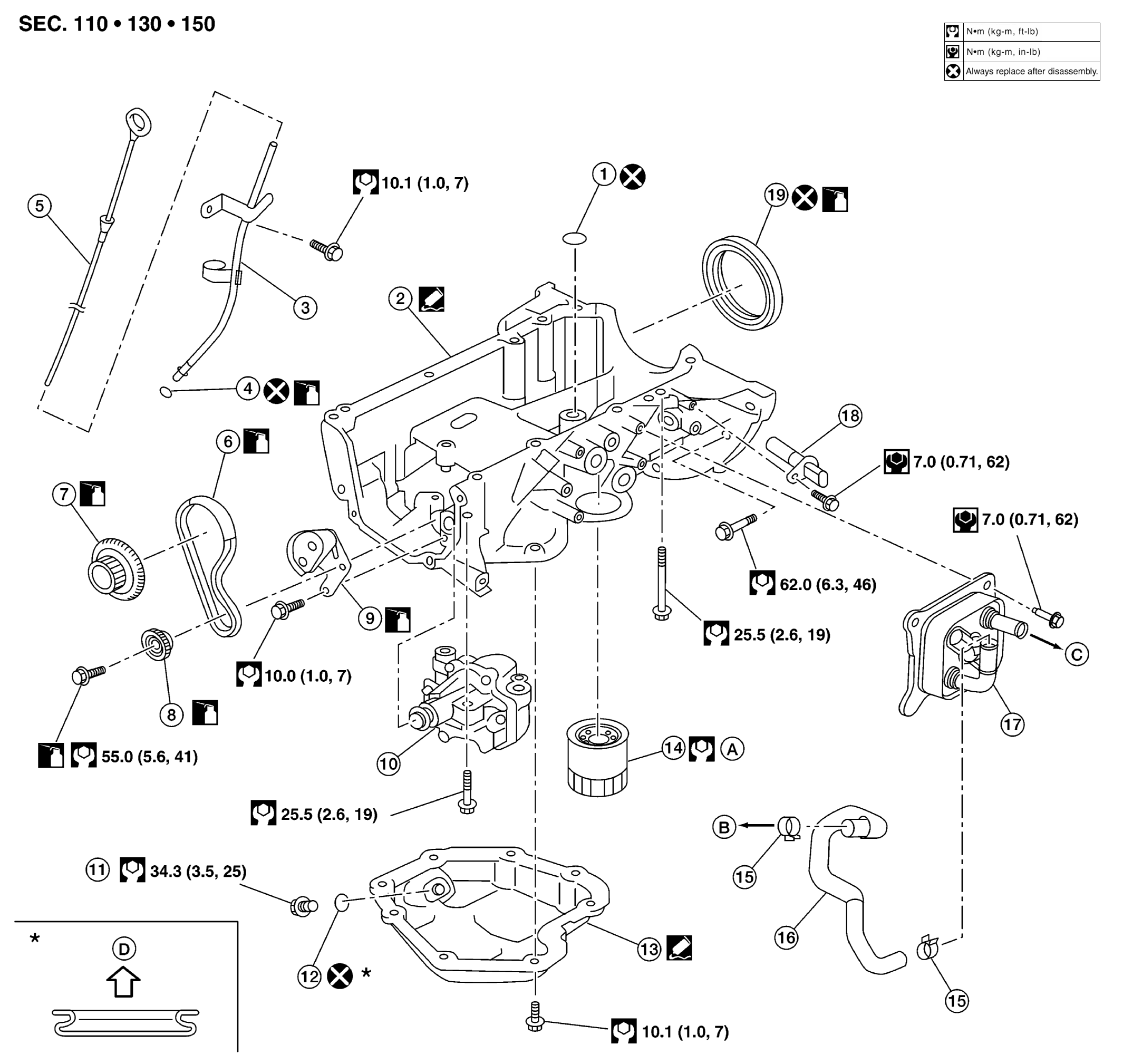

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | O-ring | 2. | Oil pan (upper) | 3. | Oil level gauge guide |
| 4. | O-ring | 5. | Oil level gauge | 6. | Oil pump drive chain |
| 7. | Crankshaft sprocket | 8. | Oil pump sprocket | 9. | Oil pump chain tensioner |
| 10. | Oil pump | 11. | Drain plug | 12. | Drain plug washer |
| 13. | Oil pan (lower) | 14. | Oil filter | 15. | Clamp |
| 16. | Water hose | 17. | Oil cooler | 18. | Crankshaft position sensor |
| 19. | Rear oil seal | A. | Refer to REMOVAL AND INSTALLATION | B. | To thermostat housing |
| C. | To thermostat housing (M/T models) To CVT oil warmer (CVT models) |
D. | Oil pan side |
