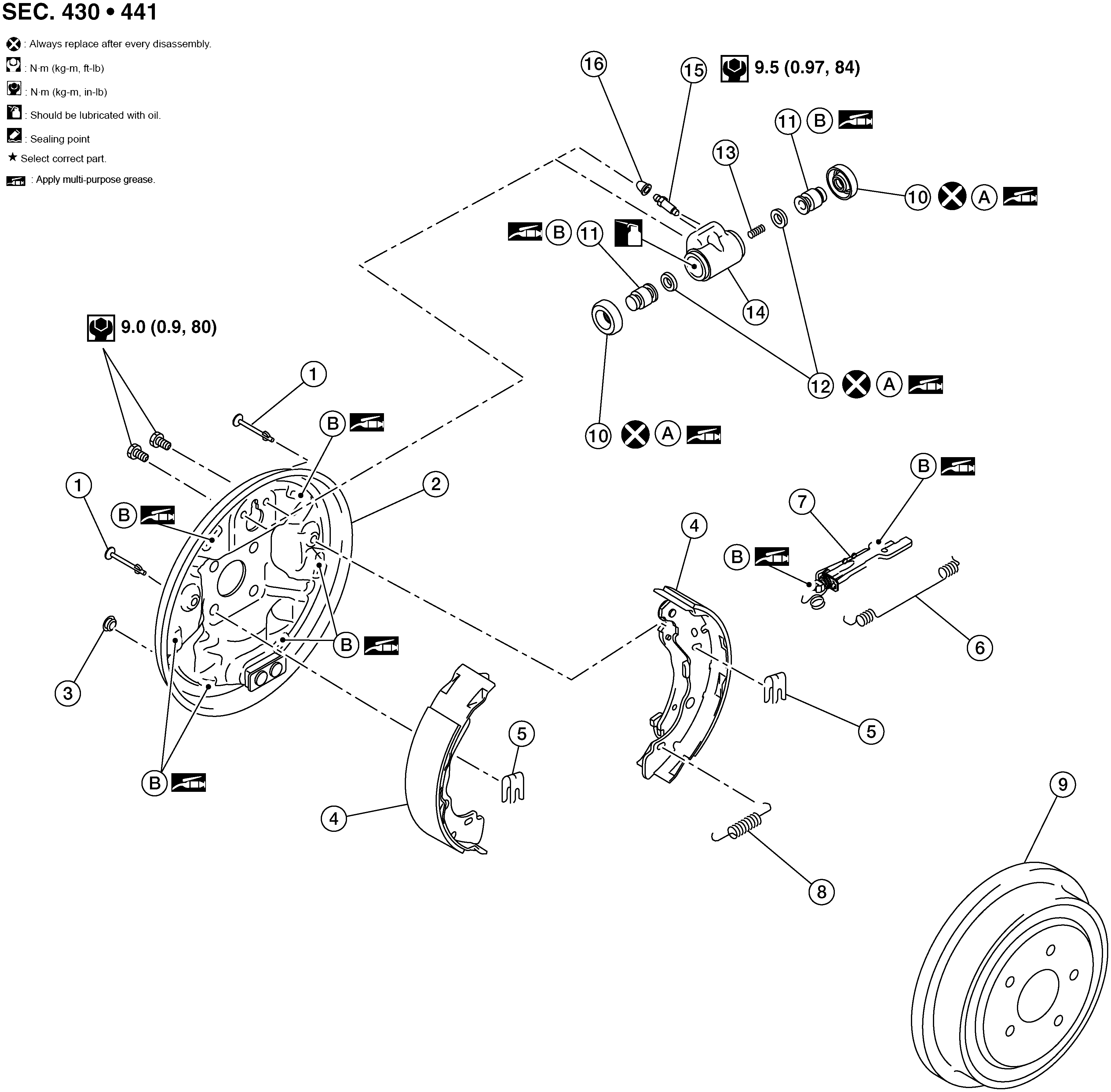

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Shoe hold pin | 2. | Back plate | 3. | Plug |
| 4. | Brake shoe | 5. | Retainer | 6. | Upper spring |
| 7. | Adjuster | 8. | Return spring | 9. | Brake drum |
| 10. | Boot | 11. | Piston | 12. | Piston cup |
| 13. | Spring | 14. | Wheel cylinder | 15. | Bleeder valve |
| 16. | Cap | A. | Apply rubber grease | B. | Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease |
| Apply brake fluid |
